# KOI固件更新教學

開發團隊會不定時為KOI推出更新固件，以改進KOI AI鏡頭的功能。

用家可到這裏查看最新的固件版本, 以下為更新KOI 固件的方法。

(建議在更新固件前, 前先把現版本的固件也保存下來, 若在更新固件後遇到不良情況, 可回復到前一版本的固件)

### **重刷固件方法**[¶](broken://pages/eVSFGwlAz9BXrzZBXkc3)

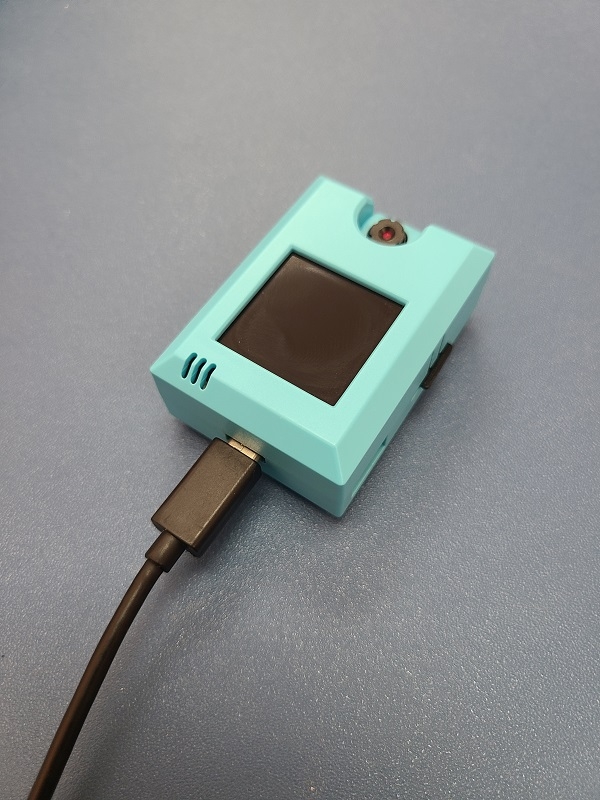

將KOI插入電腦的USB接口。

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/usb.jpg" alt=""><figcaption></figcaption></figure>

更新固件需要預備2樣檔案，**刷件程式**和**固件檔案**, 點擊以下連結下截。

[下載刷件程式](https://dl.sipeed.com/MAIX/tools/kflash_gui/kflash_gui_v1.6.5)

[固件檔案下載](/airelated/koi/update/updatehist.md)

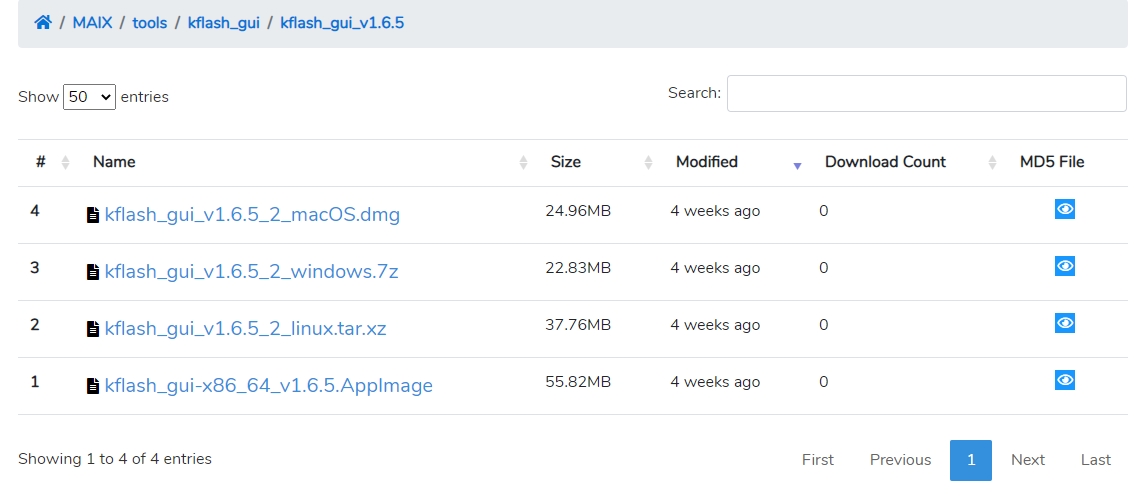

**1. 按照電腦的作業系統下載刷件程式。**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/16.png" alt=""><figcaption></figcaption></figure>

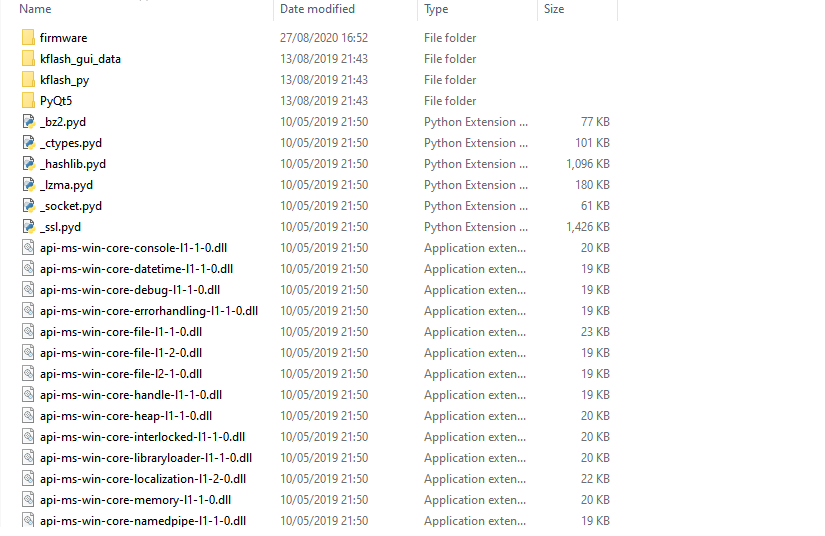

**2. 將檔案解壓縮。**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/21.png" alt=""><figcaption></figcaption></figure>

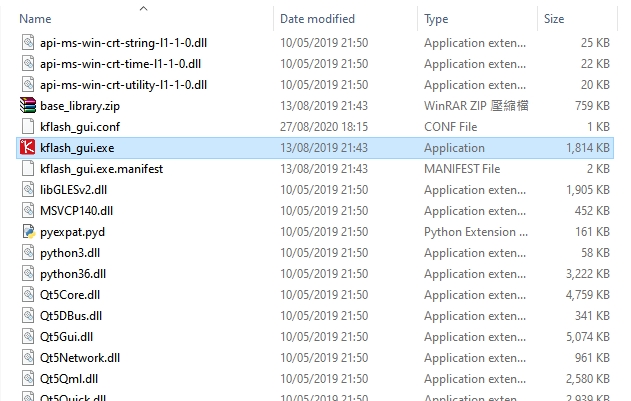

**3. 打開kflash\_gui.exe。**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/32.png" alt=""><figcaption></figcaption></figure>

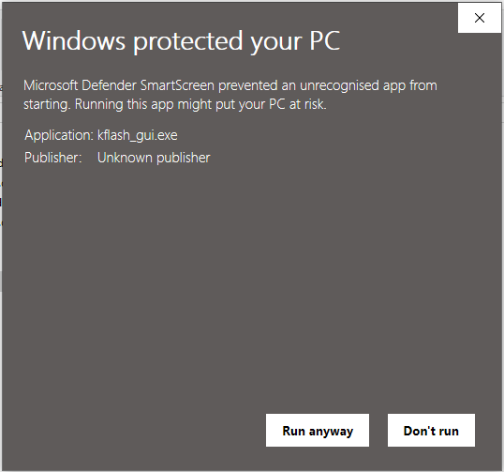

**4. 請允許運行。**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/42.png" alt=""><figcaption></figcaption></figure>

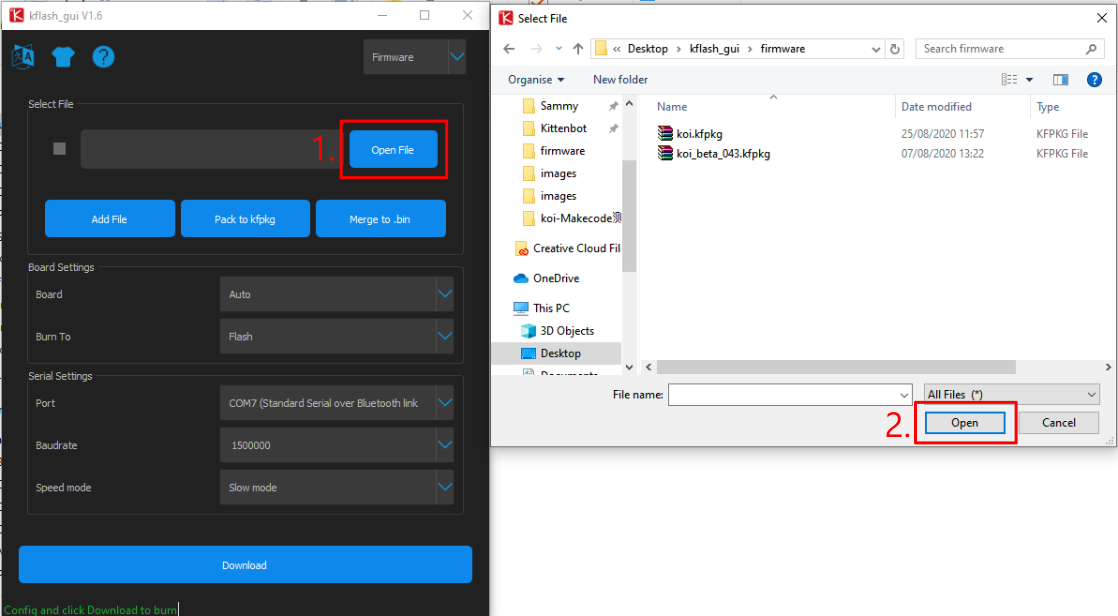

**5. 打開固件檔案。**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/51.png" alt=""><figcaption></figcaption></figure>

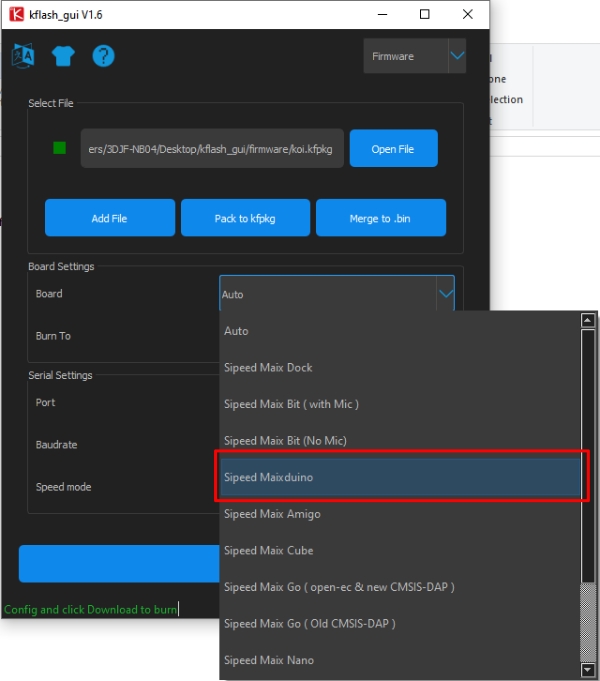

**6. 在Board選擇Sipeed Maixduino。**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/6.png" alt=""><figcaption></figcaption></figure>

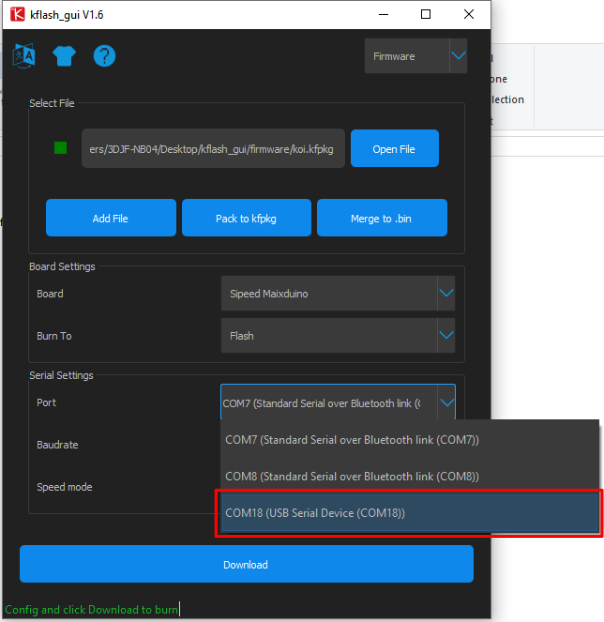

**7. 在Port選擇連接KOI的接口。**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/71.png" alt=""><figcaption></figcaption></figure>

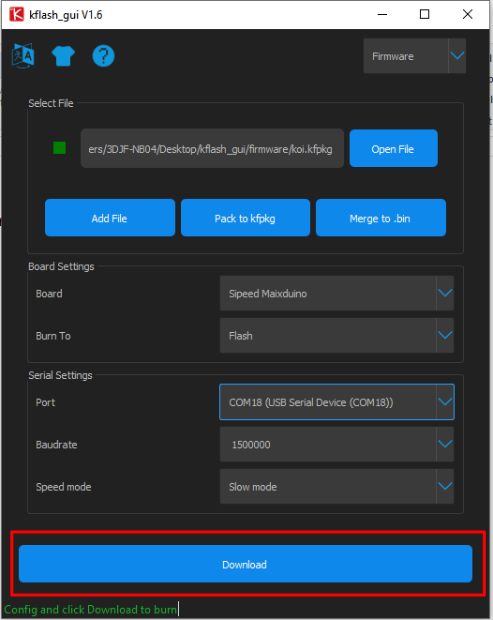

**8. 其他設定可以使用預設值，按下載。**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/81.png" alt=""><figcaption></figcaption></figure>

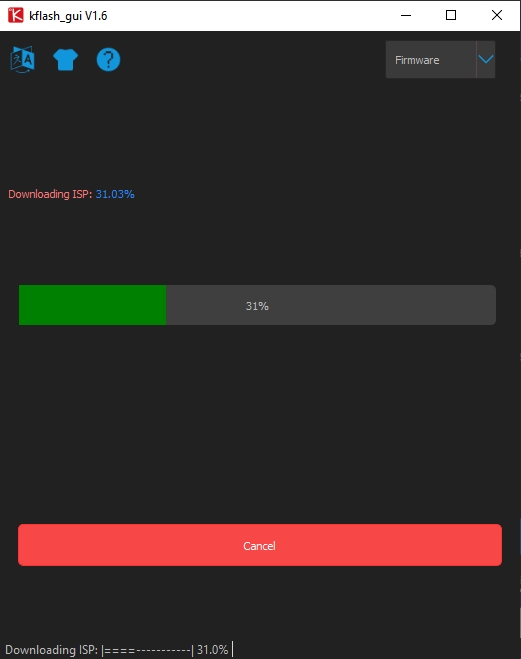

**9. 耐心等待下載完成。**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/91.png" alt=""><figcaption></figcaption></figure>

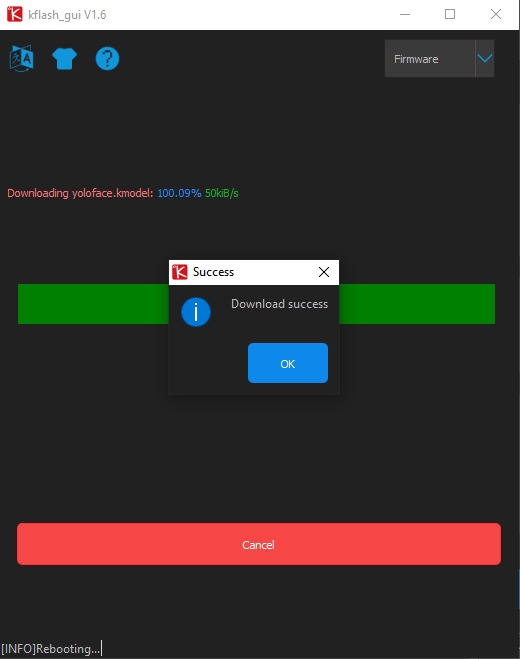

**10. 下載完成！**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/102.png" alt=""><figcaption></figcaption></figure>

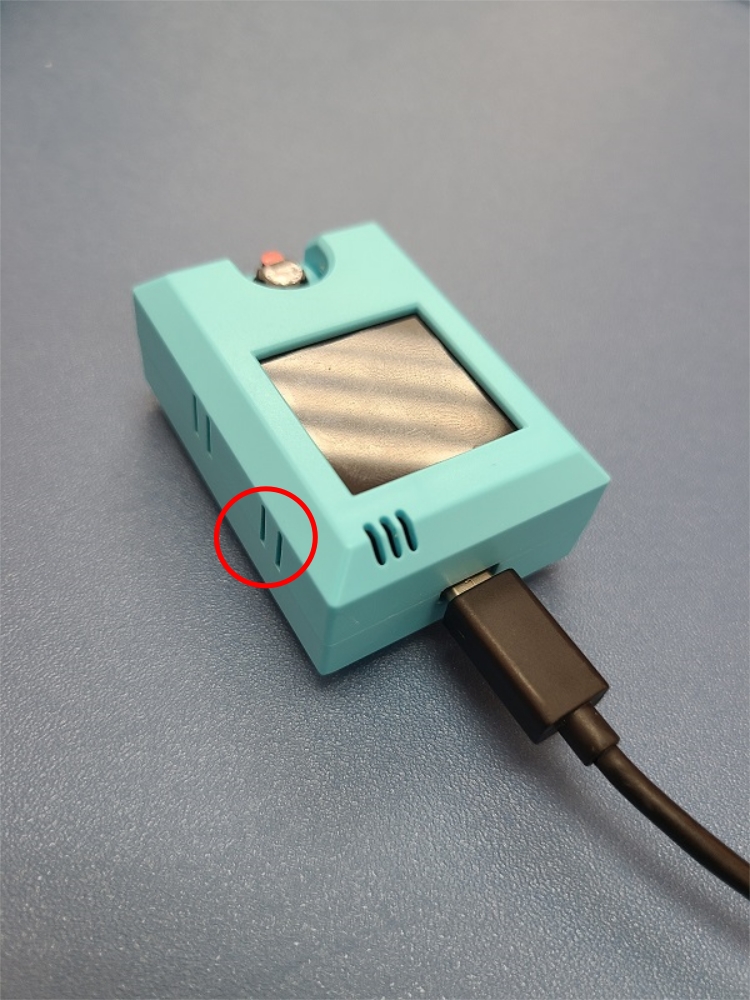

**11. 然後按Reset重啟KOI。**

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/reset.jpg" alt=""><figcaption></figcaption></figure>


---
