# FM收音機模組

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio1.jpg)

這是一隻收音機模組，它可以接收FM電台訊號。

它使用標準的3.5mm插頭，可以使用3.5mm的耳機或揚聲器作輸出。它亦裝有兼容樂高的積木孔。

### 產品參數

* 工作電壓：2.5V\~5V
* 類型: I2C 模組
* 接口：4pin防反插接口
* 有效頻率：76MHz\~108MHz
* 天線接口：3.5mm
* 輸出接口：3.5mm
* 尺寸：43mm x 43mm x 24mm

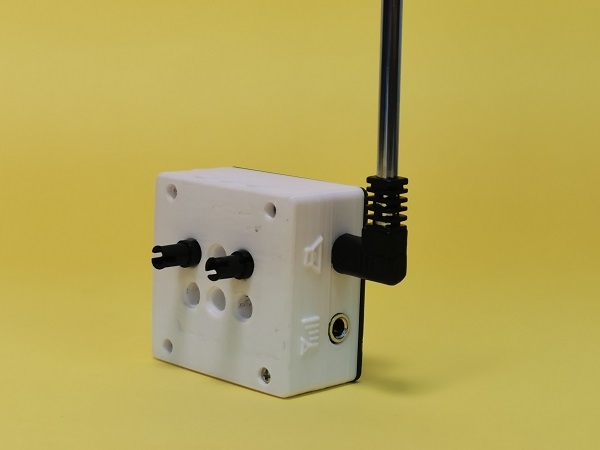

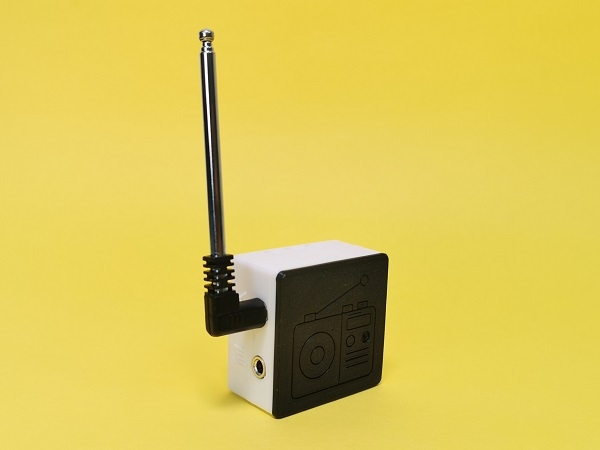

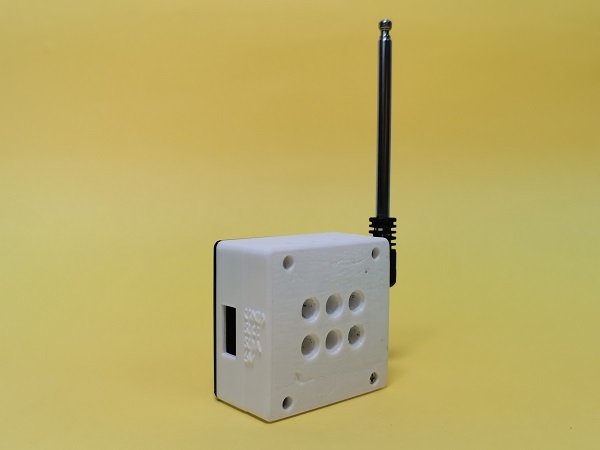

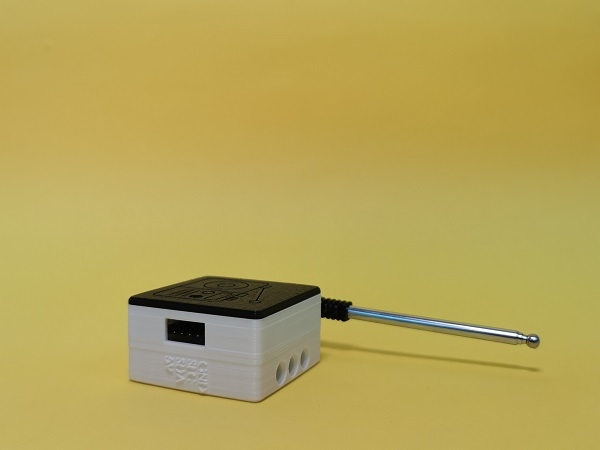

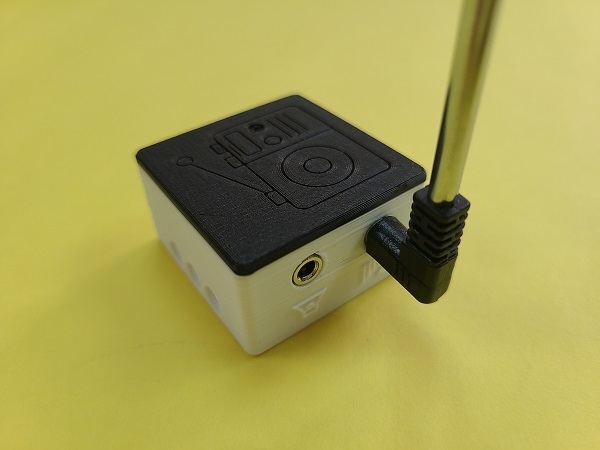

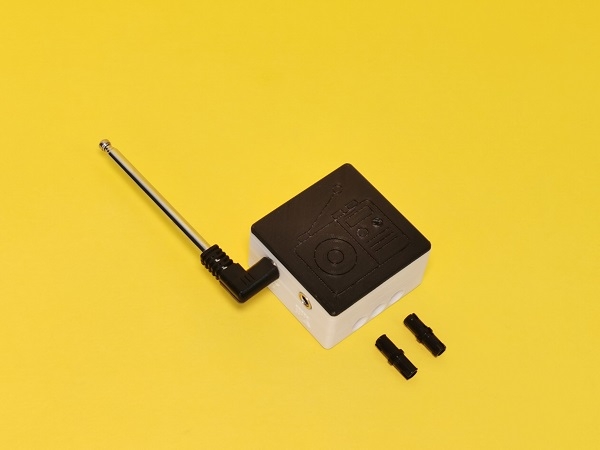

### 產品外觀

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio8.jpg)

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio7.jpg)

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio9.jpg)

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio10.jpg)

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio11.jpg)

### 接線教學

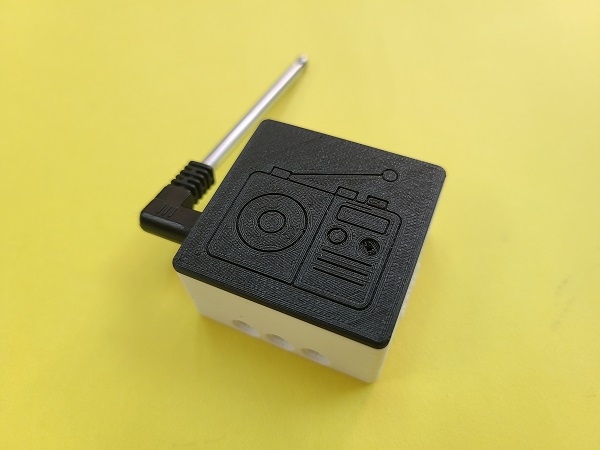

將收音機的天線插入天線接口。將耳機或揚聲器插在輸出接口。

```
此模組只附帶天線，耳機或揚聲器需要自備。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio2.jpg)

### Robotbit

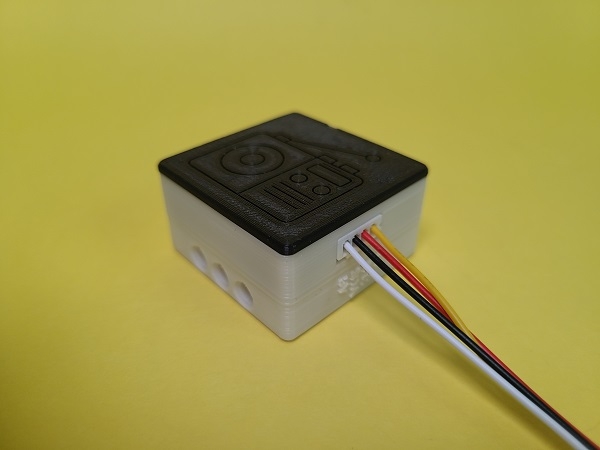

將4pin杜邦線插到模組防反插接口。

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio3.jpg)

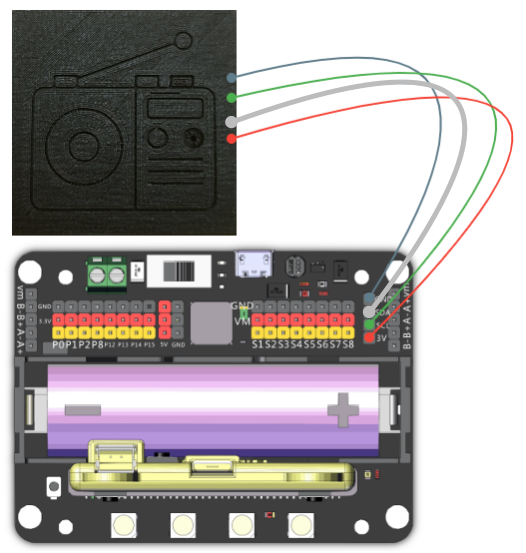

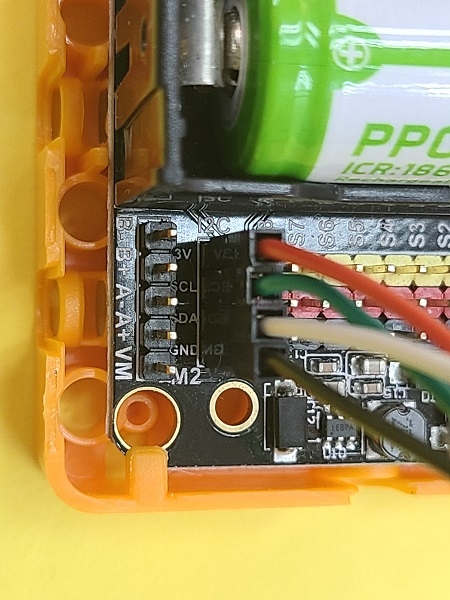

將FM收音機模組連接到Robotbit的i2c接口。

```
白色接SCL，綠色接SDA。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio5.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio6.jpg)

### Armourbit

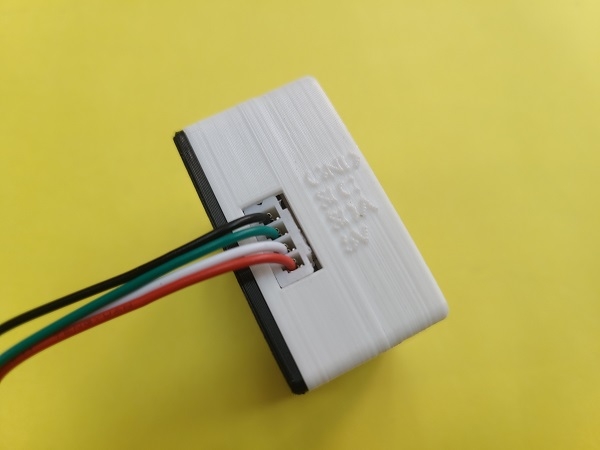

將4pin線插到摸組接口。

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio12.jpg)

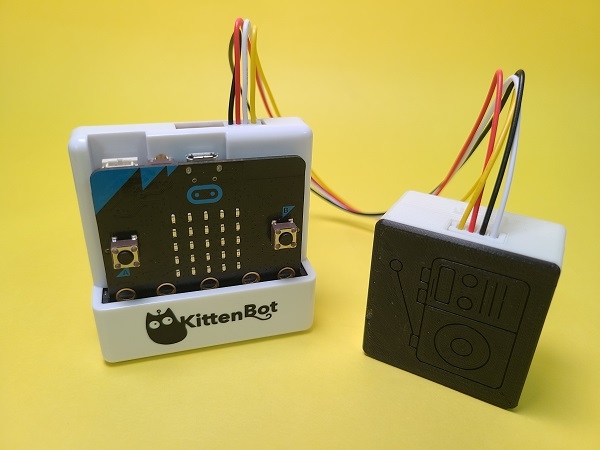

用4pin線將模組連接到Armourbit。

![](https://kittenbothk.readthedocs.io/en/latest/_images/kittenRadio13.jpg)

### MakeCode編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/mcbanner12.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/acbanner.png)

#### 此模組可供Microbit和Meowbit使用。

#### 加載收音機插件：<https://github.com/kittenbothk/pxt-KittenRadio>

#### [詳細方法](/programmingplatforms/makecode/kittenbotandmakecode.md)

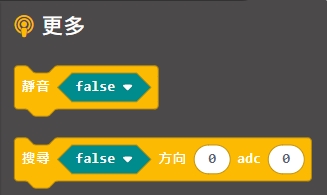

#### 收音機積木塊：

![](https://kittenbothk.readthedocs.io/en/latest/_images/radioblocks1.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/radioblocks2.png)

**Microbit收音機編程：**

{% embed url="<https://makecode.microbit.org/_7toH1mcCwcyb>" %}

[參考程式網址](https://makecode.microbit.org/_7toH1mcCwcyb)

**Meowbit收音機編程：**

{% embed url="<https://makecode.com/_YYiLzY5t5X2s>" %}

[參考程式網址](https://makecode.com/_YYiLzY5t5X2s)

### 示範短片

{% embed url="<https://youtu.be/ZKruHJ0GGoM>" %}

{% embed url="<https://www.youtube.com/watch?v=771JRYQIv0o>" %}

### 插件版本與更新

插件可能會不定時推出更新，改進功能。亦有時候我們可能需要轉用舊版插件才可使用某些功能。

詳情請參考: [Makecode插件版本更換](/programmingplatforms/makecode/makecodeextupdate.md)


---
