# Geekservo風扇

Geekservo風扇 (HKBA8021A)

![](https://kittenbothk.readthedocs.io/en/latest/_images/fan3.png)

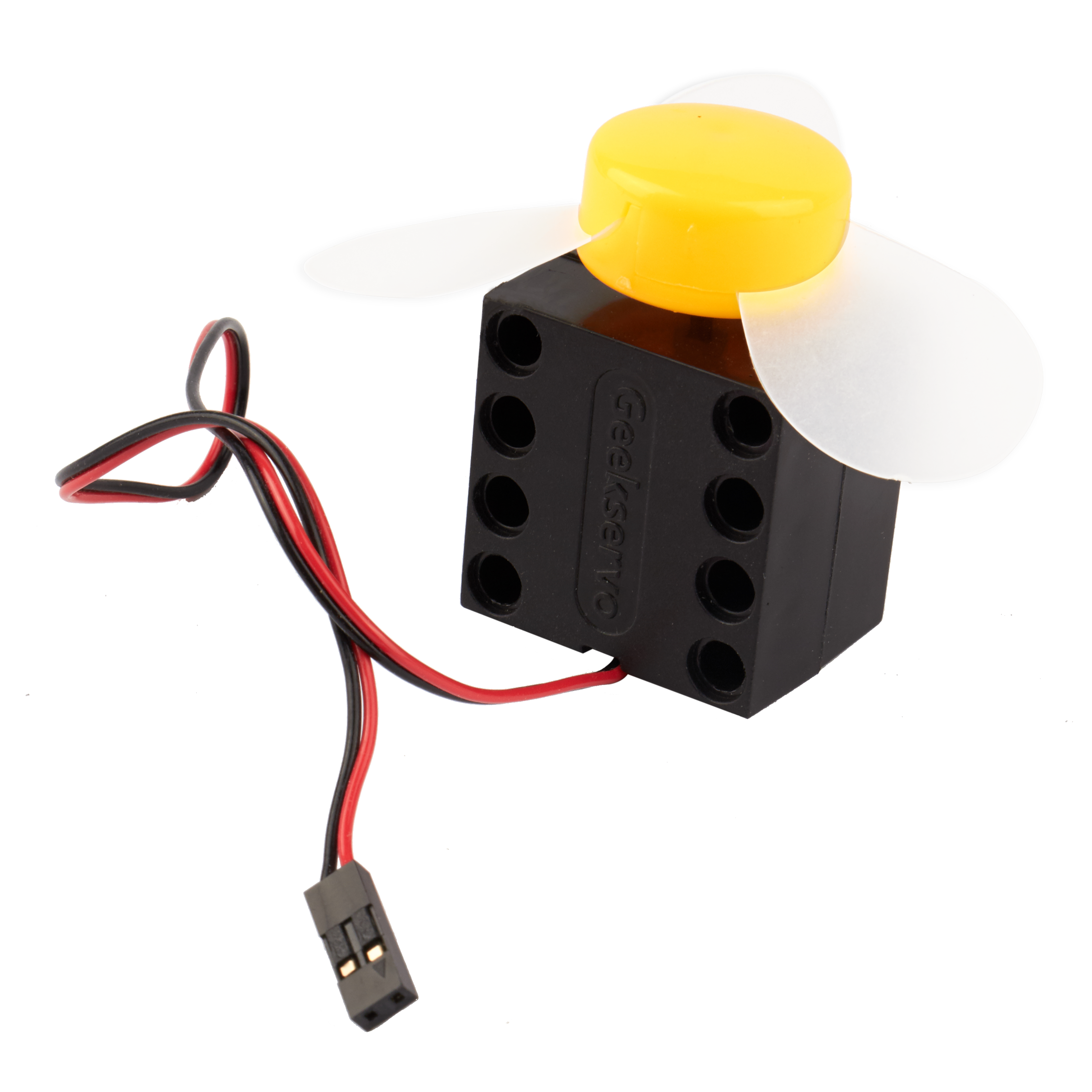

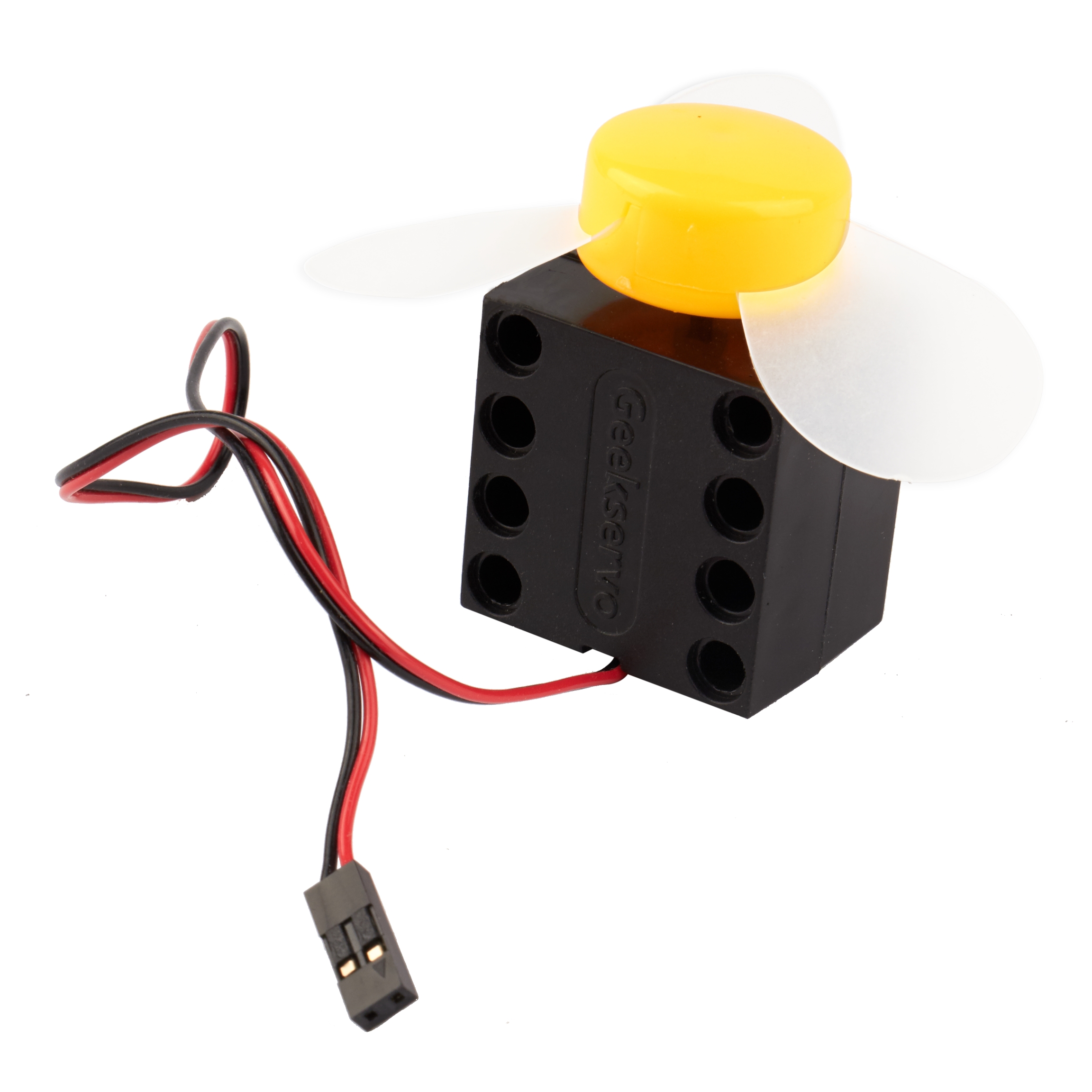

這是一個兼容樂高孔的風扇模組，它的風力強勁，適合製作滅火、降溫、除塵等項目創作。

### 產品參數

* 工作電壓：3.3V\~6V
* 額定電壓：4.8V
* 額定電流：130mA
* 最高轉速：3000rpm
* 接口：紅黑線，防反插接口
* 尺寸：32x32x24mm

### 接線教學

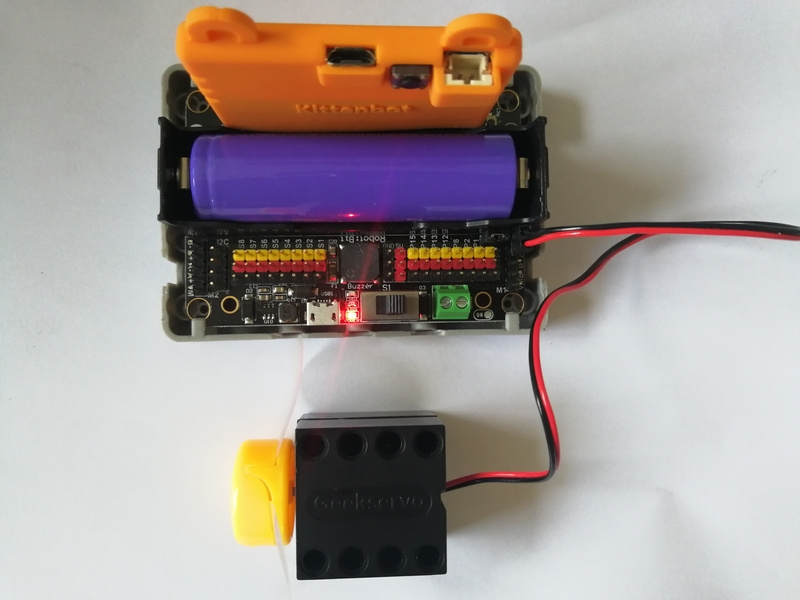

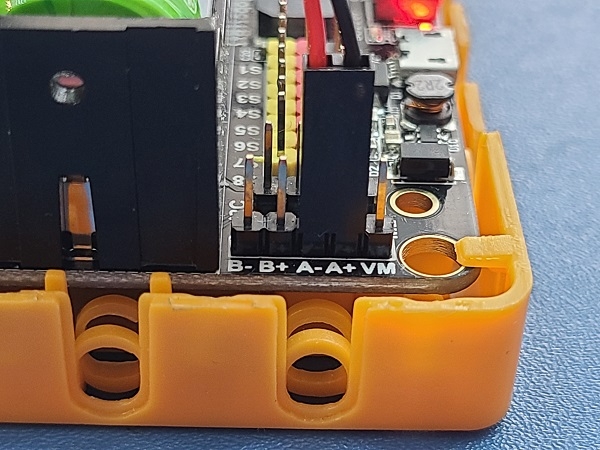

風扇模組和電機一樣，將風扇連接在Robotbit或者Armourbit的電機接口就可以了。

<figure><img src="/files/FtJ48re3jnEPG7hmJWiB" alt=""><figcaption></figcaption></figure>

![](https://kittenbothk.readthedocs.io/en/latest/_images/fan1.jpg)

![](https://kittenbothk.readthedocs.io/en/latest/_images/2kmotorConRB1.jpg)

```
沒有嚴格正負極之分，插的方向只會影響電機轉動方向。
```

### MakeCode編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/mcbanner12.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/acbanner.png)

#### 此模組可供Microbit和Meowbit使用。

#### ArmourBit

#### 加載PowerBrick插件：<https://github.com/KittenBot/pxt-powerbrick>

#### [詳細方法](/programmingplatforms/makecode/kittenbotandmakecode.md)

#### 電機積木塊:

![](https://kittenbothk.readthedocs.io/en/latest/_images/motorblocks.png)

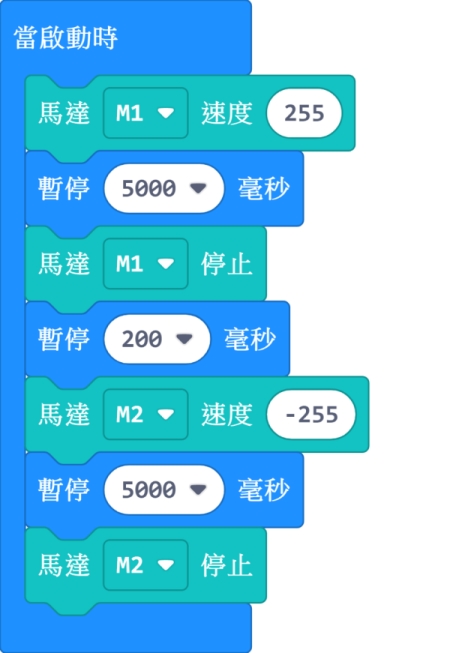

### 電機編程

![](https://kittenbothk.readthedocs.io/en/latest/_images/motor.png)

[參考程式下載](https://bit.ly/PowerbrickM11_01Hex)

[參考程式網址](https://makecode.microbit.org/_RYHivyayYL4q)

#### Robotbit

#### 加載robotbit插件：<https://github.com/KittenBot/pxt-robotbit>

#### [詳細方法](/programmingplatforms/makecode/kittenbotandmakecode.md)

#### 電機積木塊:

![](https://kittenbothk.readthedocs.io/en/latest/_images/2kmotorblocks_rb.png)

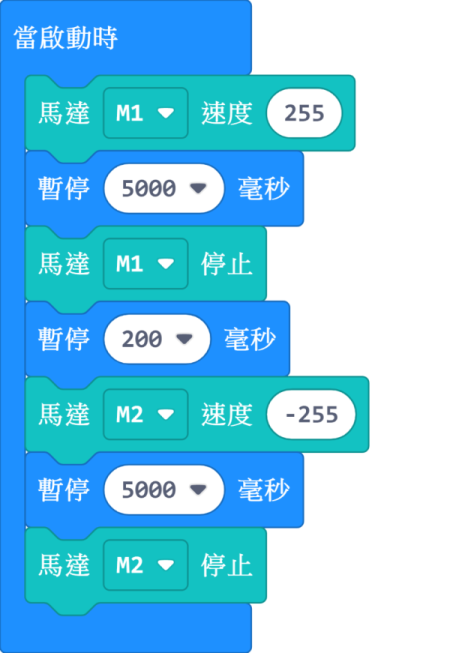

#### 電機編程

![](https://kittenbothk.readthedocs.io/en/latest/_images/2kmotorcode_rb.png)

[參考程式網址](https://makecode.microbit.org/_33HMywgx9H97q)

#### Meowbit:

#### 加載robotbit插件：<https://github.com/KittenBot/meow-robotbit>

#### 電機積木塊:

![](https://kittenbothk.readthedocs.io/en/latest/_images/motorblocks.png)

### 電機編程

![](https://kittenbothk.readthedocs.io/en/latest/_images/2kmotorcode_meow.png)

[參考程式網址](https://makecode.com/_2z0C8v6XAC5y)

### 插件版本與更新

插件可能會不定時推出更新，改進功能。亦有時候我們可能需要轉用舊版插件才可使用某些功能。

詳情請參考: [Makecode插件版本更換](/programmingplatforms/makecode/makecodeextupdate.md)

### KittenBlock編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/kbbanner6.png)

#### 這教學使用Microbit作例子，每款擴展板/主控板的使用教學請參考相應頁面。

#### Armourbit

***

#### 加載PowerBrick插件

在左上角小貓logo旁邊的硬件欄選擇PowerBrick，加載Microbit與Powerbrick插件。

![](https://kittenbothk.readthedocs.io/en/latest/_images/addextension2.png)

#### 電機積木塊

![](https://kittenbothk.readthedocs.io/en/latest/_images/kbmotorblocks_armourbit.png)

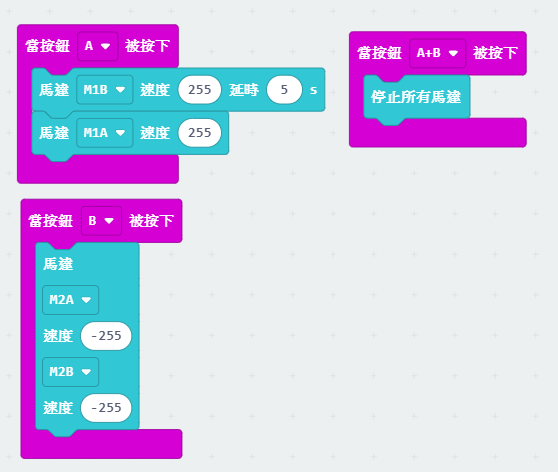

#### 電機編程

![](https://kittenbothk.readthedocs.io/en/latest/_images/9gmotor_armourbit_kb_code.png)

#### Robotbit

#### 加載Robotbit插件

在左上角小貓logo旁邊的硬件欄選擇Microbit，加載Microbit與Robotbit插件。

![](https://kittenbothk.readthedocs.io/en/latest/_images/addRB1.png)

#### 電機積木塊

![](https://kittenbothk.readthedocs.io/en/latest/_images/kbmotorblocks.png)

#### 電機編程

![](https://kittenbothk.readthedocs.io/en/latest/_images/9gmotor_robotbit_kb_code.png)

### FAQ

1：為什麼我點擊積木塊沒有反應呢？

首先確保已經連接好Microbit，然後上載韌體再試一試。


---
