# 光度感應器模組

![](https://kittenbothk.readthedocs.io/en/latest/_images/light2.png)

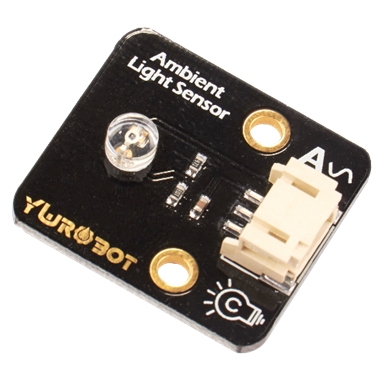

這是一隻可以感應環境光度的模組，它返回的數值是類比形式。

數值範圍由0-1023，數值越大代表環境光度越高。

### 產品參數

* 工作電壓：3.3V\~5V
* 類型：類比模組
* 接口：3Pin防反插

### 接線教學

```
由於這是類比模組，所以只能使用robotbit的PIN0-2。（使用PIN0的話需要拔除蜂鳴器跳線帽）
```

#### Robotbit Shield

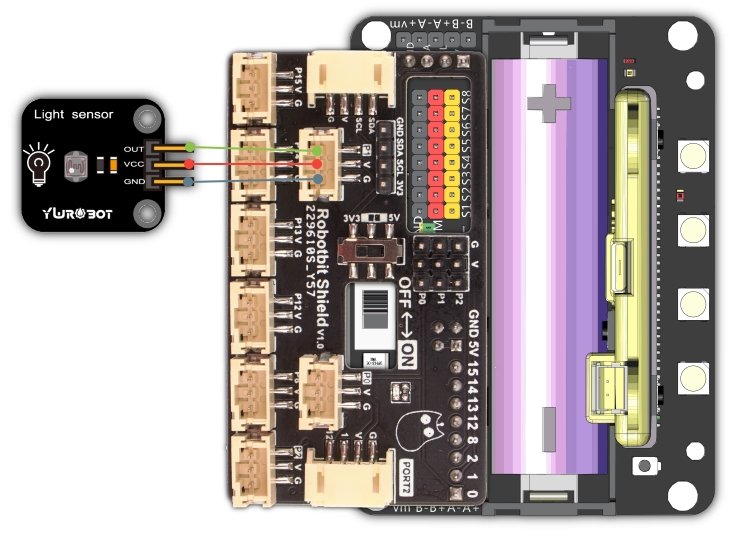

將光度感應器連接到Robotbit Shield的3PIN接口。

![](https://kittenbothk.readthedocs.io/en/latest/_images/light_wire2.png)

#### Robotbit

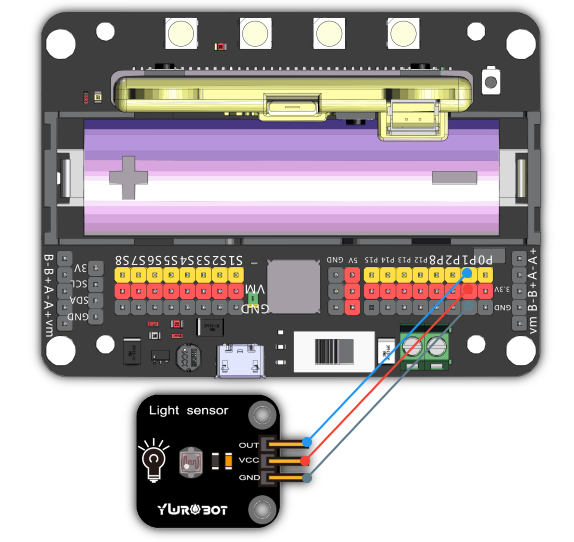

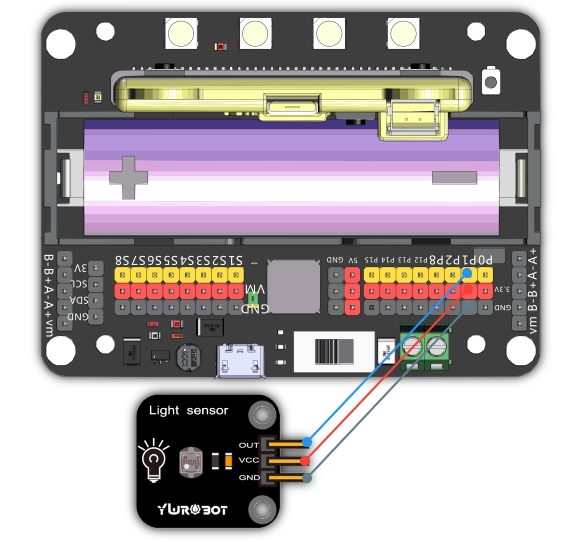

將光度感應器連接到Robotbit的針線和3V接口。

![](https://kittenbothk.readthedocs.io/en/latest/_images/light_wire1.png)

### MakeCode編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/mcbanner14.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/acbanner1.png)

#### 此模組可供Microbit和Meowbit使用。

**讀取環境光度數值編程**

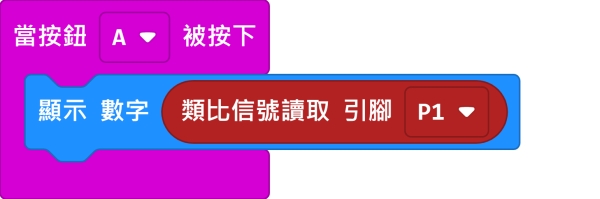

#### Microbit:

![](https://kittenbothk.readthedocs.io/en/latest/_images/poten_code.png)

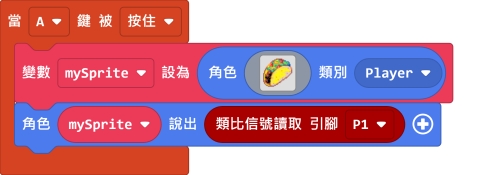

#### Meowbit:

![](https://kittenbothk.readthedocs.io/en/latest/_images/poten_codeMeow.png)

### KittenBlock編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/kbbanner8.png)

#### 加載Robotbit插件

![](https://kittenbothk.readthedocs.io/en/latest/_images/addRB2.png)

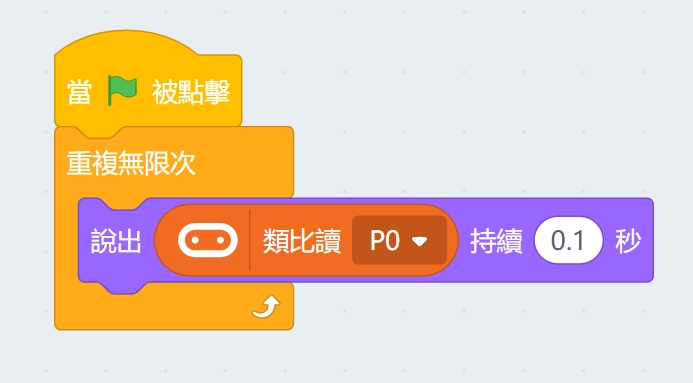

**讀取環境光度數值編程**

![](https://kittenbothk.readthedocs.io/en/latest/_images/poten_codekb.png)

### Mu Editor編程教學

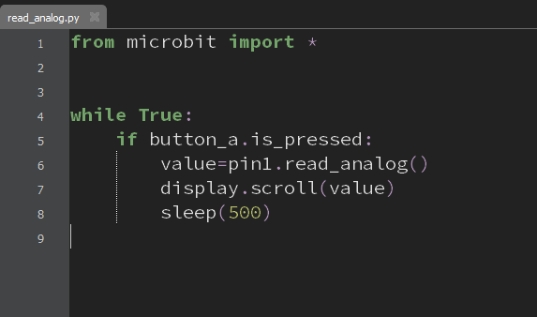

#### 讀取環境光度數值編程

![](https://kittenbothk.readthedocs.io/en/latest/_images/poten_codemu.png)


---
