# 非接觸式紅外線測溫魔塊

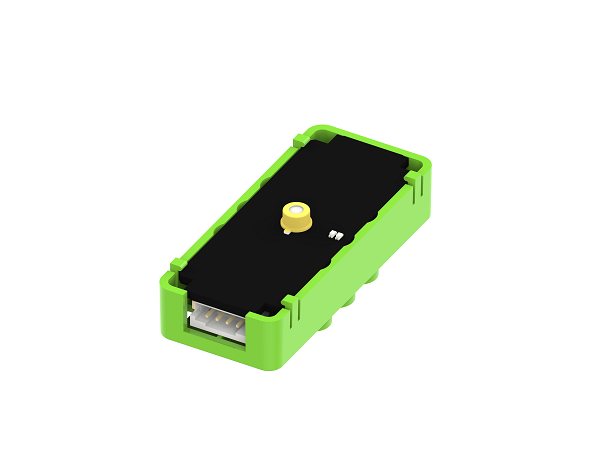

非接觸式紅外線測溫魔塊 (HKBM6002A)

![](https://kittenbothk.readthedocs.io/en/latest/_images/image--003.png)

這是一個非接觸式紅外線測溫魔塊，它可以偵測環境或人體的溫度。

### 產品參數

* 工作電壓：3.3V\~5V
* 型號：MRT-311
* 工作溫度：-30°C\~100°C
* 感測面積：0.35x0.35mm

### 接線教學

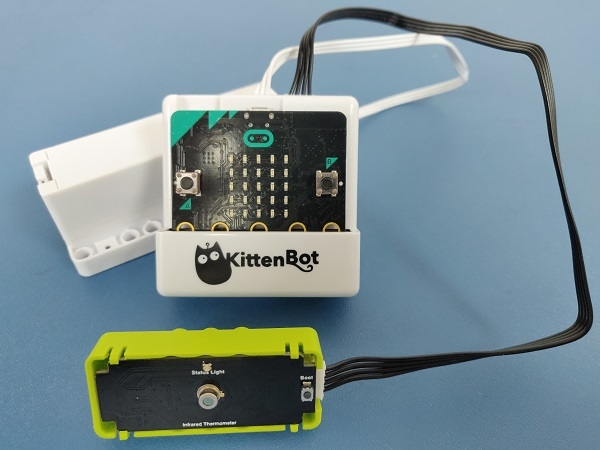

將紅外線測溫魔塊用4pin排線連接至Armourbit的I2C接口。

![](https://kittenbothk.readthedocs.io/en/latest/_images/infraCon.jpg)

### MakeCode編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/mcbanner12.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/acbanner.png)

#### 加載PowerBrick插件：<https://github.com/KittenBot/pxt-powerbrick>

#### [詳細方法](/programmingplatforms/makecode/kittenbotandmakecode.md)

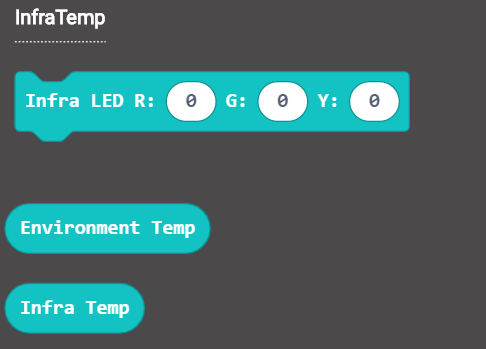

#### 紅外線測溫積木塊：

![](https://kittenbothk.readthedocs.io/en/latest/_images/infratempblocks.png)

#### 紅外線測溫魔塊編程

**測溫編程：**

{% embed url="<https://makecode.microbit.org/_1EDarvXwJ3bA>" %}

[參考程式網址](https://makecode.microbit.org/_1EDarvXwJ3bA)

**LED編程：**

{% embed url="<https://makecode.microbit.org/_2F4YLsCpF9fd>" %}

[參考程式網址](https://makecode.microbit.org/_2F4YLsCpF9fd)

### 插件版本與更新

PowerBrick插件可能會不定時推出更新，改進功能。亦有時候我們可能需要轉用舊版插件才可使用某些功能。

詳情請參考: [Makecode插件版本更換](/programmingplatforms/makecode/makecodeextupdate.md)


---
