# Sugar二期 蜂鳴器模組

![](https://kittenbothk.readthedocs.io/en/latest/_images/buzzer_render.png)

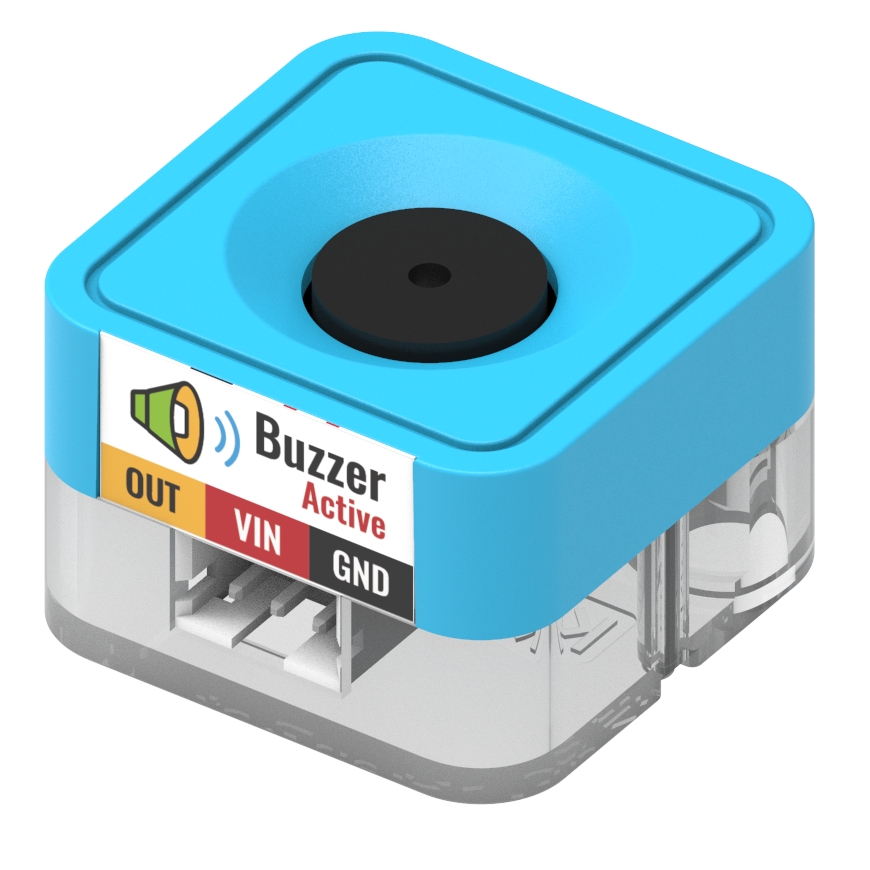

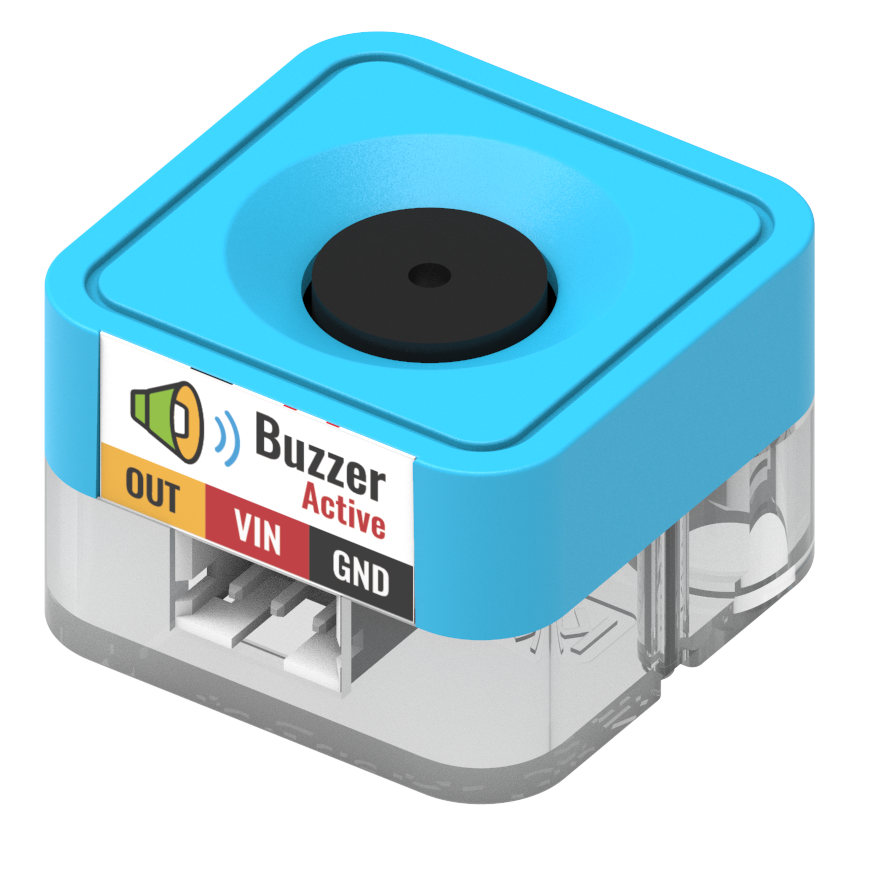

這是一個蜂鳴器模組，可以為Microbit V1+Robotbit EDU的用家補回蜂鳴器的功能。

### 產品參數

類型：Digital 數位模組

### 產品接線

#### Robotbit Edu

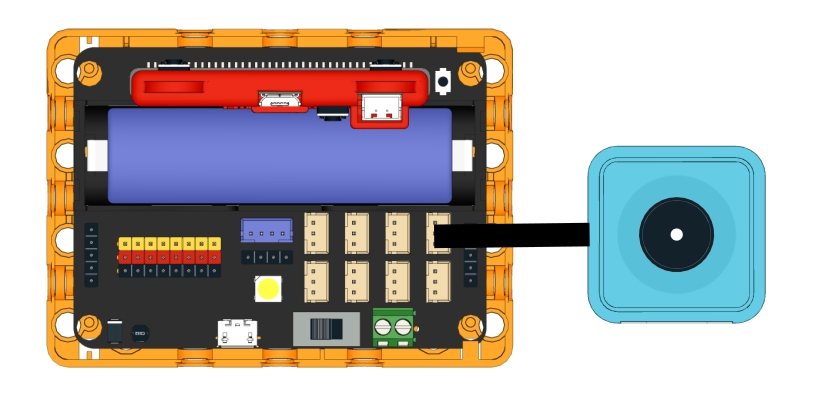

用3Pin 連接線將模組與Robotbit Edu連接起來。Micro:bit預設的蜂鳴器為P0。

![](https://kittenbothk.readthedocs.io/en/latest/_images/buzzer_wire.png)

#### Robotbit 2.2

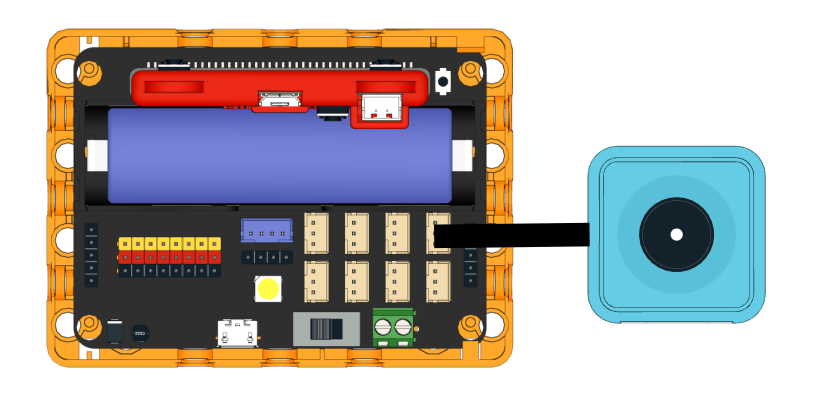

用3Pin 連接線將模組與Robotbit 2.2連接起來。Micro:bit預設的蜂鳴器為P0。

<figure><img src="https://879637118-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FyjL9O4y45HsX6fLOYKzn%2Fbuzzer_wiring_2.2.png?alt=media&#x26;token=77b61d31-e2b5-411c-8a3c-7dce5aa291c3" alt=""><figcaption></figcaption></figure>

### 編程教學

#### MakeCode編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/mcbanner15.png)

#### 加載Sugar插件：

#### 在擴展頁直接搜尋sugar (sugar已經過微軟認證，可以直接搜尋)

![](https://kittenbothk.readthedocs.io/en/latest/_images/sugar_search.gif)

#### 你亦可以用插件地址搜尋

Sugar插件：<https://github.com/KittenBot/pxt-sugar>

#### [詳細方法](https://sharinghub.kittenbot.hk/programmingplatforms/makecode/kittenbotandmakecode)

{% embed url="<https://makecode.microbit.org/_1aeAUP04fXAR>" %}

[參考程式](https://makecode.microbit.org/_1aeAUP04fXAR)


---
