# Sugar 溫濕度模組

![](https://kittenbothk.readthedocs.io/en/latest/_images/env1.png)

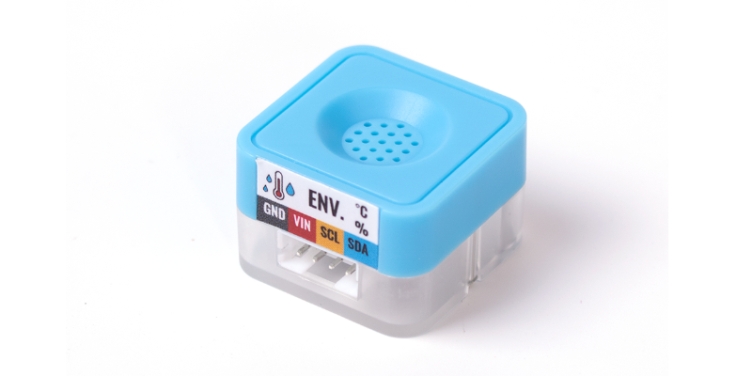

這是一隻溫濕度模組，可以檢測溫濕度，比起DHT11這塊模組的探測精準度較高。背後亦設有塑膠積木孔，可以完美配搭塑膠積木使用。

### 產品參數

* 尺寸：24 x 24 x 23 mm
* 重量：4.6g
* 訊號：I2C
* 類型：I2C 模組
* 溫度: -40\~85°C
* 濕度: 0\~100%

### 產品接線

#### Robotbit Edu

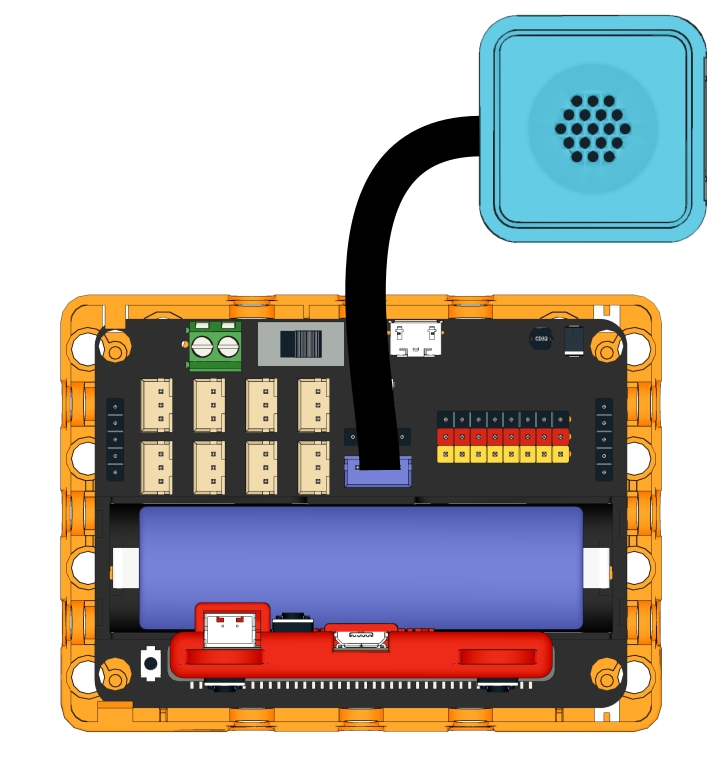

用4Pin 連接線將模組連接到Robotbit Edu的藍色4Pin接口。

![](https://kittenbothk.readthedocs.io/en/latest/_images/env_wire1.png)

#### Robotbit 2.2

用4Pin 連接線將模組連接到Robotbit 2.2的I2C接口。

<figure><img src="https://879637118-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FrgCdiHsgoWzzP6VhVpZQ%2Fenv_wiring_2.2.png?alt=media&#x26;token=6fb55a81-3faf-46cd-8ff0-afcd55c36cf9" alt=""><figcaption></figcaption></figure>

### 編程教學

### MakeCode編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/mcbanner15.png)

#### 加載Sugar插件：

#### 在擴展頁直接搜尋sugar (sugar已經過微軟認證，可以直接搜尋)

![](https://kittenbothk.readthedocs.io/en/latest/_images/sugar_search.gif)

#### 你亦可以用插件地址搜尋

Sugar插件：<https://github.com/KittenBot/pxt-sugar>

#### [詳細方法](https://sharinghub.kittenbot.hk/programmingplatforms/makecode/kittenbotandmakecode)

{% embed url="<https://makecode.microbit.org/_AhF2rX6jyhbv>" %}

[參考程式](https://makecode.microbit.org/_AhF2rX6jyhbv)

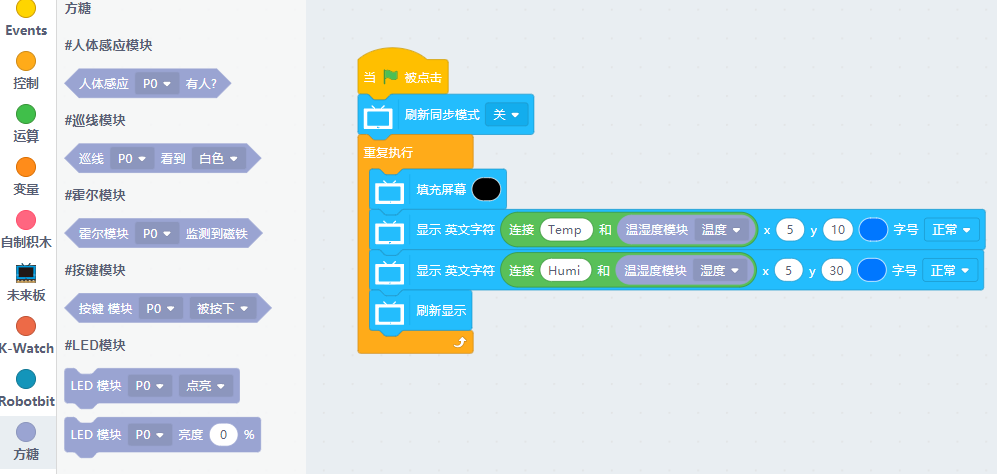

#### Kittenblock 編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/kbbanner9.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/env3.png)

#### MicroPython 編程教學

```
ENV()
update()
```

* update(): 返回一個元組（溫度，濕度）

參考程式

```
from future import *
from sugar import *

env = ENV()
screen.sync = 0

while True:
  screen.fill((0, 0, 0))
  screen.text(str("Temp ")+str(env.update()[0]), x = 5, y = 10)
  screen.text(str("Humi ")+str(env.update()[1]), x = 5, y = 30)
  screen.refresh()
```


---
