# Sugar LED模組

![](https://kittenbothk.readthedocs.io/en/latest/_images/led12.png)

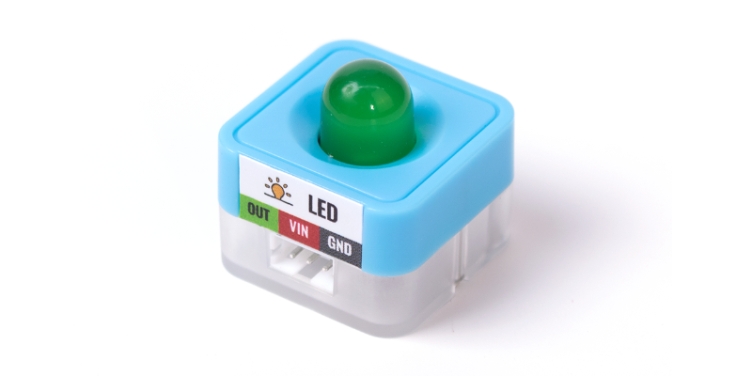

這是一粒LED模組。背後亦設有塑膠積木孔，可以完美配搭塑膠積木使用。

### 產品參數

* 尺寸：24 x 24 x 23 mm
* 重量：5.6g
* 訊號：1為點亮，0為熄滅
* 類型：Digital 數位模組

### 產品接線

#### Robotbit Edu

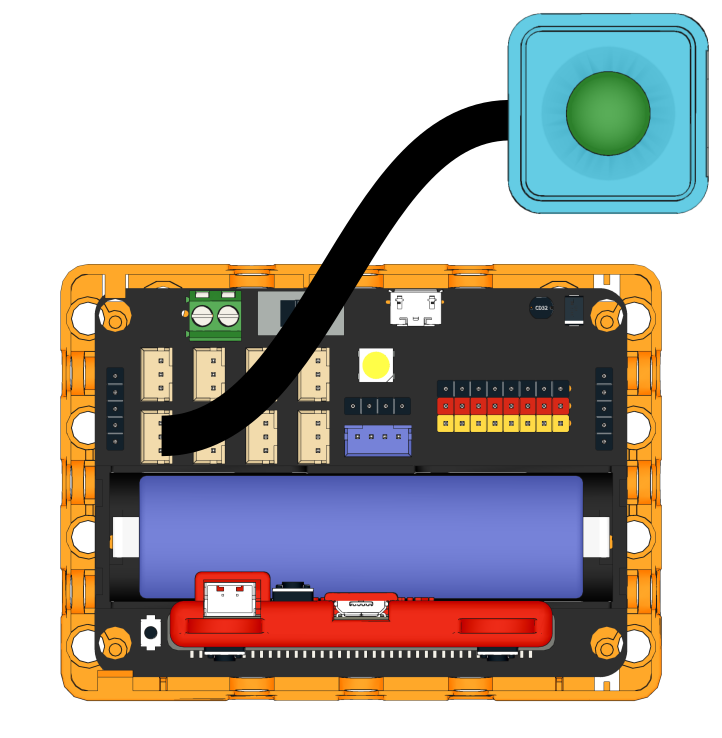

用3Pin 連接線將模組與Robotbit Edu連接起來。

![](https://kittenbothk.readthedocs.io/en/latest/_images/led_wire.png)

#### Robotbit 2.2

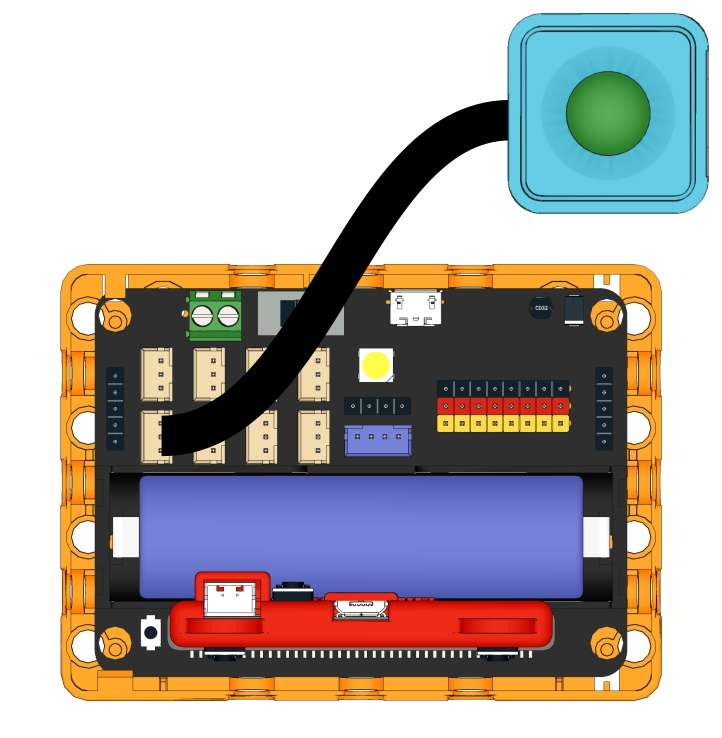

用3Pin 連接線將模組與Robotbit 2.2連接起來。

<figure><img src="https://879637118-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2Fneoy1cWr8T2N4W6wciP7%2Fled_wiring_2.2.png?alt=media&#x26;token=be236aa4-56b3-4159-a9fa-e90aad20ad25" alt=""><figcaption></figcaption></figure>

### 編程教學

### MakeCode編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/mcbanner15.png)

#### 加載Sugar插件：

#### 在擴展頁直接搜尋sugar (sugar已經過微軟認證，可以直接搜尋)

![](https://kittenbothk.readthedocs.io/en/latest/_images/sugar_search.png)

#### 你亦可以用插件地址搜尋

Sugar插件：<https://github.com/KittenBot/pxt-sugar>

#### [詳細方法](https://sharinghub.kittenbot.hk/programmingplatforms/makecode/kittenbotandmakecode)

{% embed url="<https://makecode.microbit.org/_Ap5FxKHA6EPj>" %}

[參考程式](https://makecode.microbit.org/_Ap5FxKHA6EPj)

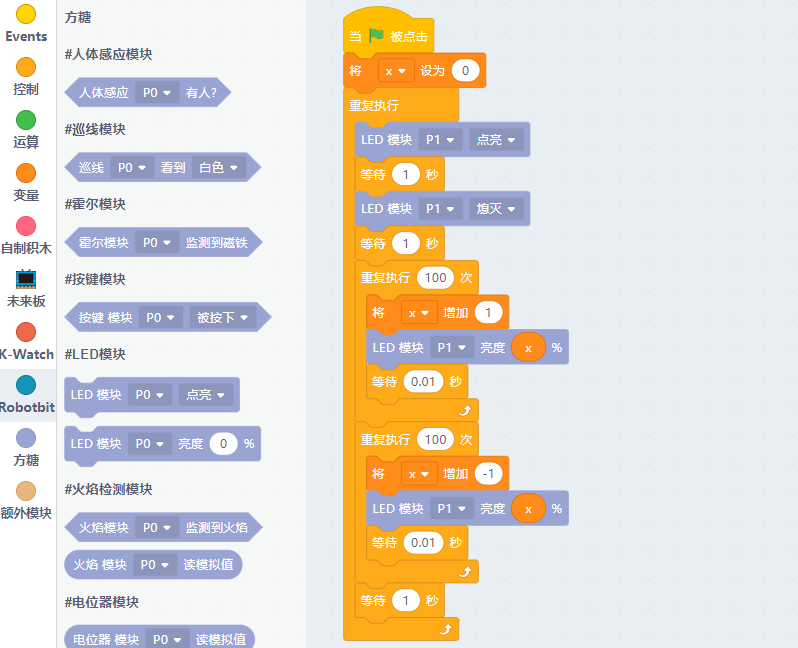

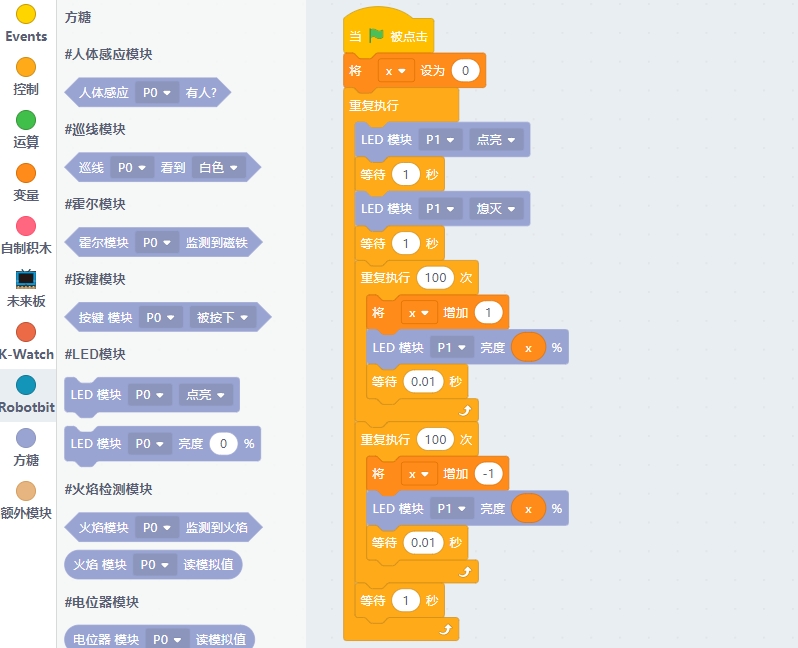

#### Kittenblock 編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/kbbanner9.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/led32.png)

#### MicroPython 編程教學

```
LED(pin)
state(sta)
```

* state(sta): 1為點亮，0為熄滅

參考程式

```
from sugar import *
import time

# P0、P1、P2、P3、P8、P13、P14、P15、P16
led = LED('P1')

led.state(1)
time.sleep(1)
led.state(0)
time.sleep(1)
```

***

```
brightness(val)
```

brightness(val): 亮度百分比，0\~100

參考程式

```
from sugar import *
import time

# P0、P1、P2、P3、P8、P13、P14、P15、P16
led = LED('P1')

for i in range(100):
    led.brightness(i)
    time.sleep_ms(5) # 改变延时可改变呼吸速率
for i in range(100, -1, -1):
    led.brightness(i)
    time.sleep_ms(5)
```


---
