# Sugar 二期RGB燈圈模組

<figure><img src="https://879637118-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FJ2X9uyFjKUnN3Hxk1H2F%2Frgb.png?alt=media&#x26;token=a13c1b37-1cde-4517-b7a4-197311773d0f" alt=""><figcaption></figcaption></figure>

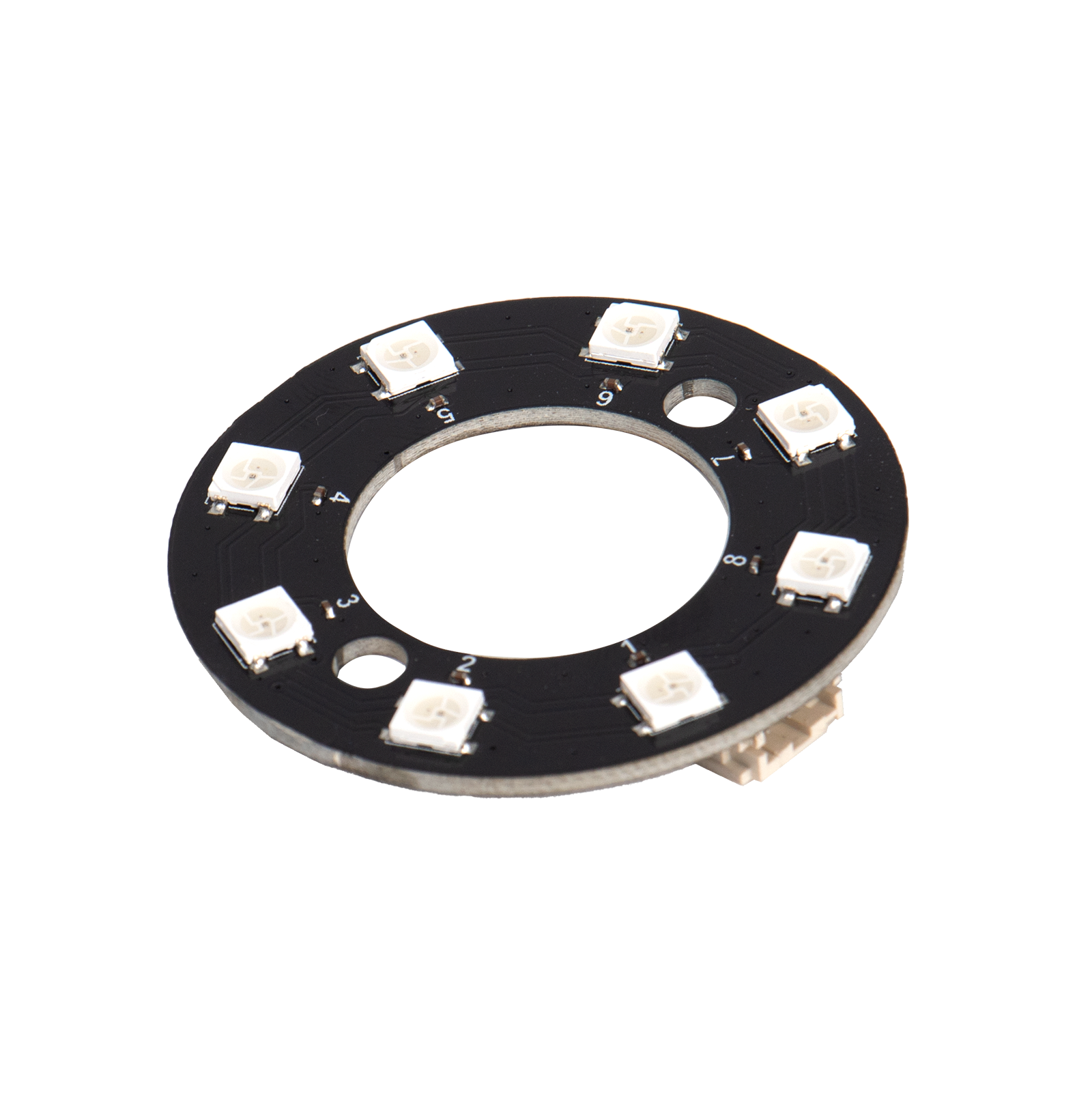

這是一個裝有8粒RGB彩燈的燈圈模組，可以顯示各種燈光效果。

## 產品參數：

* 操作電壓：3.3\~5
* 類型：Digital 數位模組

## 產品接線

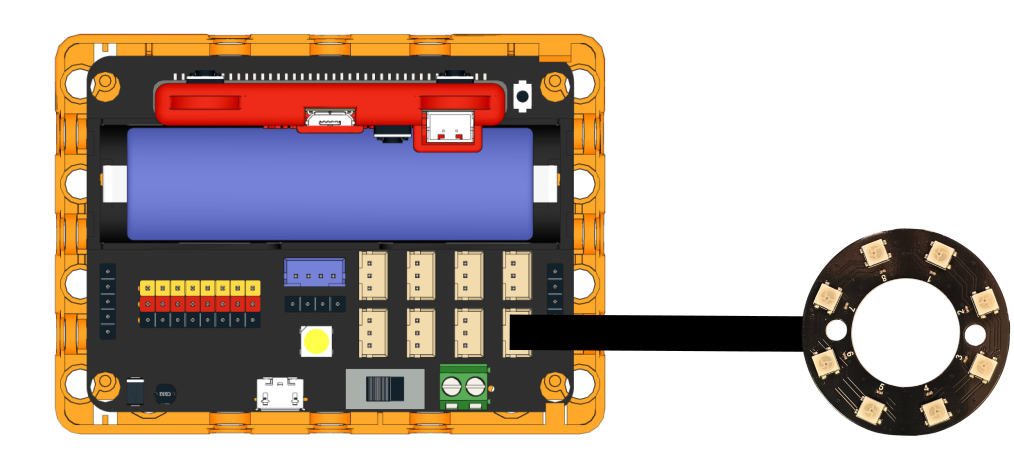

#### Robotbit EDU

<figure><img src="https://879637118-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FZ568KTD7niKtGIDASW5j%2Frgbring_wiring_edu.png?alt=media&#x26;token=bfabfd53-910d-4e82-91c5-7c462d1abdb3" alt=""><figcaption></figcaption></figure>

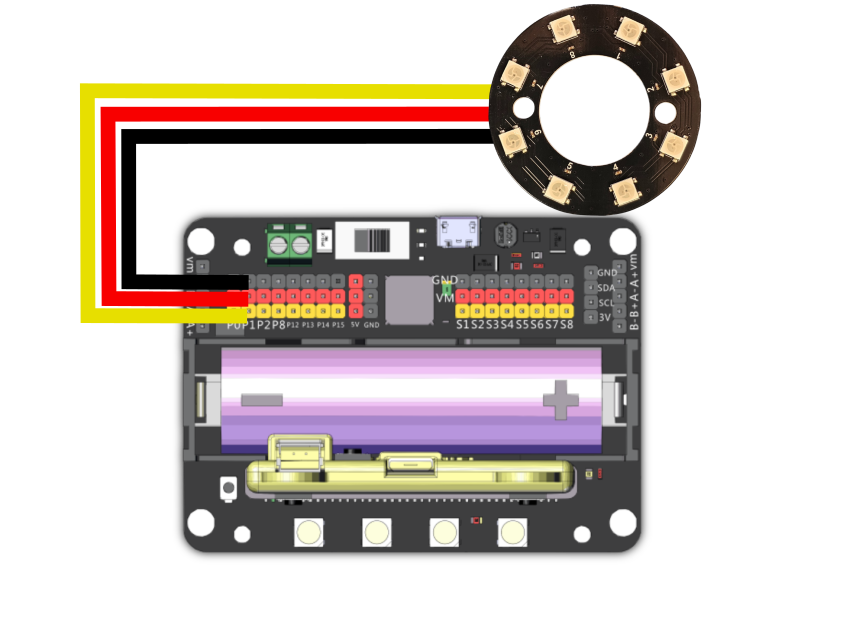

#### Robotbit 2.2

<figure><img src="https://879637118-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FsTZoIHREQ6oYPpcWYfY9%2Frgbring_wiring_2%2C2.png?alt=media&#x26;token=fe75732e-133a-4590-a2c6-81b43b3bc020" alt=""><figcaption></figcaption></figure>

## 參考程式

#### MakeCode編程教學

#### 加載Robotbit插件：

#### 在擴展頁直接搜尋robotbit (robotbit已經過微軟認證，可以直接搜尋)

![](https://kittenbothk.readthedocs.io/en/latest/_images/sugar_search.gif)

#### 你亦可以用插件地址搜尋

Sugar插件：<https://github.com/KittenBot/pxt-robotbit>

#### [詳細方法](https://sharinghub.kittenbot.hk/programmingplatforms/makecode/kittenbotandmakecode)

{% embed url="<https://makecode.microbit.org/_DdPiLTfM7Jk6>" %}

[參考程式](https://makecode.microbit.org/_DdPiLTfM7Jk6)


---
