# Jacdac MakeCode編程快速開始

MakeCode已經可以支援Micro:bit V2的Jacdac編程，請細閱以下說明了解如何在MakeCode開始編程。

### 注意：Jacdac只支援Micro:bit V2

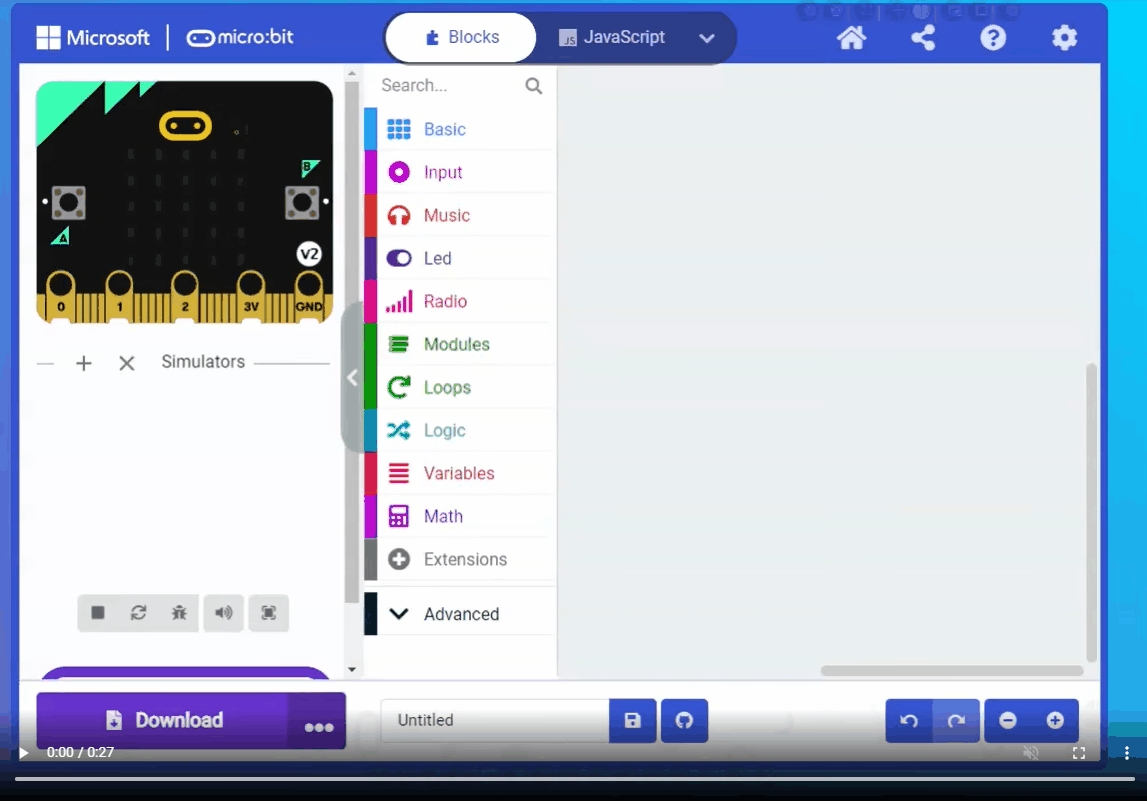

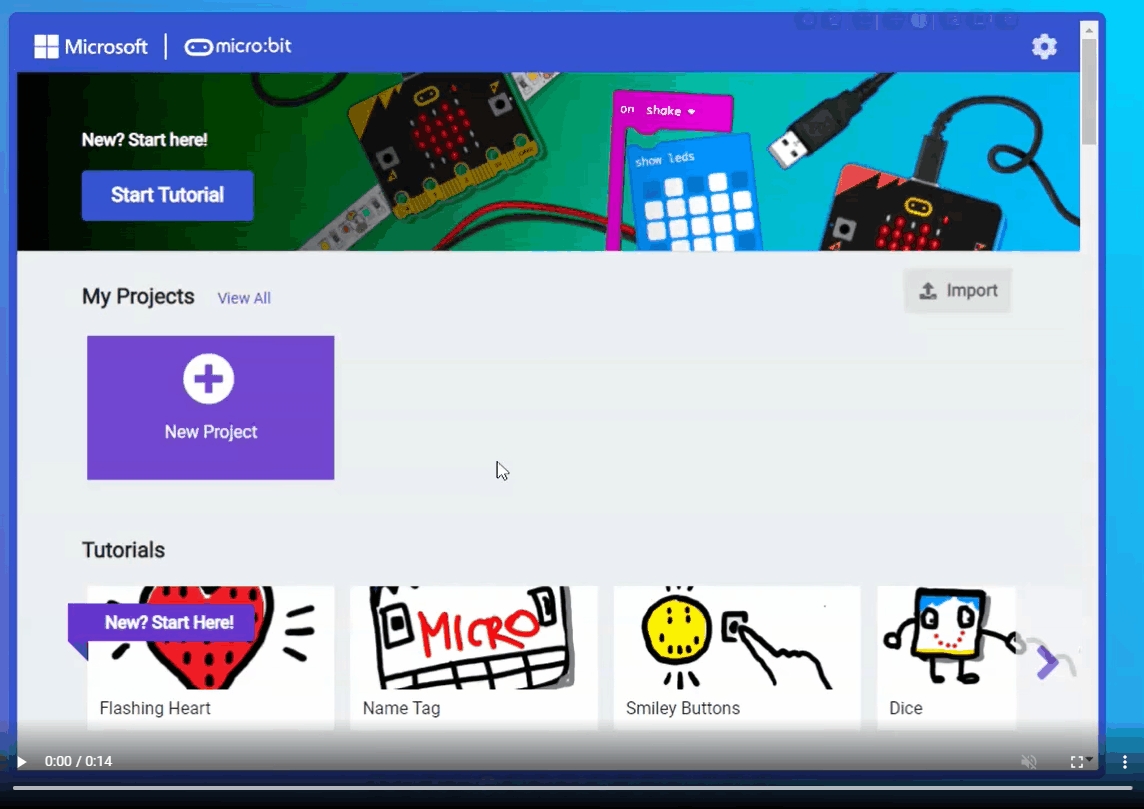

### 1. 在MakeCode專案加入Jacdac插件

![](https://kittenbothk.readthedocs.io/en/latest/_images/makecode1.gif)

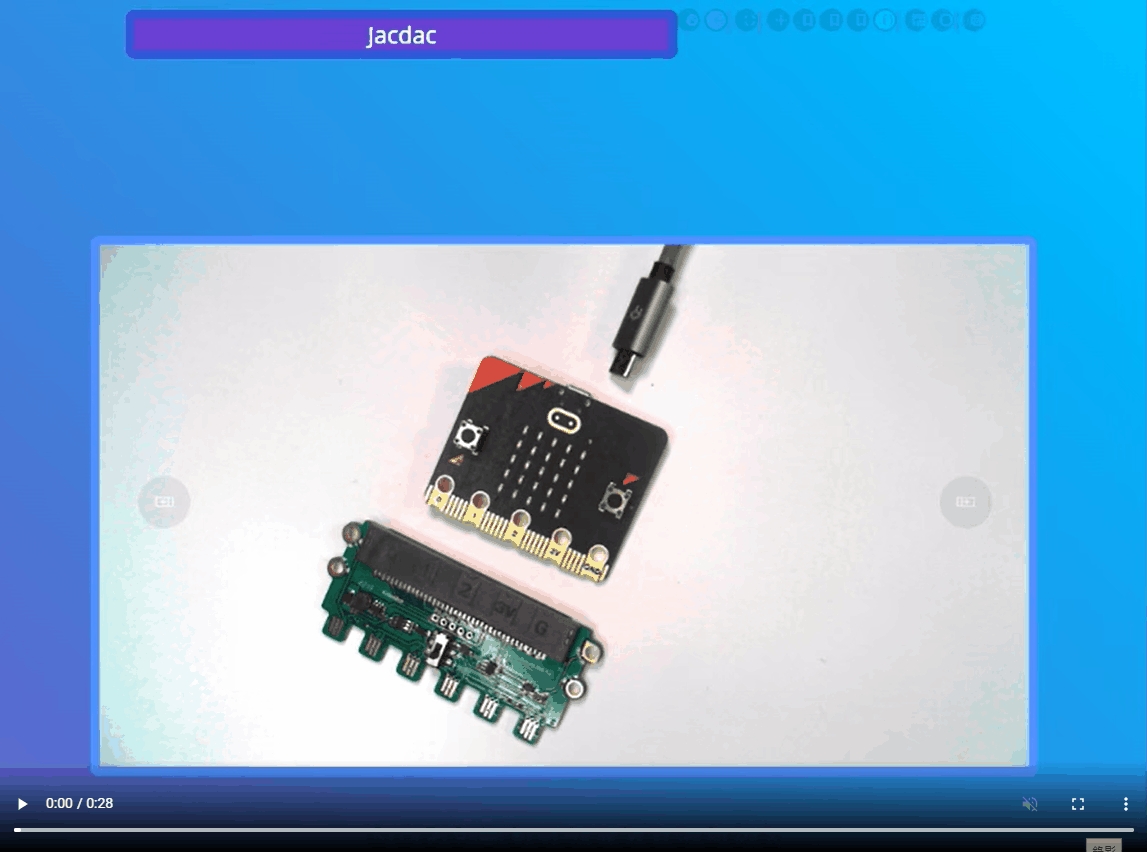

### 2. 將Micro:bit V2連接到MakeCode，然後將程式hex下載到Micro:bit V2

![](https://kittenbothk.readthedocs.io/en/latest/_images/makecode2.gif)

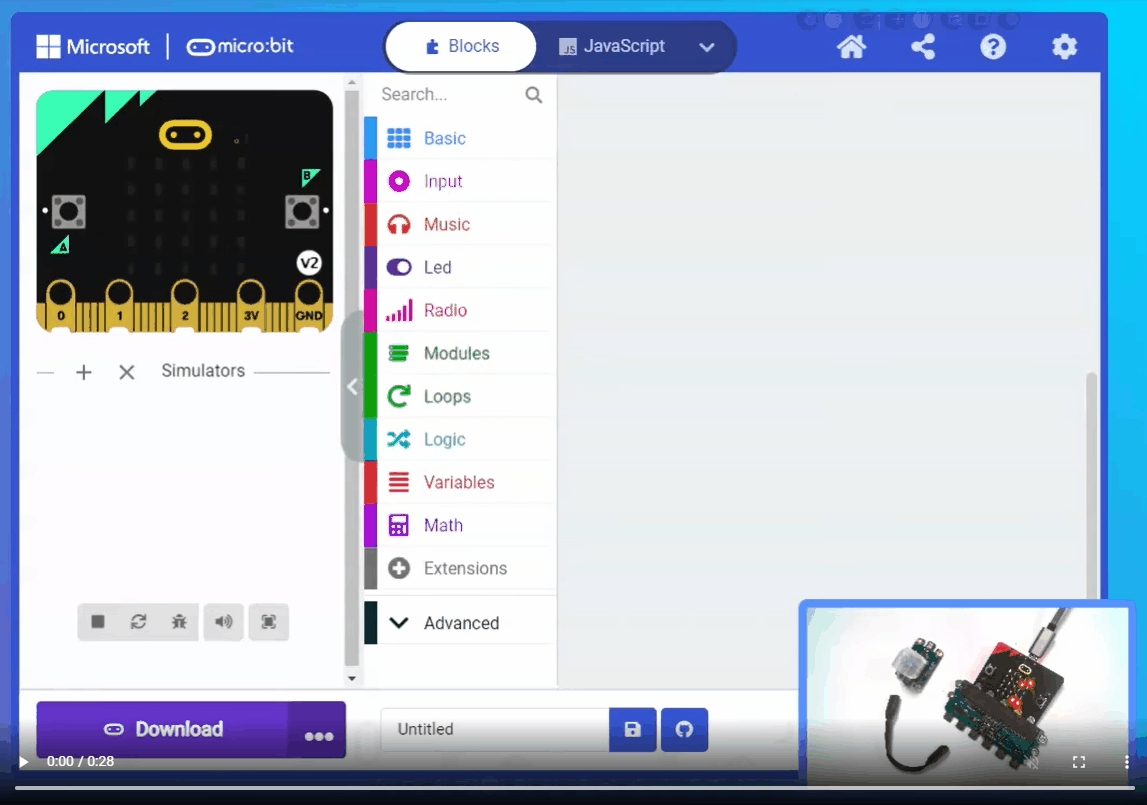

### 3. 連接Jacdac模組MakeCode會自動更新模組清單，然後點擊加入積木就可以開始編程

![](https://kittenbothk.readthedocs.io/en/latest/_images/makecode3.gif)

#### 假如你手上沒有Jacdac模組，你亦可以透過模擬器進行編程

#### 在模擬器搜尋模組就可以加入相應的積木

![](https://kittenbothk.readthedocs.io/en/latest/_images/makecode4.gif)

### Micro:bit不能連接MakeCode修復方法

假如你的Micro:bit不能連接到MakeCode，請試試以下方法。

1. 更新網絡瀏覽器
2. 更新Micro:bit的韌體
3. 重新安裝mbed驅動程式

#### 重新安裝mbed驅動程式方法

**1. 將Micro:bit連接到電腦**

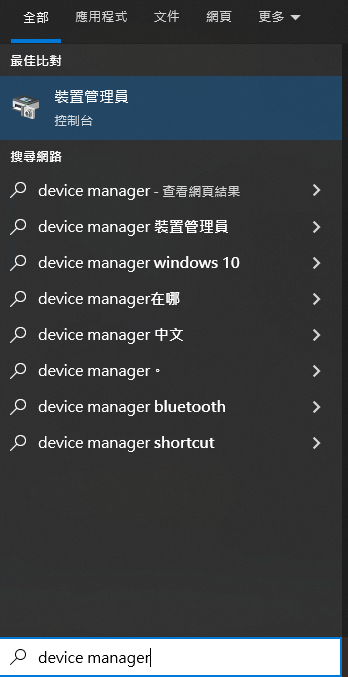

**2. 搜尋並打開裝置管理員(Device Manager)**

![](https://kittenbothk.readthedocs.io/en/latest/_images/devicemanager.png)

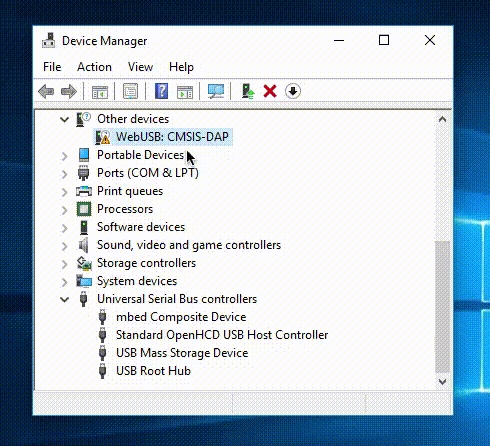

**3. 選擇mbed device，移除硬件並剔選移除驅動程式**

![](https://kittenbothk.readthedocs.io/en/latest/_images/mbed.gif)

**4. 重新連接Micro:bit**


---
