# 平台設定教學

### MakerCloud平台設定教學

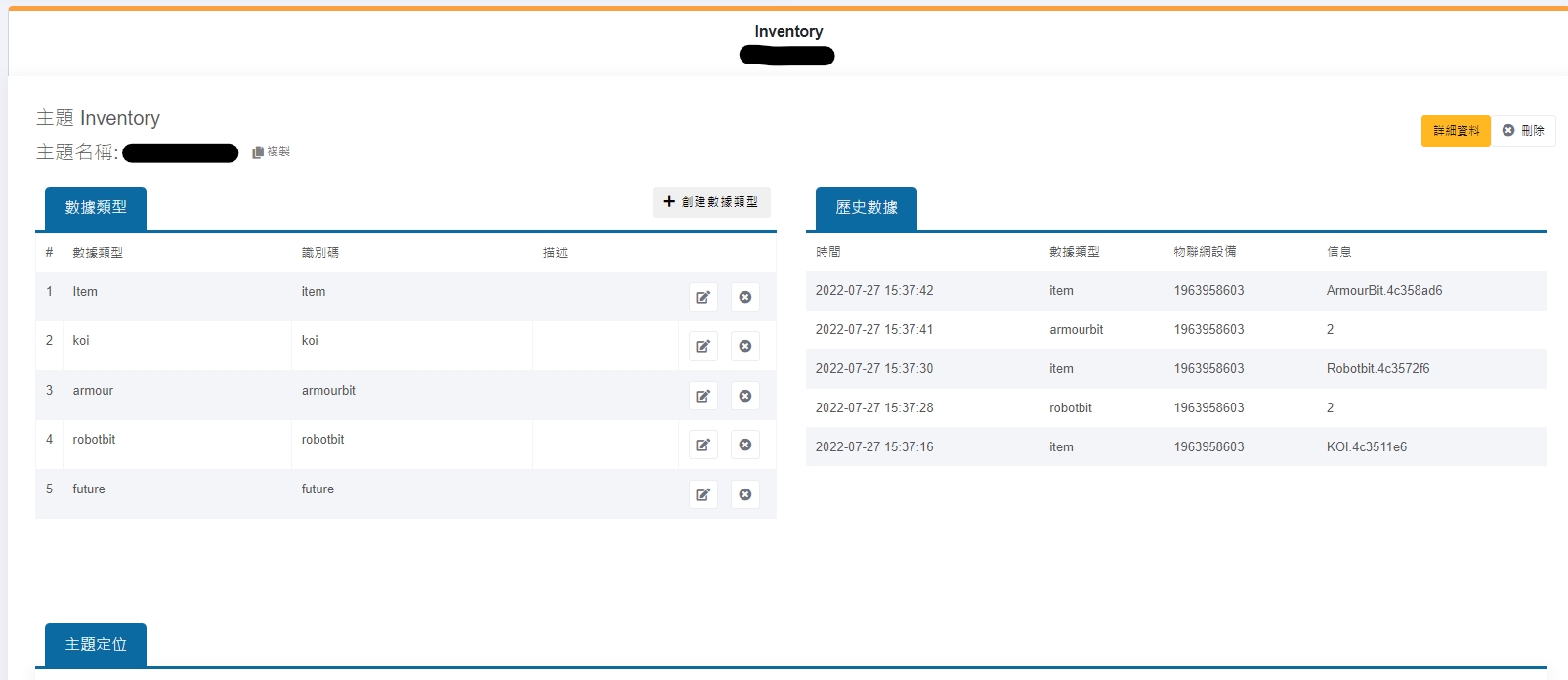

在MakeCloud平台建立新主題，建立數據類型item、koi、robotbit、armourbit。(貨品參考)

![](https://kittenbothk.readthedocs.io/en/latest/_images/makercloud110.png)

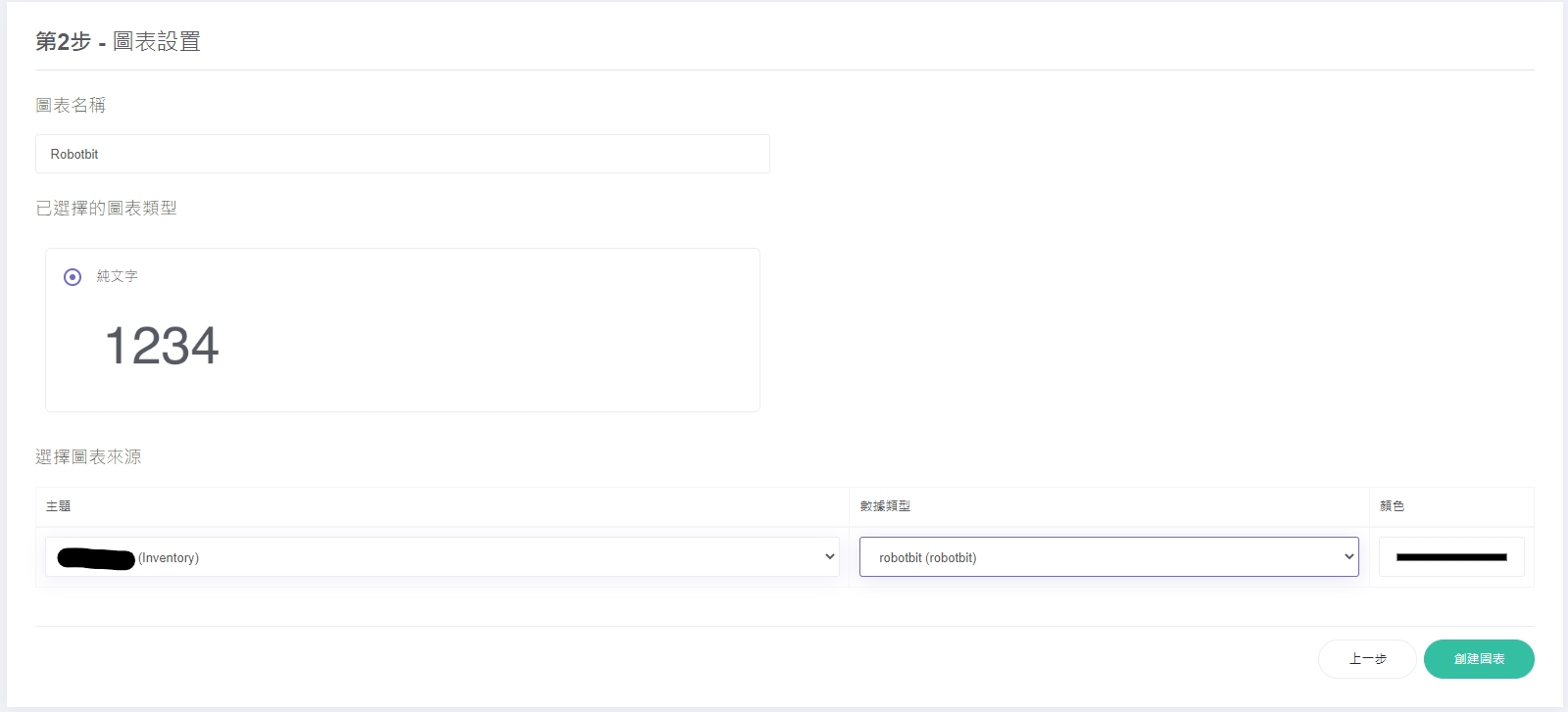

為每個數據類型建立圖表。

![](https://kittenbothk.readthedocs.io/en/latest/_images/makercloud32.png)

建立儀表板，顯示建立的圖表。

![](https://kittenbothk.readthedocs.io/en/latest/_images/makercloud27.png)

### ObjectBlocks平台設定教學

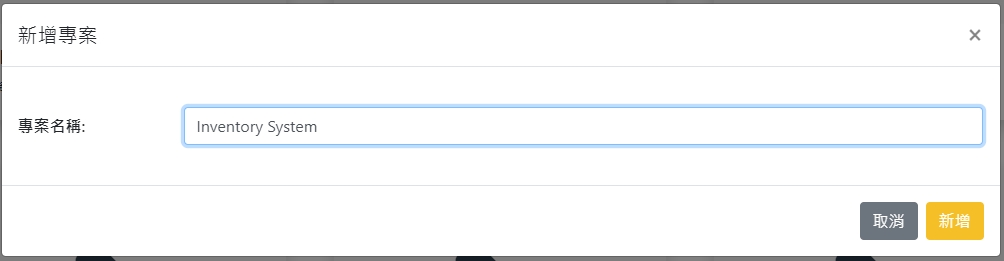

建立新專案。

![](https://kittenbothk.readthedocs.io/en/latest/_images/objectblocks11.png)

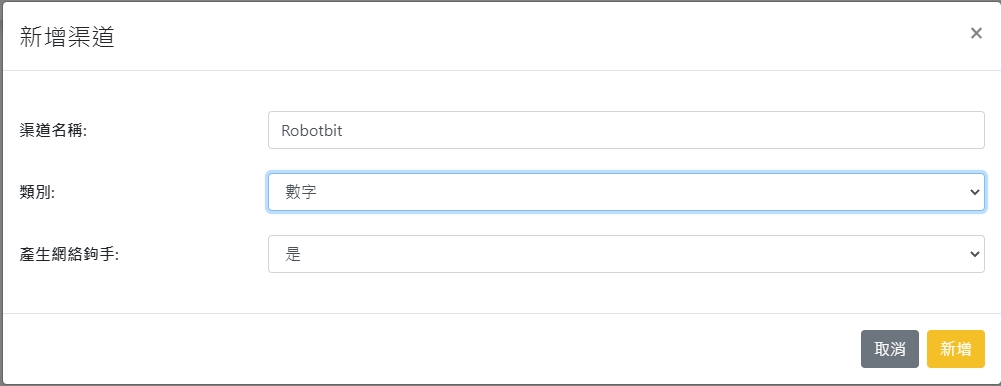

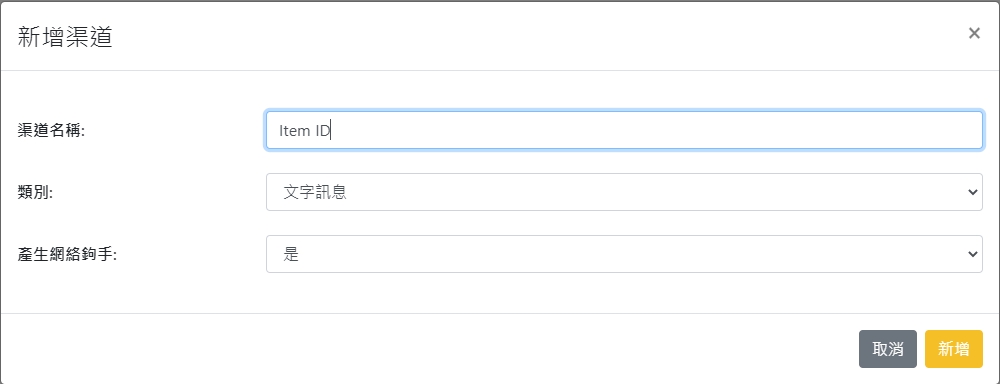

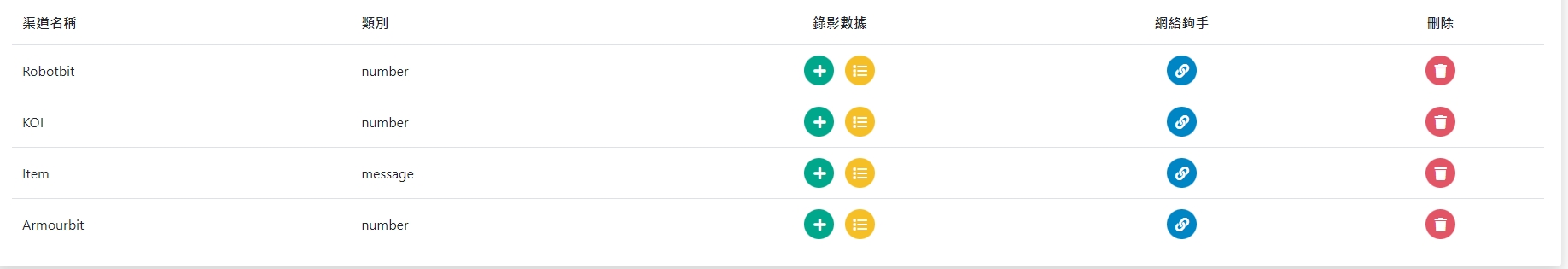

建立渠道Robotbit、Armourbit、KOI、Item。(必須剔選網絡勾手選項)

![](https://kittenbothk.readthedocs.io/en/latest/_images/objectblocks21.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/objectblocks31.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/objectblocks41.png)

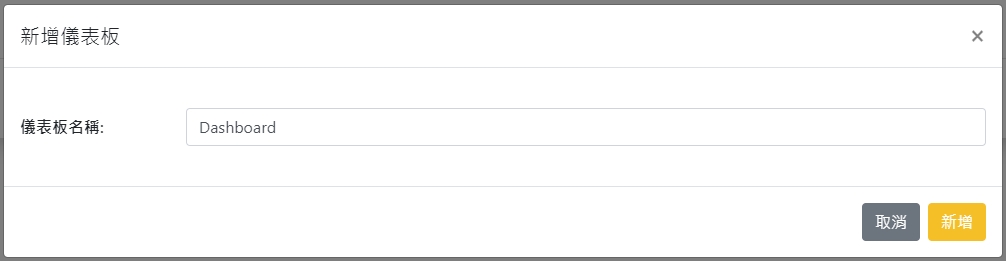

新增儀表板。

![](https://kittenbothk.readthedocs.io/en/latest/_images/objectblocks51.png)

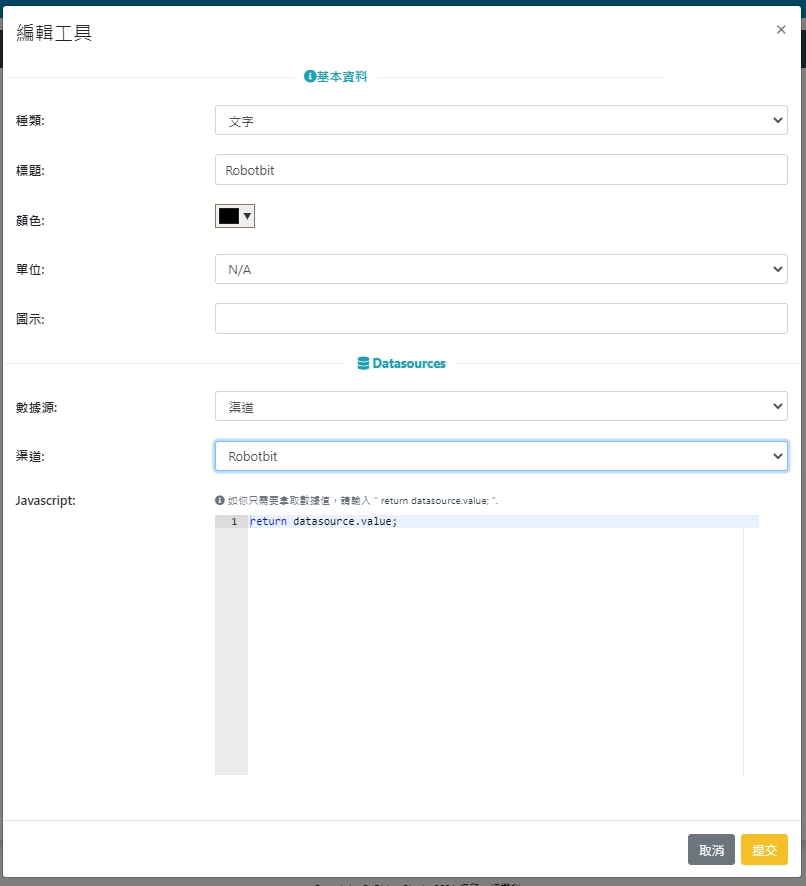

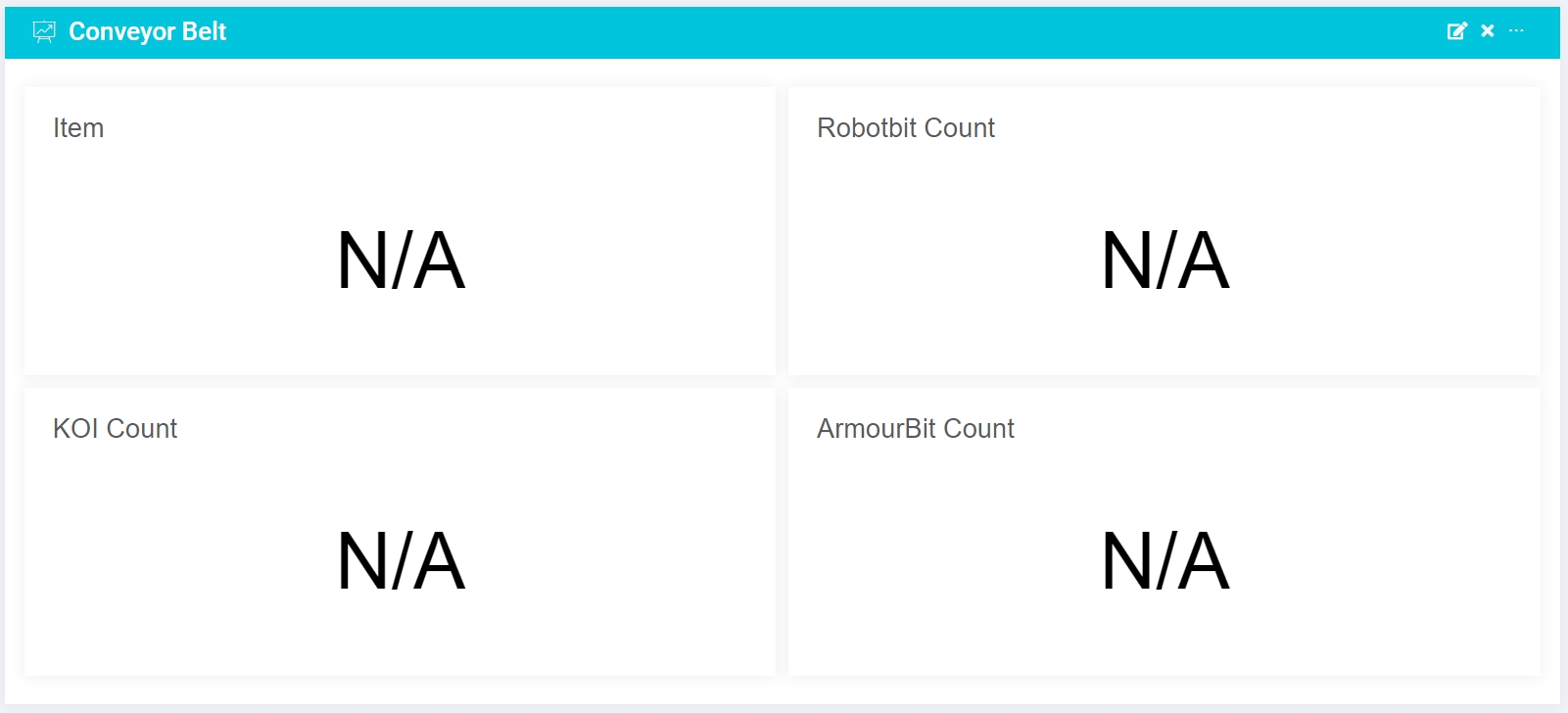

新增工具顯示渠道信息。

![](https://kittenbothk.readthedocs.io/en/latest/_images/objectblocks61.png)

### ThingSpeak平台設定教學

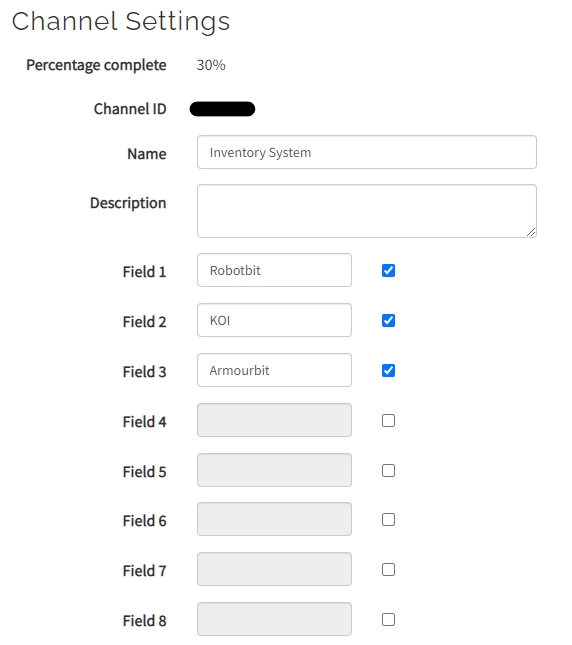

建立ThingSpeak頻道，設定數據欄Robotbit，KOI，Armourbit，Item。

![](https://kittenbothk.readthedocs.io/en/latest/_images/thingspeak11.png)

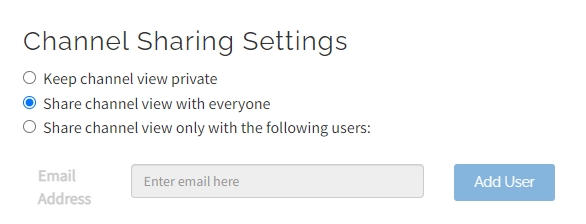

將頻道設為公開。

![](https://kittenbothk.readthedocs.io/en/latest/_images/thingspeak21.png)

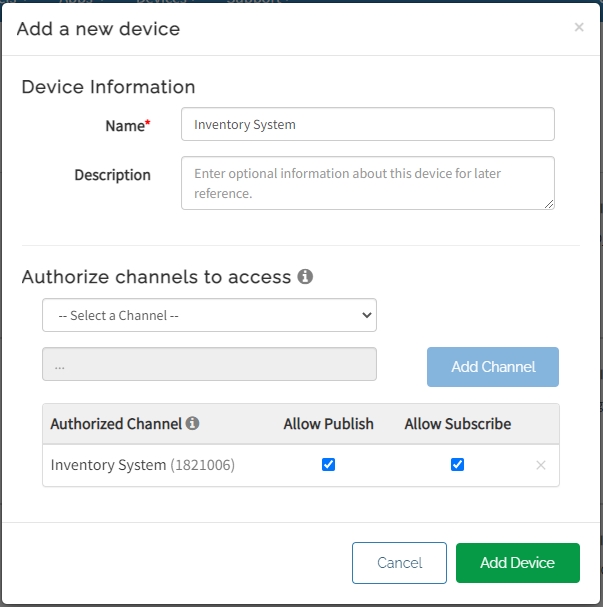

設定新MQTT Device。

![](https://kittenbothk.readthedocs.io/en/latest/_images/thingspeak31.png)

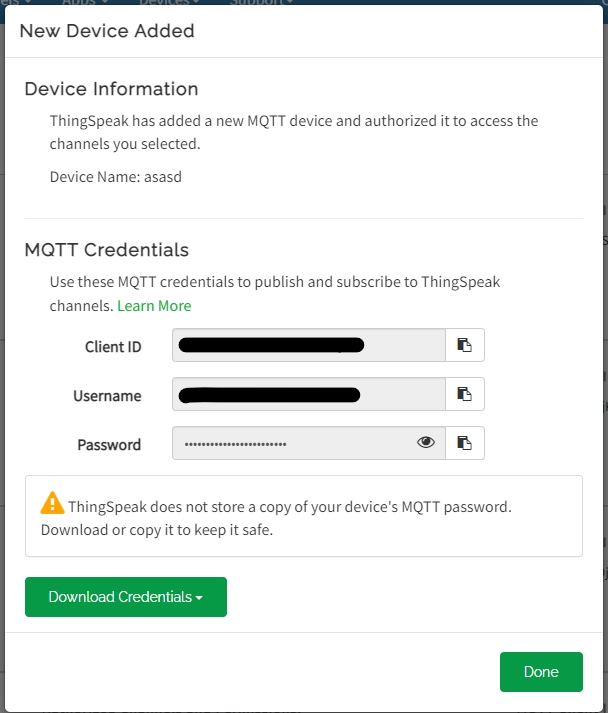

請好好保管ThingSpeak存取登入密碼。

![](https://kittenbothk.readthedocs.io/en/latest/_images/thingspeak41.png)


---
