# 未來板固件更新

### 未來板固件更新

Kittenbot會不定期推出未來版的固件更新，提升功能與穩定性。

### 未來板固件推薦更新方法

未來板最推薦的更新方法是使用Kittenblock。前往Kittenblock在線版。

{% embed url="<https://kblock.kittenbot.cc/>" %}

在硬件欄選擇未來板。

<figure><img src="/files/SCwEk36FF4Cg6fhpyOKE" alt=""><figcaption></figcaption></figure>

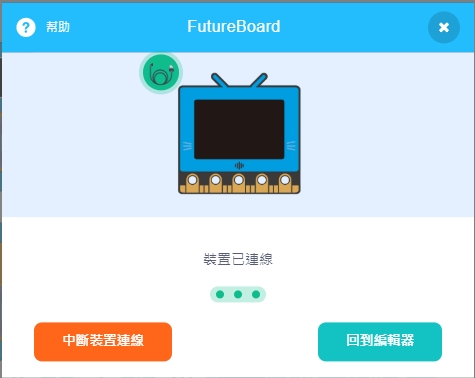

使用USB線連接上未來板。

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/connected.png" alt=""><figcaption></figcaption></figure>

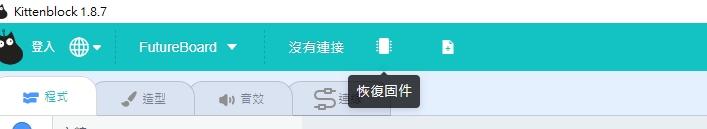

點擊恢復固件。

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/firmware1.png" alt=""><figcaption></figcaption></figure>

未來板就會重新開機，等待未來板開機完成就可以在選單選擇GD32 USB CDC ACM。

<figure><img src="/files/3RqNYwVL9AcvkCGbZJui" alt=""><figcaption></figcaption></figure>

未來板會開始下載最新固件，期間未來板會顯示白色畫面。
\
這時候請不要拔除USB線或關閉電源。

<figure><img src="/files/iQB8wa6HaVj8kG9mcymJ" alt=""><figcaption></figcaption></figure>

完成後，未來板會自動重新開機。此時未來板的固件更新就已經完成。

<figure><img src="/files/zbZ7K40DMTJ8jfD5wtlg" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/YmAIdNBLUYP4gssOwRy1" alt=""><figcaption></figcaption></figure>


---
