# Meowbit Kittenblock編程快速入門

Kittenblock是針對青少年STEAM教育的編程平台，是Meowbit的其中一種支援平台。

![](https://kittenbothk.readthedocs.io/en/latest/_images/kbbanner11.png)

### 在Kittenblock連接Meowbit

要在Kittenblock對Meowbit編程，我們首先要與Meowbit建立連接。

#### 1. 將Meowbit連接電腦，並進入下載模式。

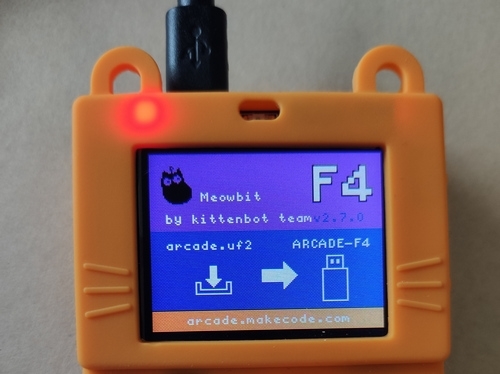

* 按著MeowBit的A按鍵不放，打開MeowBit電源。

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb1.jpg)

成功的話，電腦會出現一個叫Arcade F4的裝置。

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb23.png)

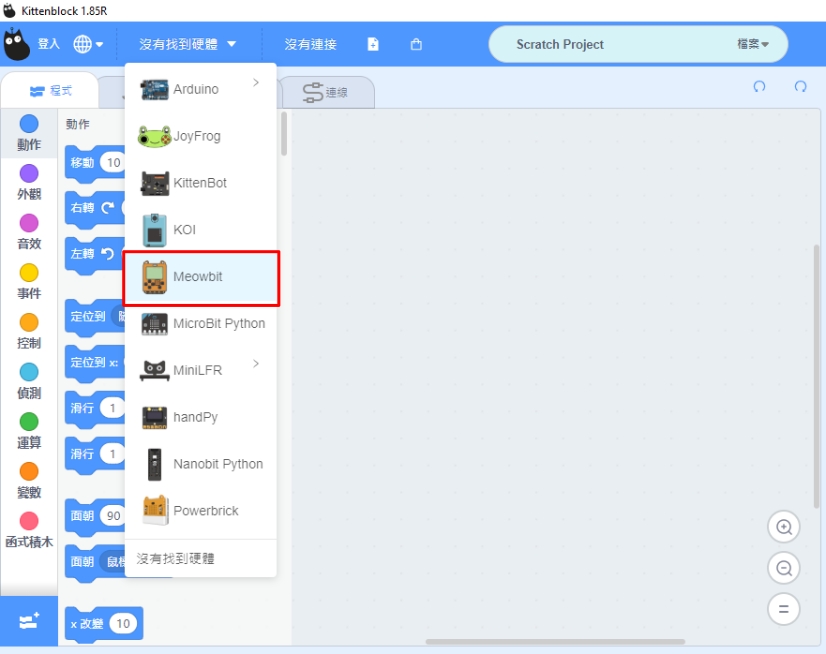

#### 2. 打開Kittenblock，在選擇硬件欄選擇Meowbit。

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb33.png)

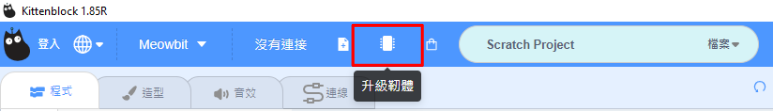

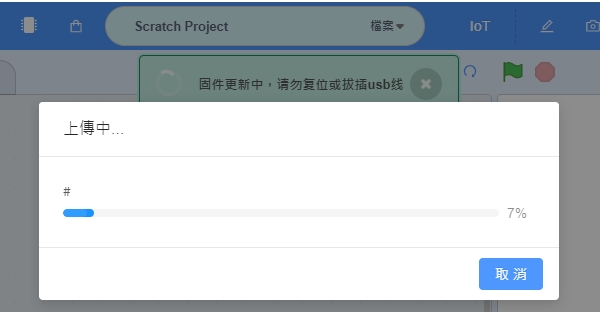

#### 3. 點擊升級韌體。

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb44.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb53.png)

完成後，電腦會出現一個叫PYBFLASH的裝置。

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb62.png)

```
假如電腦上只出現了可移動式磁碟(USB Drive)，你需要按著B然後按一下Reset。
```

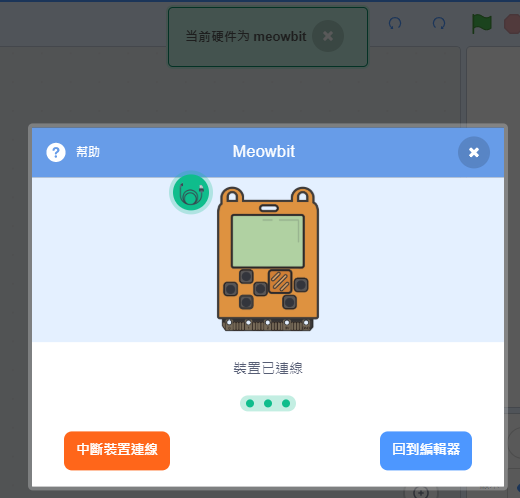

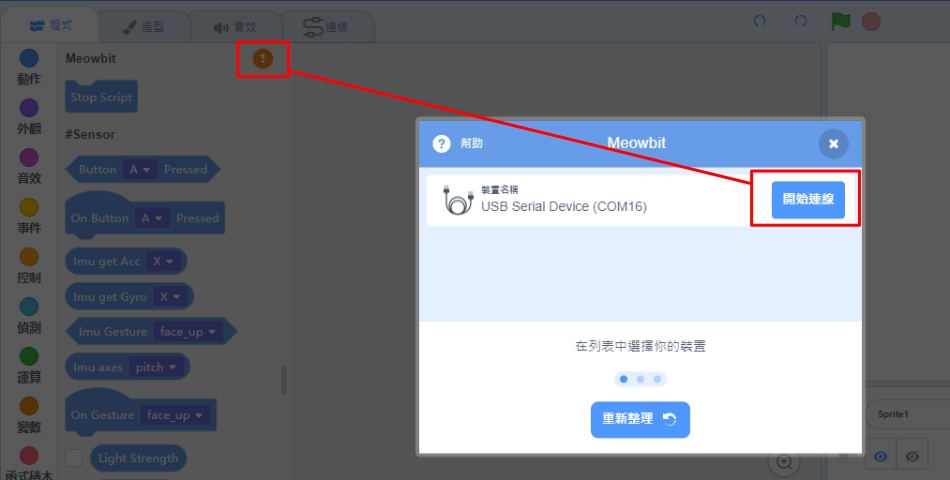

#### 4. 點擊感嘆號，連接Meowbit。

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb72.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb82.png)

Meowbit上會顯示”設備已連接”的字句。

### 在Kittenblock上編程教學

在Kittenblock上Meowbit有不同種類的功能。

#### 運行類

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb91.png)

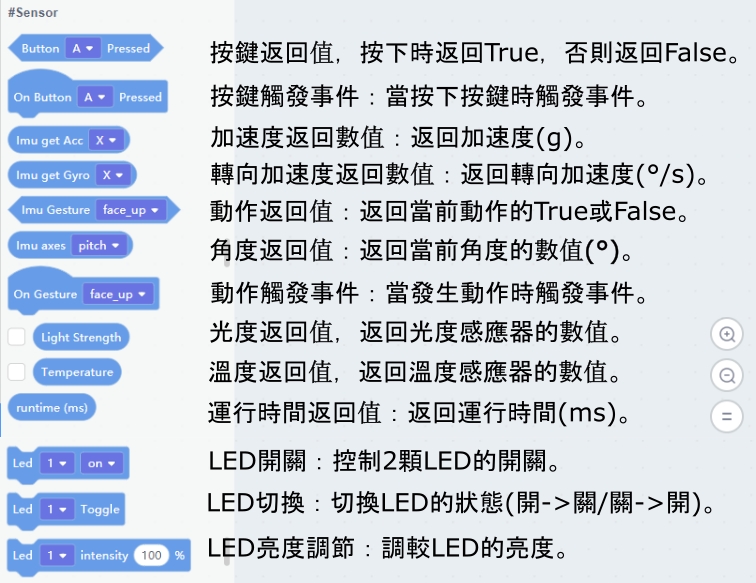

#### 輸入類，感應器類

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb101.png)

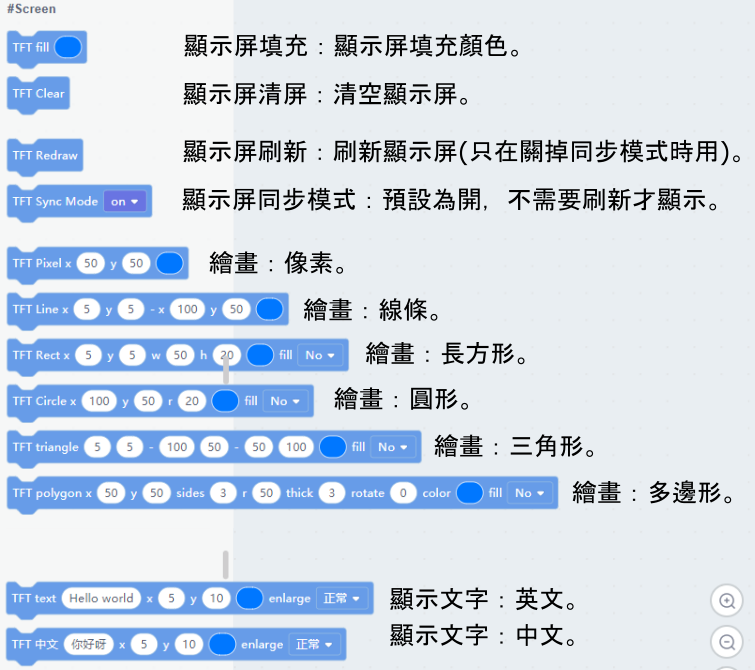

#### 顯示屏類

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb112.png)

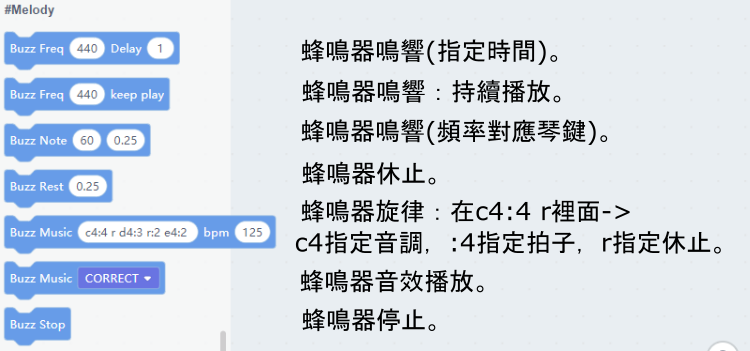

#### 蜂鳴器類

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb121.png)

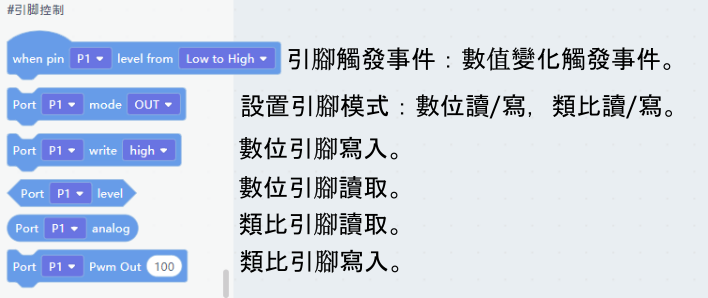

#### 引腳控制類

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb131.png)

#### Robotbit控制類

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb15.png)

#### Neopixel類

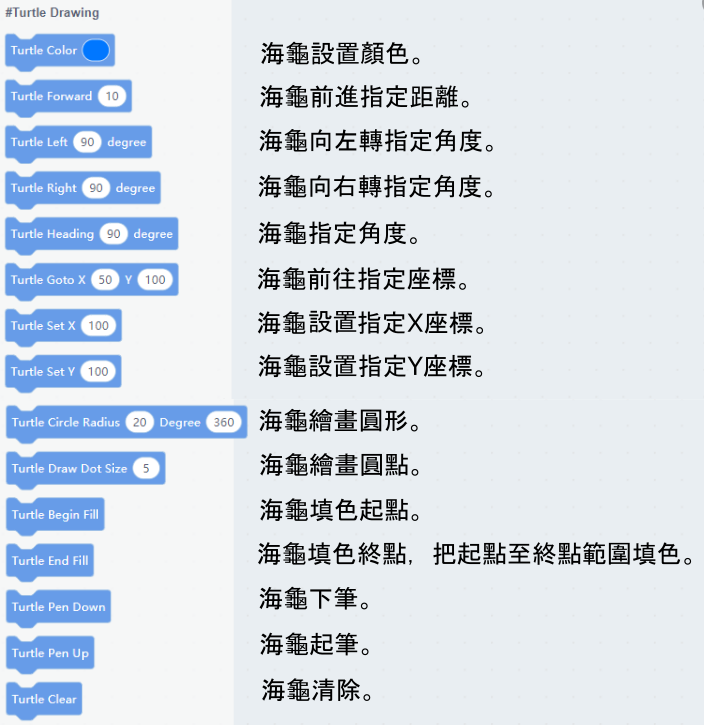

#### LOGO海龜類

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb16.png)

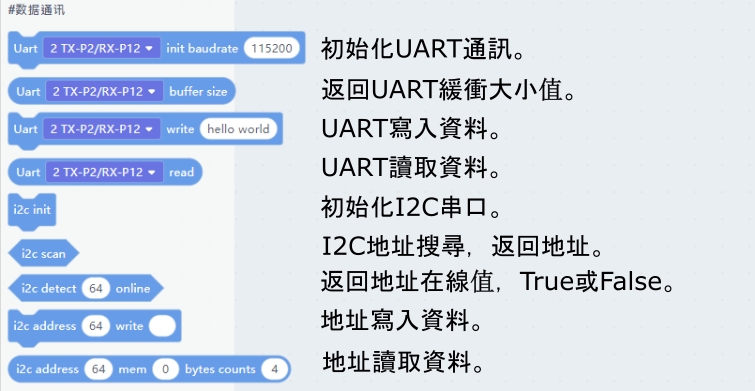

#### 串口通訊類

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb14.png)


---
