# Meowbit的燈條編程

使用Meowbit亦可對Neopixel的燈條編程，例如Robotbit上的燈條。

### MakeCode Arcade編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/acbanner2.png)

### Robotbit 燈條編程

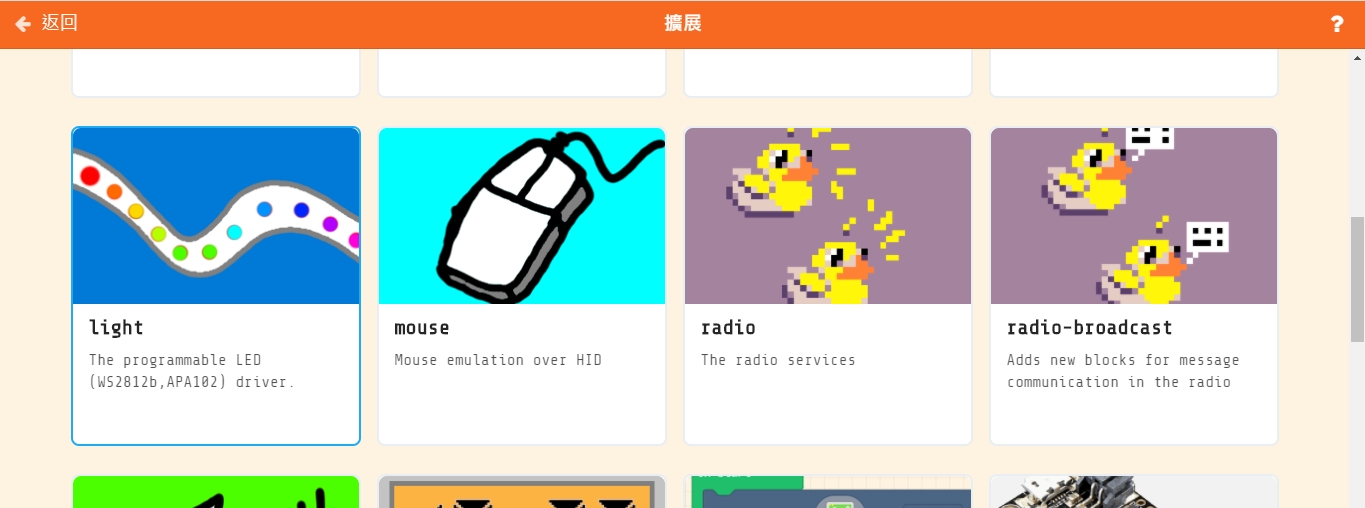

#### 載入燈條插件

#### [詳細方法](/programmingplatforms/makecode/kittenbotandmakecode.md)

![](https://kittenbothk.readthedocs.io/en/latest/_images/sd5.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit3.png)

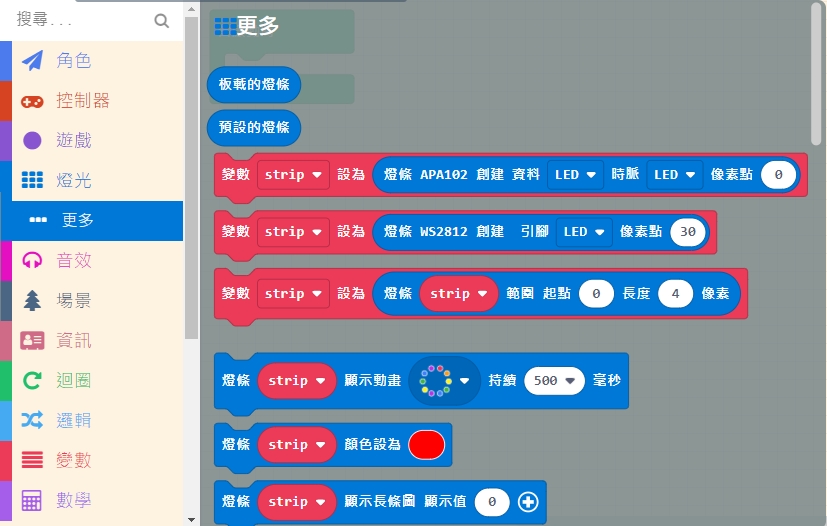

#### 燈條積木塊

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit4.png)

#### 燈條編程

```

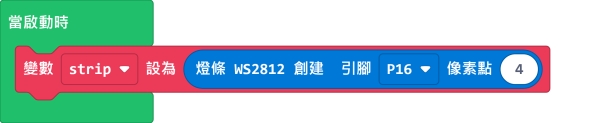

在Meowbit上使用Robotbit的燈條時，需要在Pin 16設置長度為4的WS2812燈條。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit15.png)

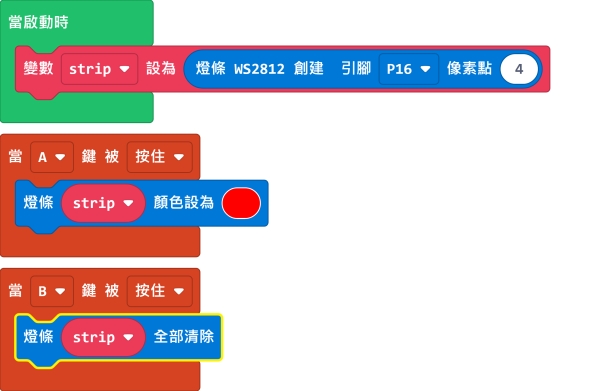

**4顆燈同時點亮**

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit10.png)

[參考程式](https://makecode.com/_XXwcLH7YpW2x)

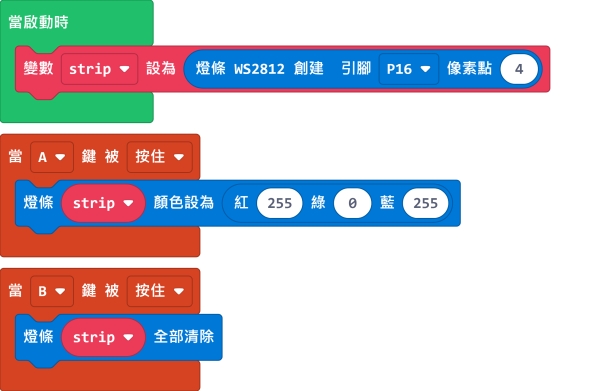

**使用RGB數值指定顏色**

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit11.png)

[參考程式](https://makecode.com/_CTVgMgevD2Ks)

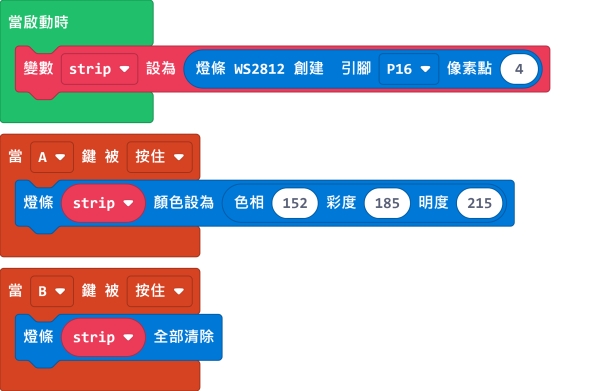

**使用HSL數值指定顏色**

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit12.png)

[參考程式](https://makecode.com/_M6M9VrHbj8dH)

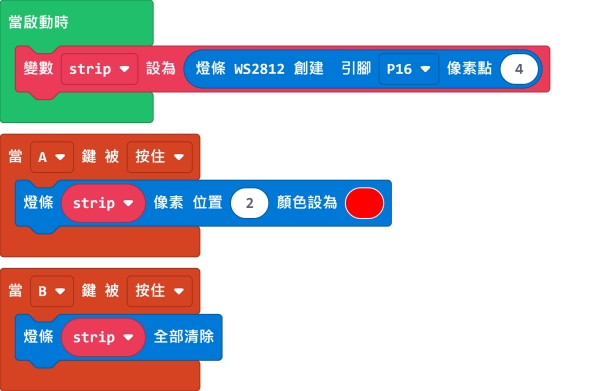

**點亮指定一顆燈**

```
燈條像素數值由0開始數。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit13.png)

[參考程式](https://makecode.com/_89Hb2TW6LJ0a)

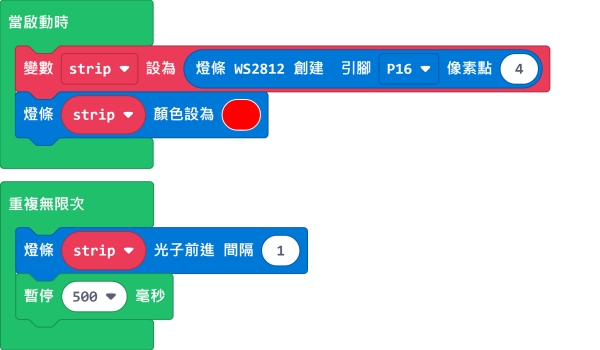

**光子效果**

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit14.png)

[參考程式](https://makecode.com/_92m20h91uL5j)

### Kittenblock編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/kbbanner11.png)

#### 燈條編程

```

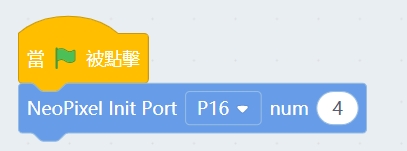

在Meowbit上使用Robotbit的燈條時，需要在Pin 16設置長度為4的WS2812燈條。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit19.png)

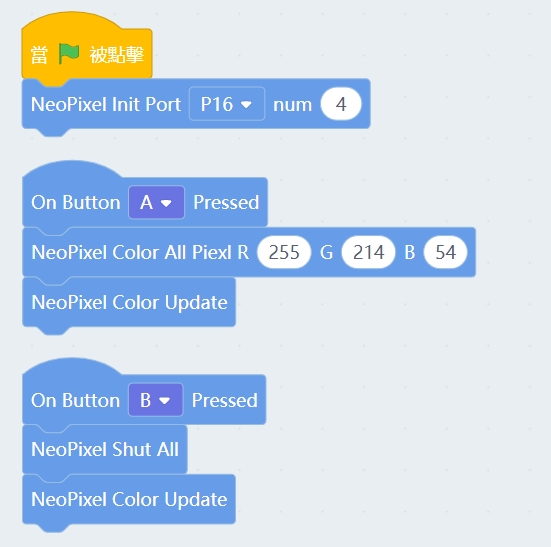

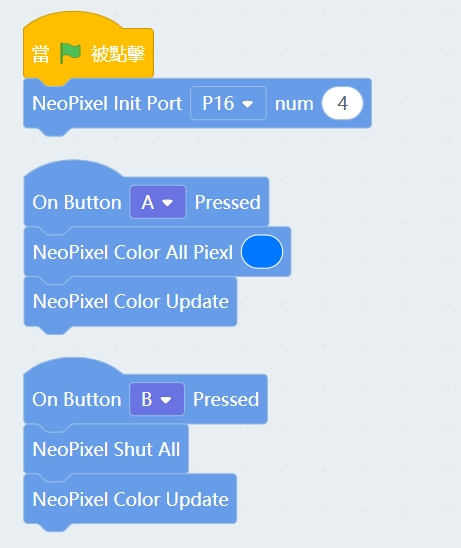

**4顆燈同時點亮**

```
所有燈效都需要運行Color Update這個積木才會顯示。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit20.png)

**使用RGB數值指定顏色**

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit21.png)

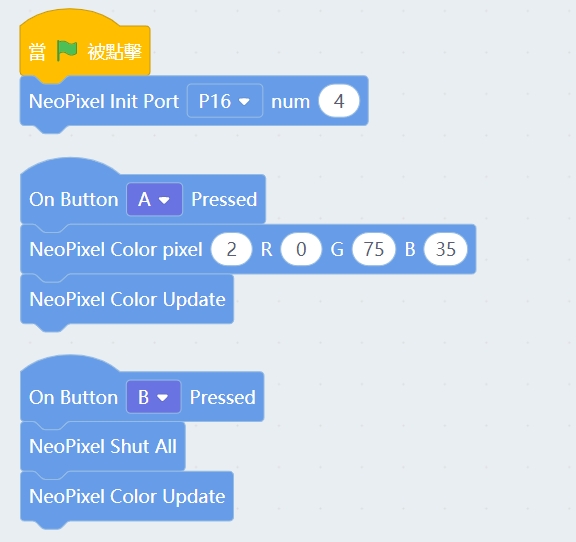

**點亮指定一顆燈**

```
燈條像素數值由0開始數。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit22.png)
