# Meowbit與Robotbit

Meowbit上的引腳其實也支援Kittenbot的其他擴展板，在這節教程我們會看看Meowbit怎樣和Robotbit一起使用。

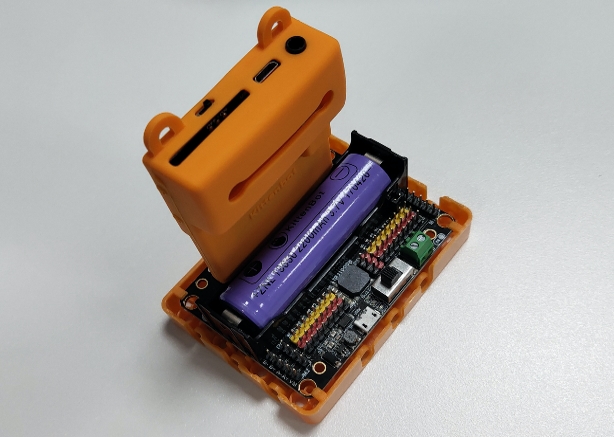

### Robotbit注意事項：

#### 1：電池的正負極一定要正確地安裝

#### 2：將Meowbit插上Robotbit時必須要屏幕向外

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit24.png)

### MakeCode Arcade編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/acbanner2.png)

### Robotbit編程

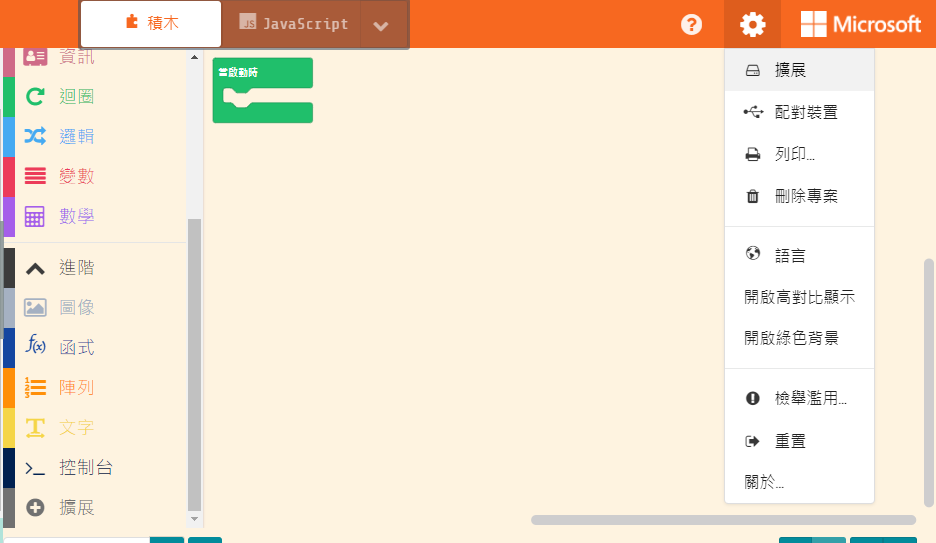

#### 載入Robotbit插件

#### 插件地址：<https://github.com/KittenBot/meow-robotbit>

#### [詳細方法](/programmingplatforms/makecode/kittenbotandmakecode.md)

```

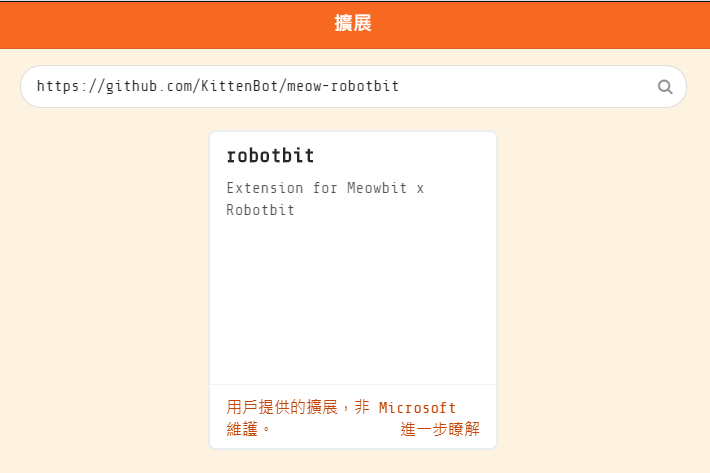

加入Robotbit插件時也會自動一併加入引腳插件。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/sd5.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit1.png)

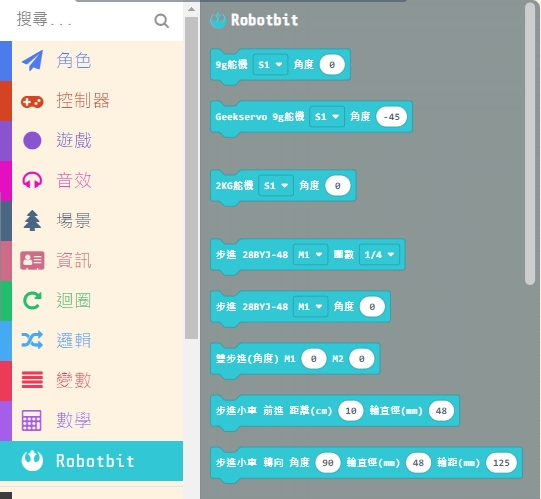

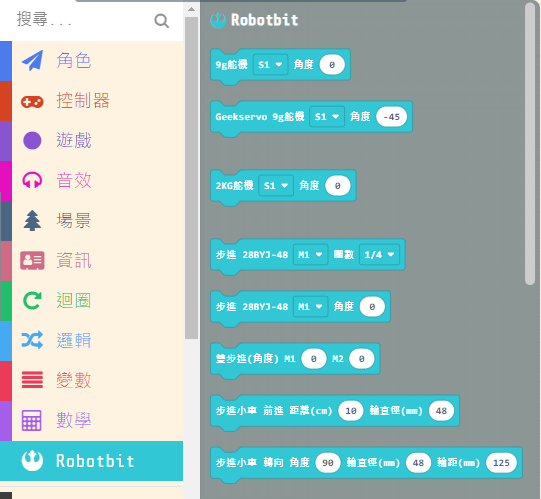

#### Robotbit積木塊

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit2.png)

#### Meowbit與Robotbit編程

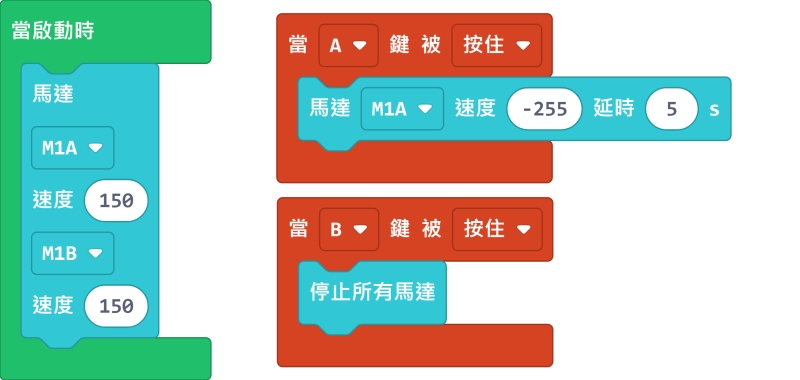

**1. 電機編程**

將電機連接在Robotbit的M1A和M1B上。

![](https://kittenbothk.readthedocs.io/en/latest/_images/motor_wire2.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit5.png)

[參考程式](https://makecode.com/_PtE25Ke69X5h)

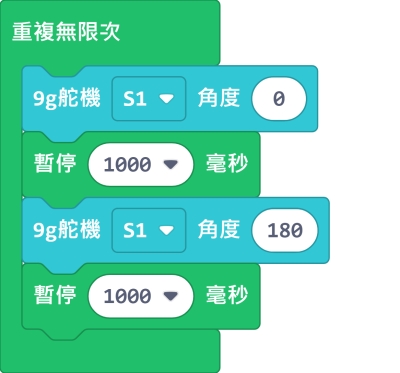

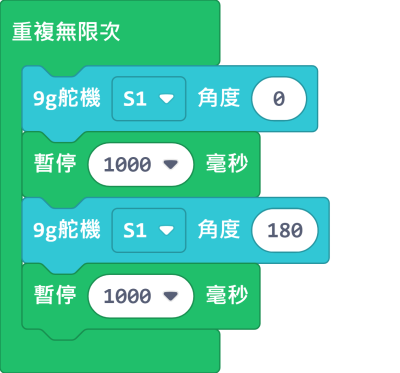

#### 2. 舵機編程

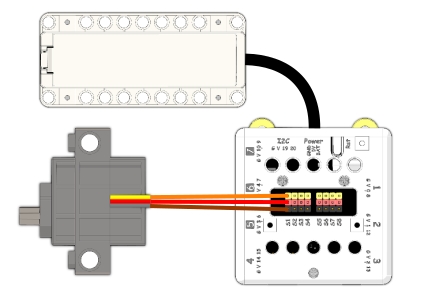

將舵機連接在Robotbit的S1上。

![](https://kittenbothk.readthedocs.io/en/latest/_images/servo_wire2.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit6.png)

[參考程式](https://makecode.com/_FdTVtYRy55kr)

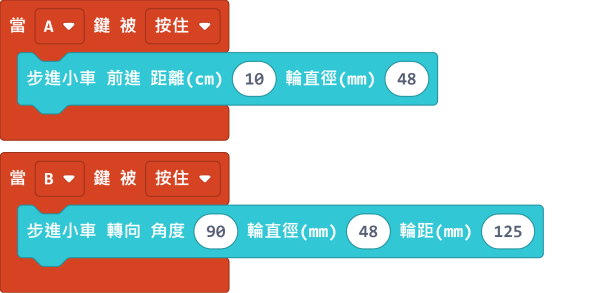

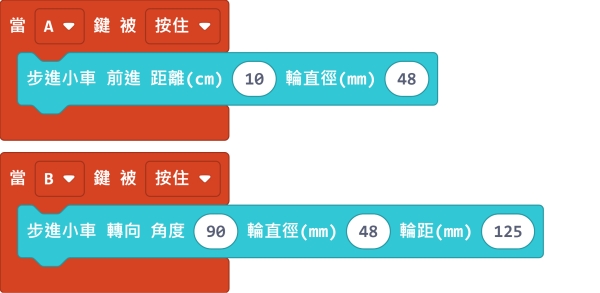

#### 3. 步進電機編程

將步進電機連接到Robotbit的M1和M2上（將紅色電線連接到VM）。

![](https://kittenbothk.readthedocs.io/en/latest/_images/stepper_wire2.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit7.png)

[參考程式](https://makecode.com/_9hk2UwcvsCAo)

### Kittenblock編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/kbbanner11.png)

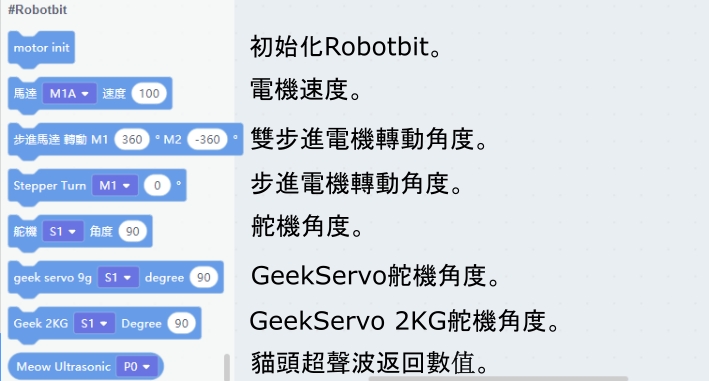

#### Robotbit積木塊

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb15.png)

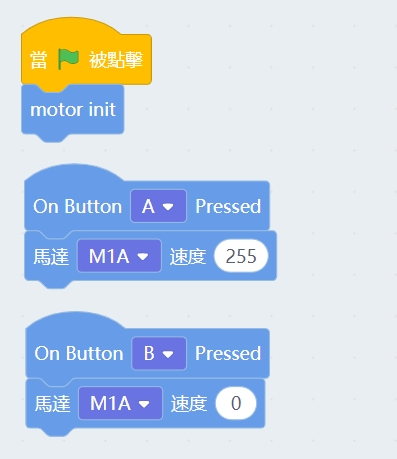

**1. 電機編程**

將電機連接在Robotbit的M1A和M1B上。

![](https://kittenbothk.readthedocs.io/en/latest/_images/motor_wire2.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit16.png)

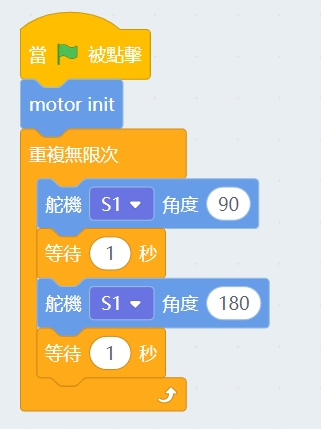

#### 2. 舵機編程

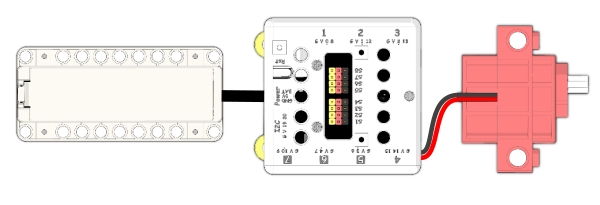

將舵機連接在Robotbit的S1上。

![](https://kittenbothk.readthedocs.io/en/latest/_images/servo_wire2.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit17.png)

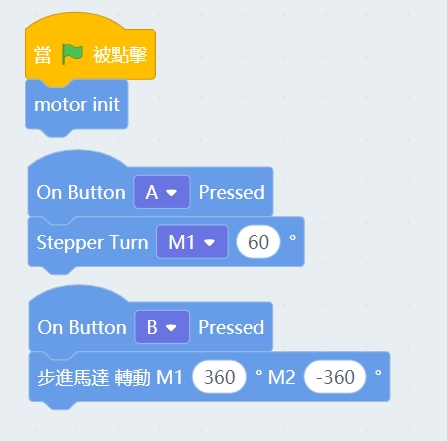

#### 3. 步進電機編程

將步進電機連接到Robotbit的M1和M2上（將紅色電線連接到VM）。

![](https://kittenbothk.readthedocs.io/en/latest/_images/stepper_wire2.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit18.png)

### 疑難排解

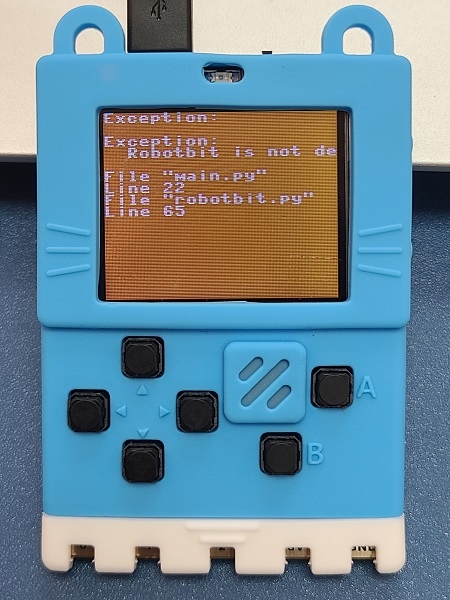

#### 問：我在Kittenblock上載程序到Meowbit之後出現錯誤，畫面顯示 ”Robotbit is not defined”，應該如何解決？

![](https://kittenbothk.readthedocs.io/en/latest/_images/robotbit23.jpg)

#### 答：Robotbit的插件必須要在插上Robotbit時才能使用，只要將Meowbit插上Robotbit然後重啟就可以了。


---
