# Meowbit顯示屏(Kittenblock)

Meowbit在Kittenblock上可以對顯示屏做編程。

### Kittenblock編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/kbbanner11.png)

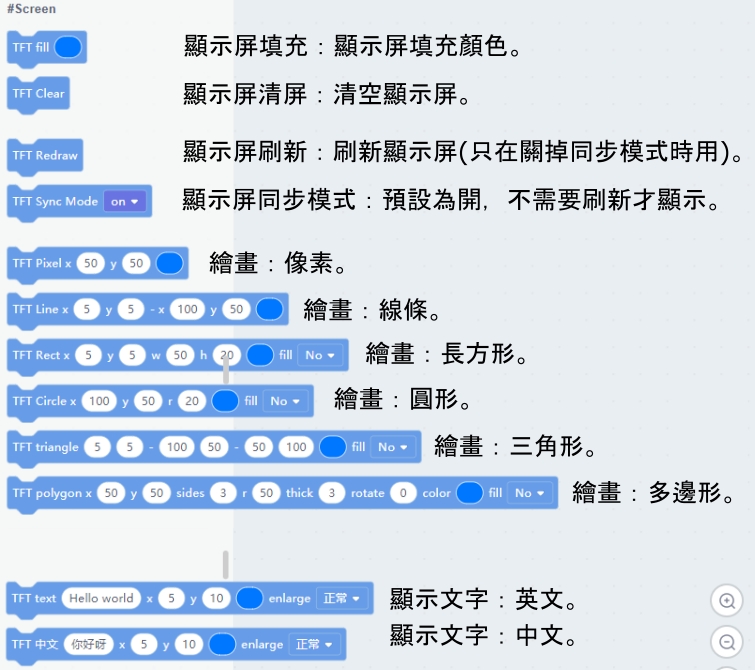

#### 顯示屏積木塊

![](https://kittenbothk.readthedocs.io/en/latest/_images/kb112.png)

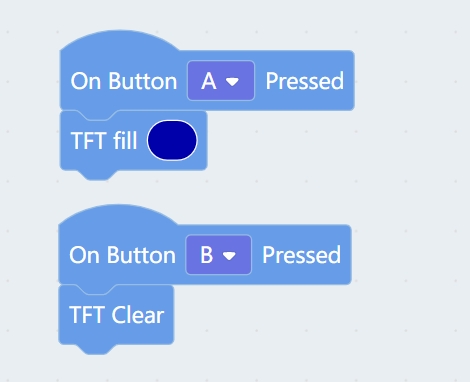

#### 顯示屏顏色和清屏

![](https://kittenbothk.readthedocs.io/en/latest/_images/tft1.png)

按A填滿顏色，按B清屏。

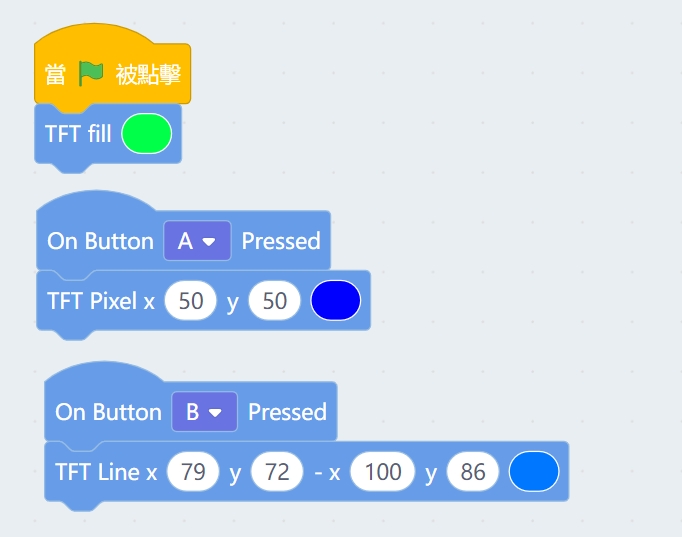

#### 顯示屏畫點、線

```
線的畫法是由第一點開始畫到第二點。例：(79,72)->(100,86)
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/tft2.png)

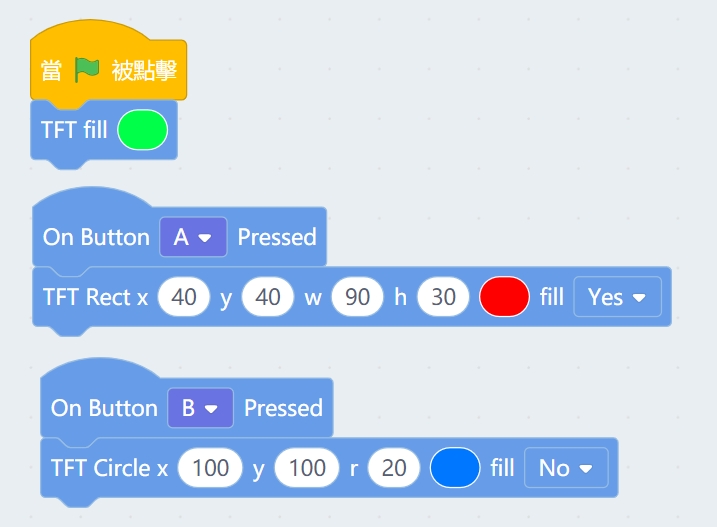

#### 顯示屏畫矩形和圓形

```
矩形的座標是代表矩形的左上角，w和h分別代表長和闊，Fill代表填色。
圓形的座標是代表圓形的圓心，r代表半徑，Fill代表填色。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/tft3.png)

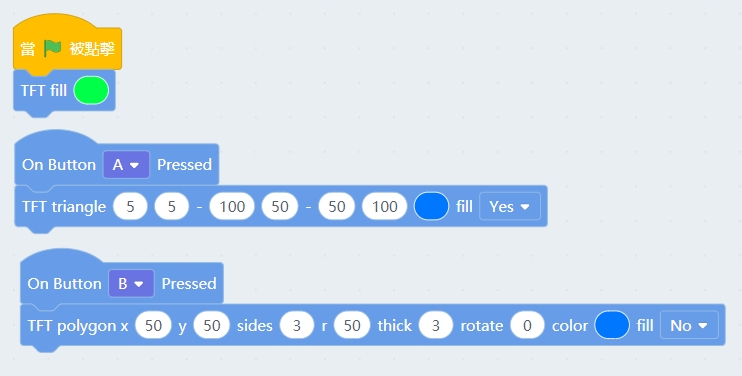

#### 顯示屏畫三角形和多邊形

```
三角形的三個座標分別代表三個角，Fill代表填色。
多邊形的座標代表圖形的正中心，可以指定邊的數量，圖形大小，邊的粗度和圖形旋轉，Fill代表填色。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/tft4.png)

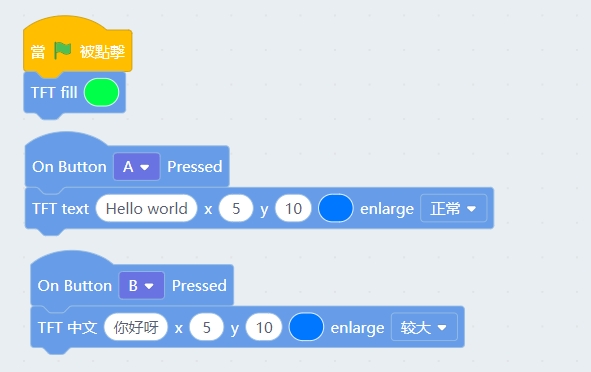

#### 顯示屏寫出文字

```
座標代表文字的左上角。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/tft5.png)


---
