# Nanobit Shield擴展板

![](https://kittenbothk.readthedocs.io/en/latest/_images/512.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/69.png)

Nanobit已經支援市面上大多數Arduino Nano的擴展板，不過KittenBot亦都自家開發了專為Nanobit而設計的Nanobit Shield，不但將Nanobit的引腳引出成為2.54間距的杜邦線感應器接口，亦都為Nanobit帶來電機驅動能力與聲和光的能力，更加為Nanobit提供穩定的鋰電池電源。

### 產品特色

* 體積細小，搭載電機驅動，可以製作更加細小的小車應用
* 板載電池座，可以使用鋰電池。板上亦搭載充放電管理電路，確保電源的穩定和安全性
* 板上設有兼容樂高插孔的結構孔，令機械結構更自由更靈活

### 產品參數

* 呎吋: 78 x 57 x 23 mm
* 重量: 37.5g
* 供電方式: 3.7V(14650鋰電池)/5V(USB)
* 工作電壓: 3.7V
* Vin外接電源: 最大5V 3A
* 板載資源: 2.54間距SVG杜邦連接頭 \*15、蜂鳴器、RGB LED \*2、電機接口 \*4、I2C杜邦接口、5V輸出接口 \*3、電源按鈕、電源重置按鈕、USB充電接口、外部電源輸入接口

### 詳細板載資源圖解

![](https://kittenbothk.readthedocs.io/en/latest/_images/78.png)

### 連接方法

![](https://kittenbothk.readthedocs.io/en/latest/_images/1113.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/121.jpg)

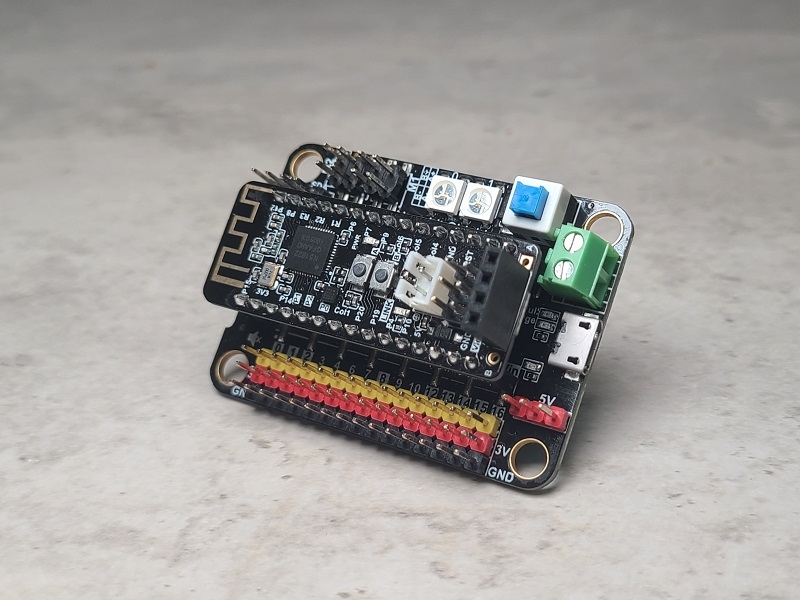

請如圖將Nanobit插在Nanobit Shield上，將Nanobit的VIN對準Nanobit Shield的VIN引腳插到板上，並將引腳完全插入插槽。

### MakeCode編程教學

![](https://kittenbothk.readthedocs.io/en/latest/_images/mcbanner18.png)

#### Nanobit Shield插件地址: <https://github.com/Kittenbot/pxt-nanobit>

#### Nanobit Shield插件積木塊:

![](https://kittenbothk.readthedocs.io/en/latest/_images/87.png)

#### 範例程式: 控制電機

```
注意：Nanobit Shield上的USB插口只是用來充電，要下載程式請使用Nanobit下載器。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/96.png)

#### 範例程式: 板載RGB燈條

```
注意：Nanobit Shield上的USB插口只是用來充電，要下載程式請使用Nanobit下載器。
```

![](https://kittenbothk.readthedocs.io/en/latest/_images/108.png)

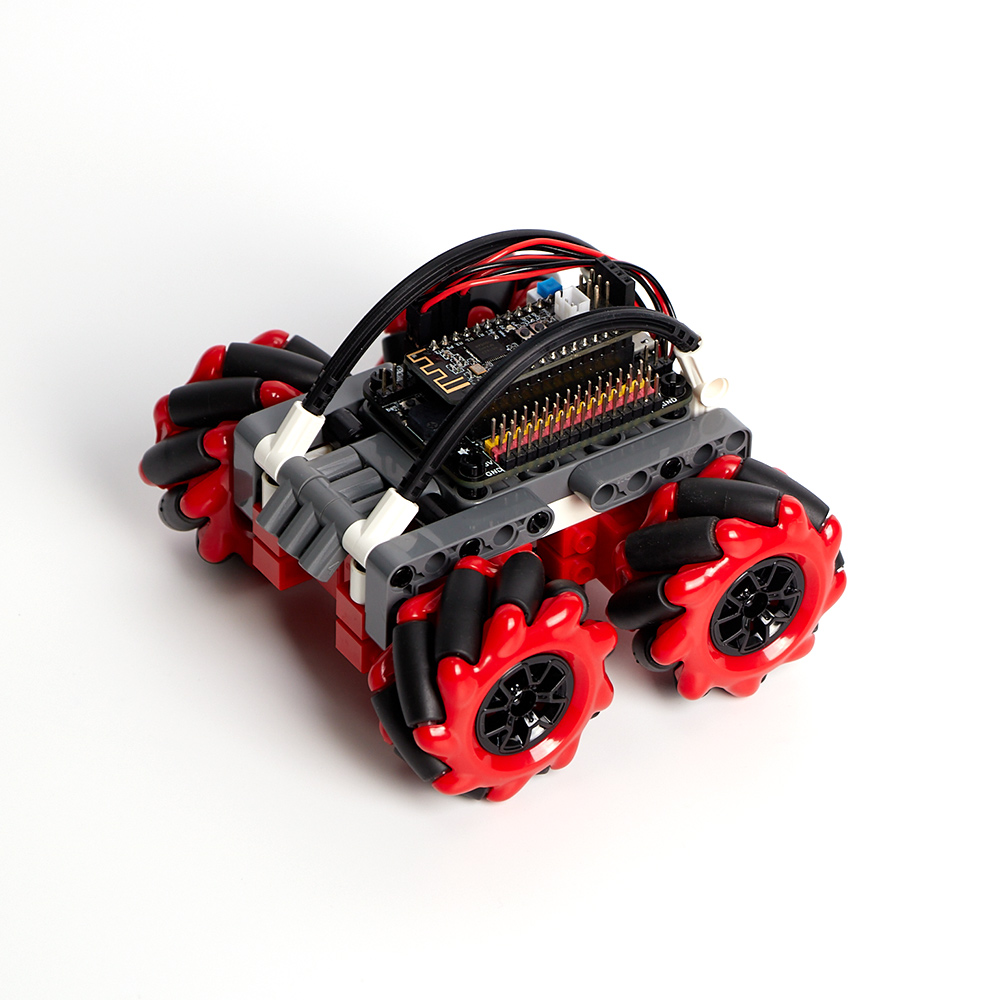

### 應用分享

![](https://kittenbothk.readthedocs.io/en/latest/_images/car11.jpg)

![](https://kittenbothk.readthedocs.io/en/latest/_images/car2.jpg)


---
