# 未來板與ObjectBlocks編程教學

未來板亦都可以支援ObjectBlocks的IoT應用。

### ObjectBlocks平台設置

由於在其他篇章已經有ObjectBlocks平台設置的教學，本篇章將不作重複，請參考以下篇章了解MakerCloud平台的使用方法。

#### [ObjectBlocks平台使用方法](/wifibrick_iot/wifibrick_makecode/wifibrick-yu-koi-1/objectblocks.md)

### 未來板KittenBlock編程教學

#### 連接ObjectBlocks平台

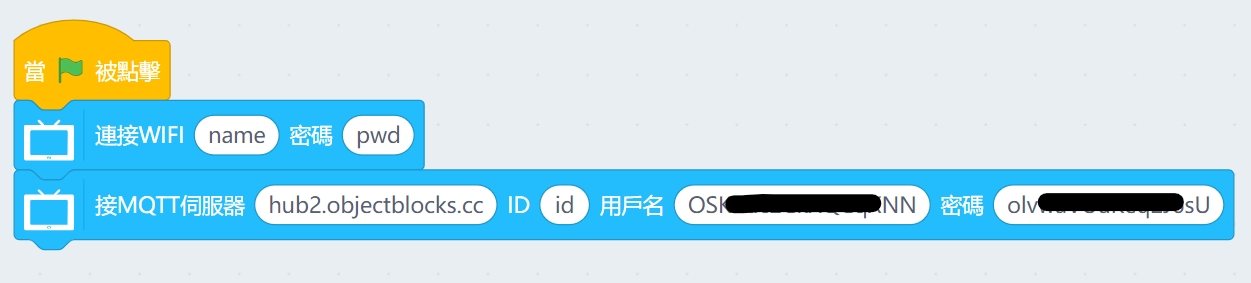

搭建以下程式，連接ObjectBlocks。

* 伺服器網址：hub2.objectblocks.cc
* clientID：隨意填寫
* username：按照ObjectBlocks
* password：按照ObjectBlocks

![](https://kittenbothk.readthedocs.io/en/latest/_images/ob1.png)

#### 發佈信息到ObjectBlocks

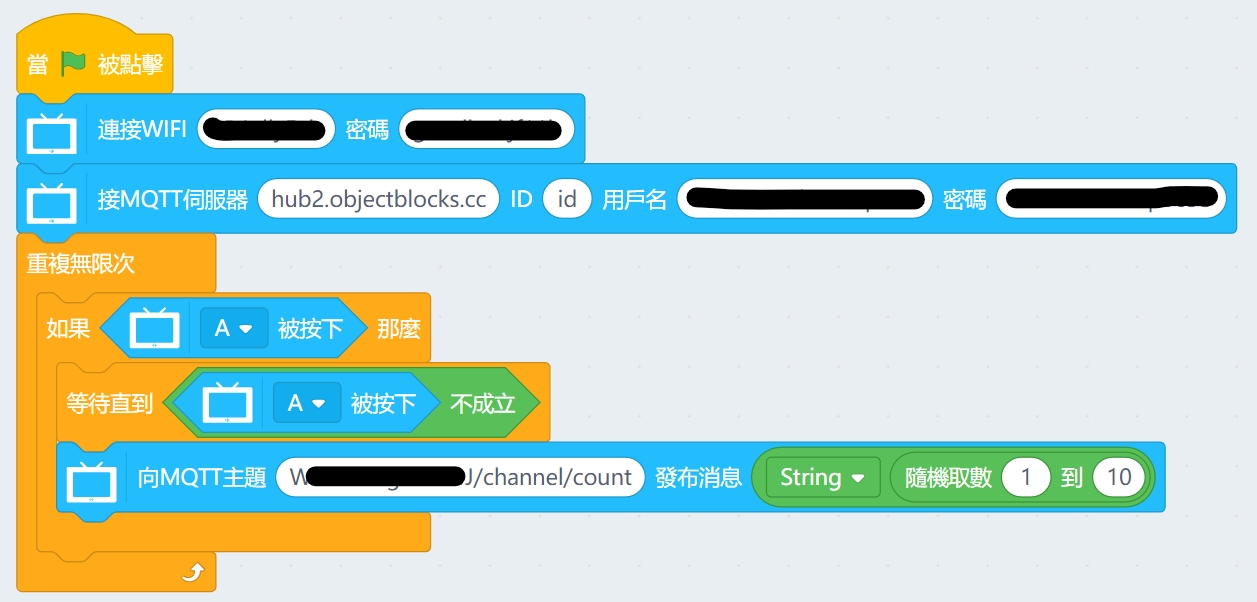

搭建以下程式，按A鍵發布信息到ObjectBlocks。

![](https://kittenbothk.readthedocs.io/en/latest/_images/ob2.png)

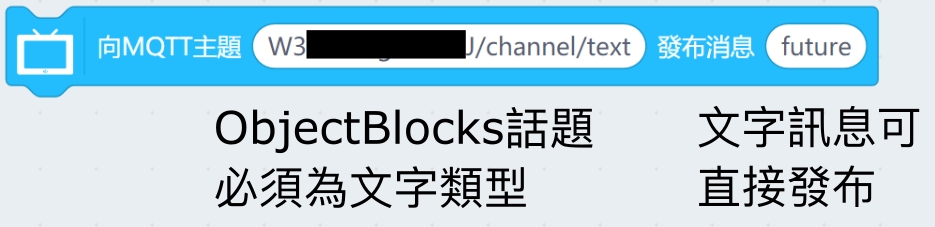

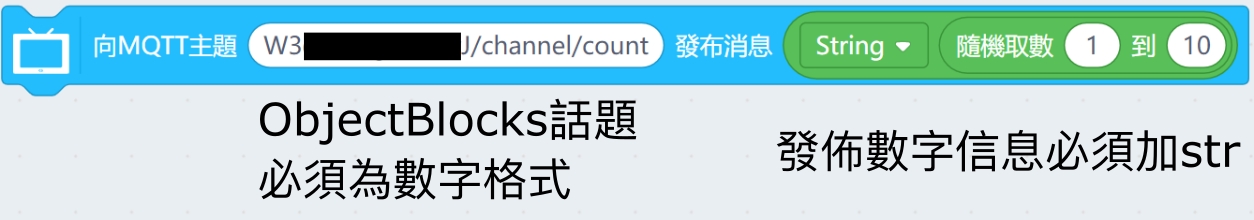

發佈數字或文字訊息有少許分別需要注意。

![](https://kittenbothk.readthedocs.io/en/latest/_images/ob3.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/ob4.png)

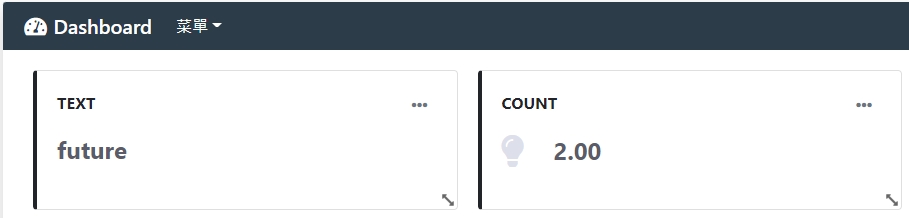

測試程式，在ObjectBlocks儀錶板裡面會看到發布的信息。

![](https://kittenbothk.readthedocs.io/en/latest/_images/ob5.png)

#### 在未來板接收ObjectBlocks平台訊息

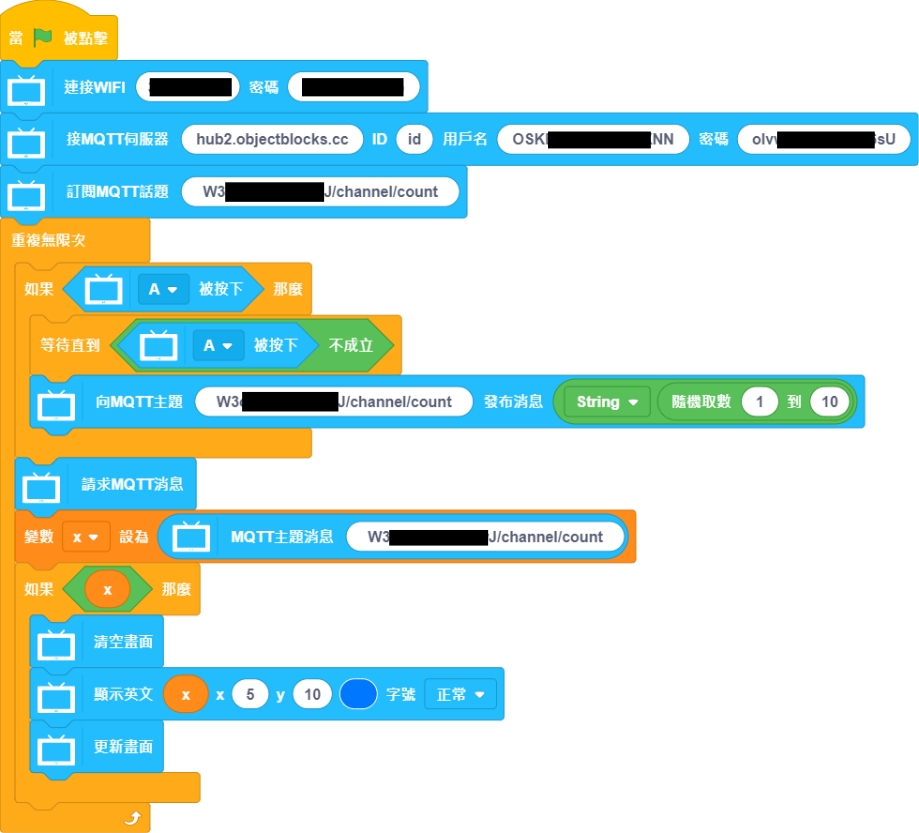

搭建以下程式，讀取ObjectBlocks平台上的信息。

![](https://kittenbothk.readthedocs.io/en/latest/_images/ob6.png)

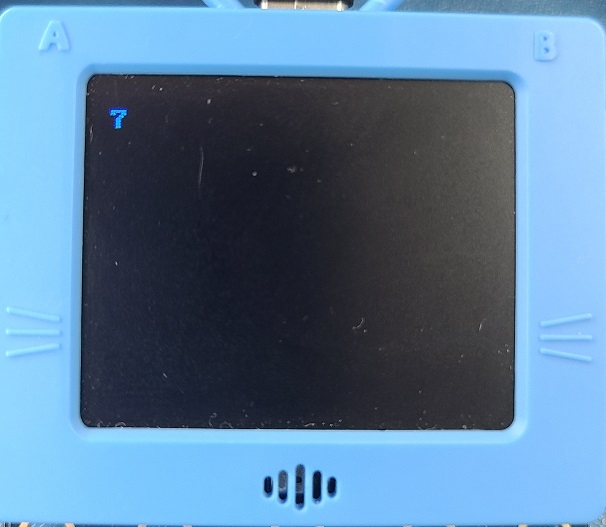

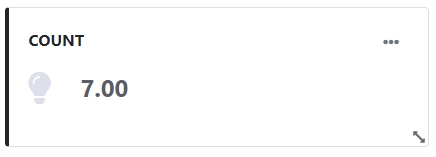

發佈的信息會顯示在ObjectBlocks儀錶板和未來板上。

![](https://kittenbothk.readthedocs.io/en/latest/_images/ob7.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/ob8.jpg)


---
