Sugar 人體紅外感應模組
Last updated
Last updated

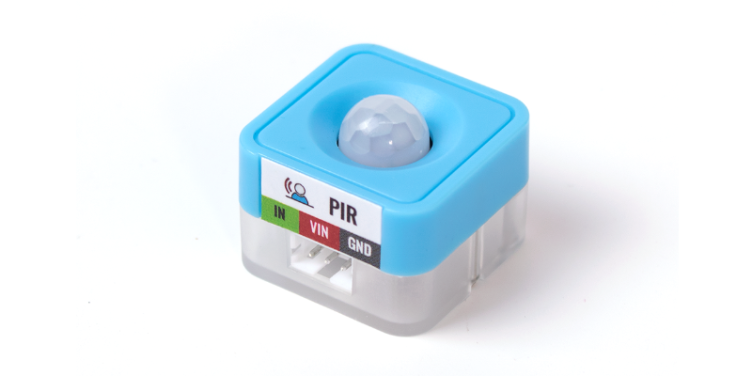

這是一隻人體紅外感應模組,可以感測附近是否有人走過。背後亦設有塑膠積木孔,可以完美配搭塑膠積木使用。
尺寸:24 x 24 x 19 mm
重量:5.6g
訊號:有人靠近時返回0,否則返回1
感測距離:5m

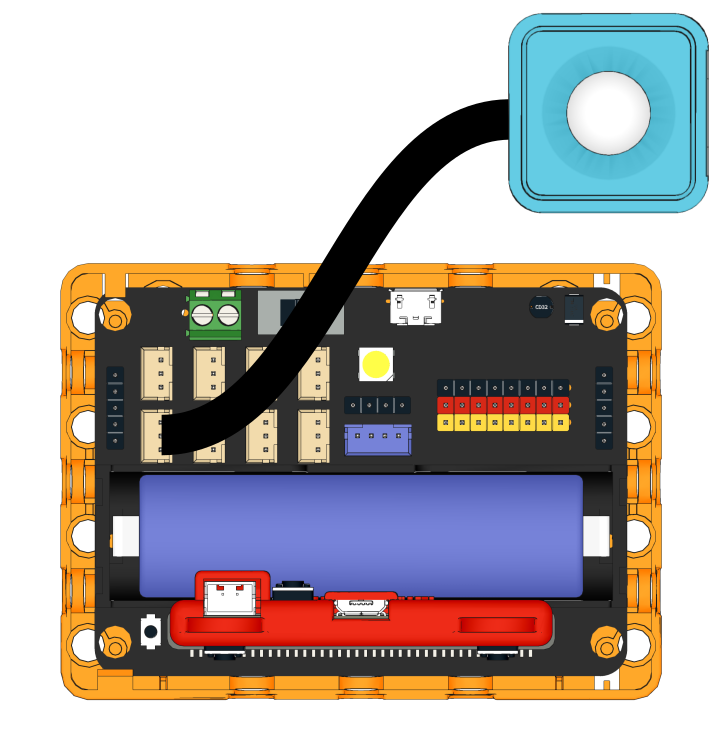

用3Pin 連接線將模組與Robotbit Edu連接起來。
用3Pin 連接線將模組與Robotbit Edu連接起來。
Sugar插件:https://github.com/KittenBot/pxt-sugar
PIR(pin)
value()
value(): 有人靠近時返回0,否則返回1

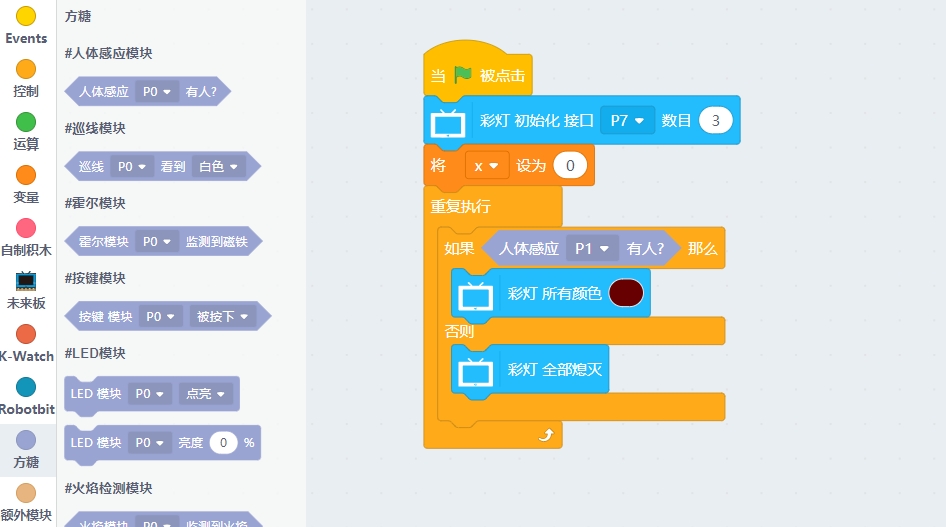

參考程式
from future import *
from sugar import *
pir = PIR('P1')
neopix=NeoPixel("P7",3)
while True:
if pir.value():
neopix.setColorAll((103, 0, 0))
else:
neopix.setColorAll((0,0,0))
