# 未來板與MakerCloud編程快速教學

未來板方便用家設計IoT應用項目，假如搭配MakerCloud使用，可以延伸到IFTTT等的應用。

### MakerCloud平台設置

由於在其他篇章已經有MakerCloud平台的設置教學，本篇章將不會重複，請參考以下篇章了解MakerCloud平台的使用方法。

#### [MakerCloud平台使用方法](/wifibrick_iot/wifibrick_makecode/wifibrick-yu-koi-1/makercloud.md#di-yi-bu-ping-tai-zhun-bei)

### 未來板KittenBlock編程教學

#### 連接MakerCloud

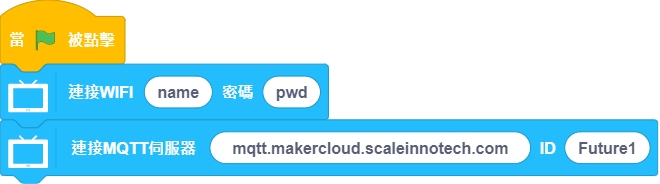

搭建出以下程式，連接到MakerCloud。

* 伺服器網址: mqtt.makercloud.scaleinnotech.com
* ID: 隨意填寫

![](https://kittenbothk.readthedocs.io/en/latest/_images/mc110.png)

#### 發佈信息到MakerCloud

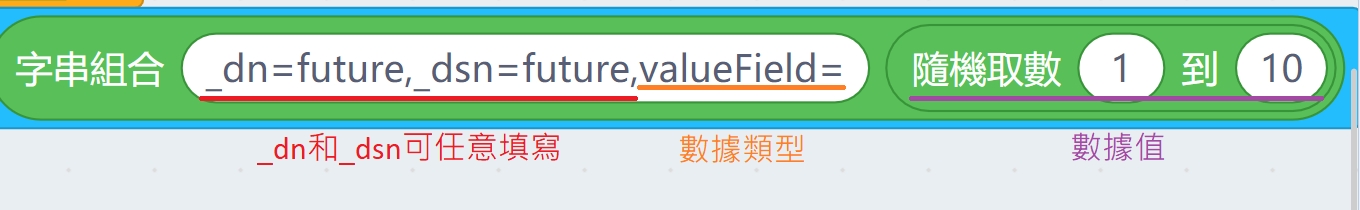

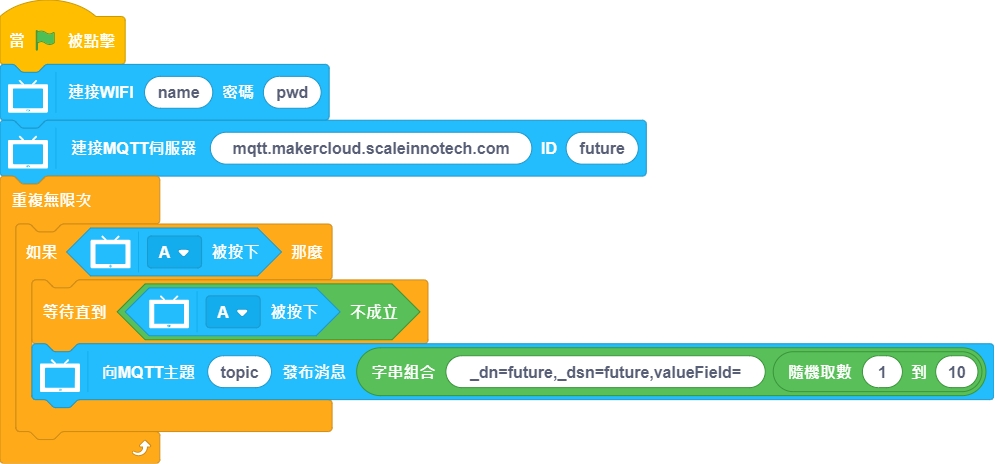

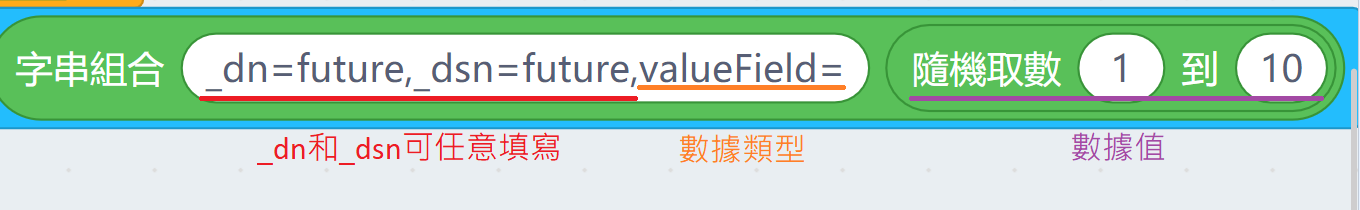

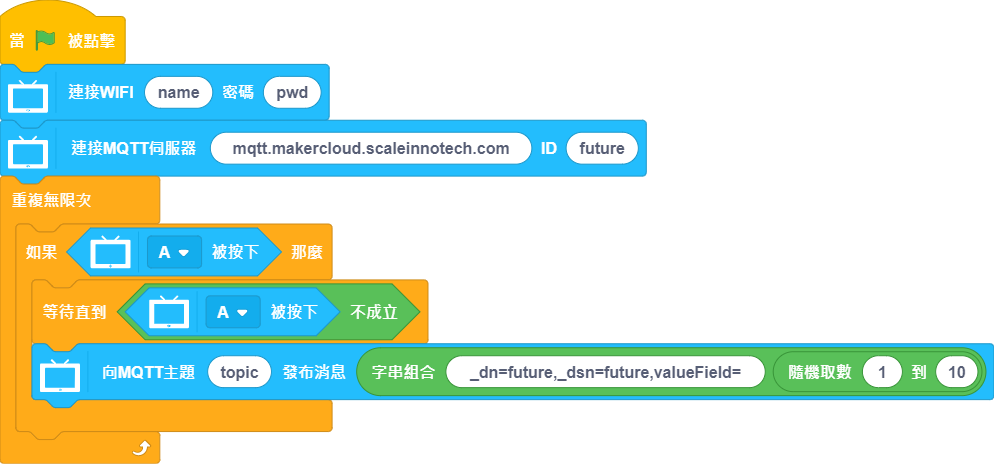

搭建出以下程式，按下A鍵將數據發送到MakerCloud。數據發布的格式請參考下圖。

![](https://kittenbothk.readthedocs.io/en/latest/_images/mc28.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/mc33.png)

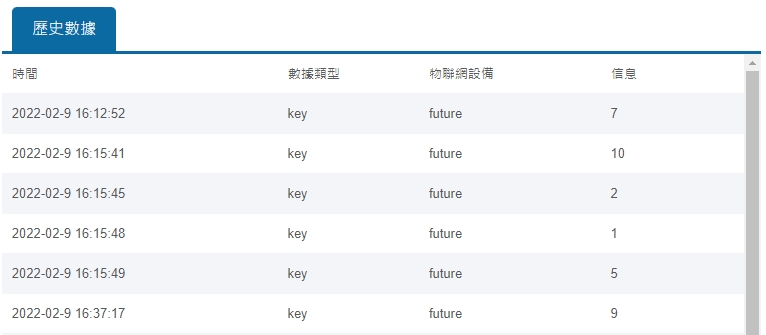

發佈之後檢查MakerCloud，你應該會看到發布的數據。

![](https://kittenbothk.readthedocs.io/en/latest/_images/mc82.png)

#### 讀取MakerCloud信息

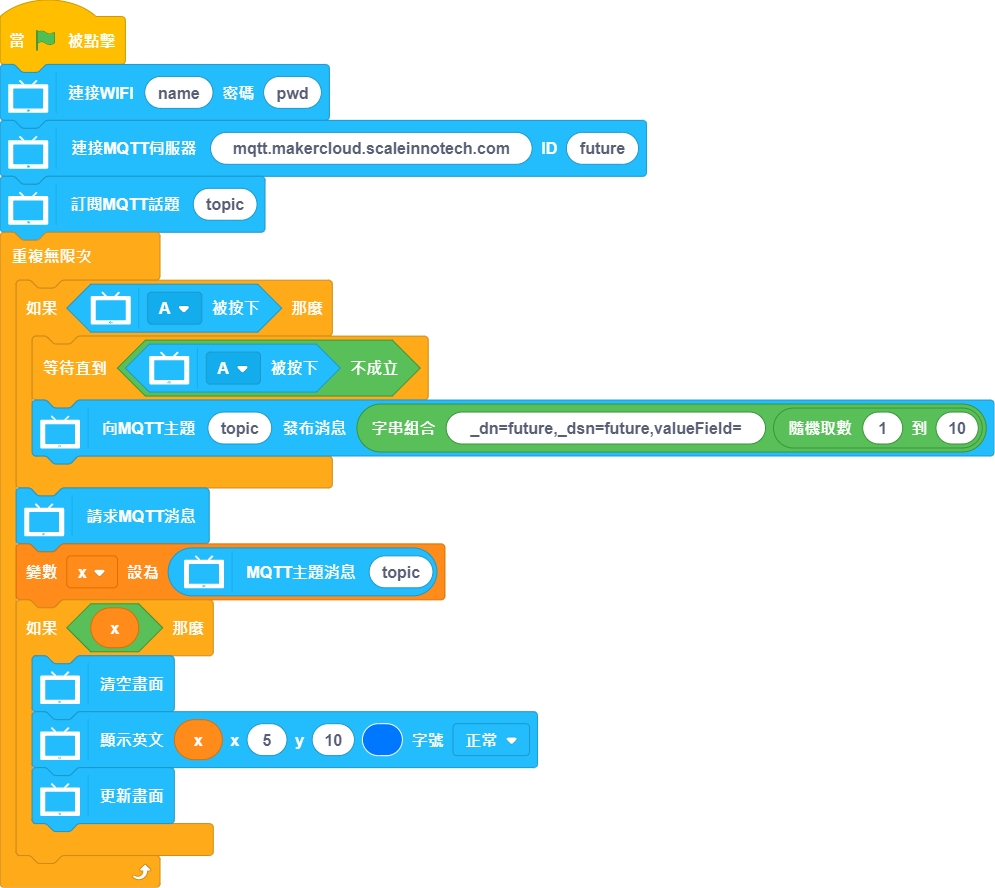

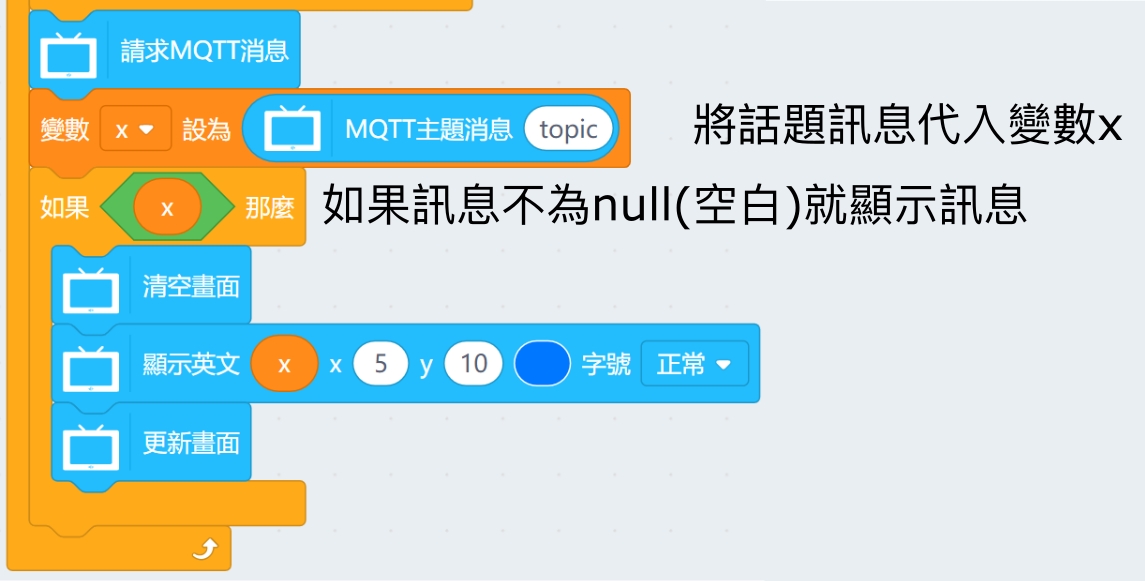

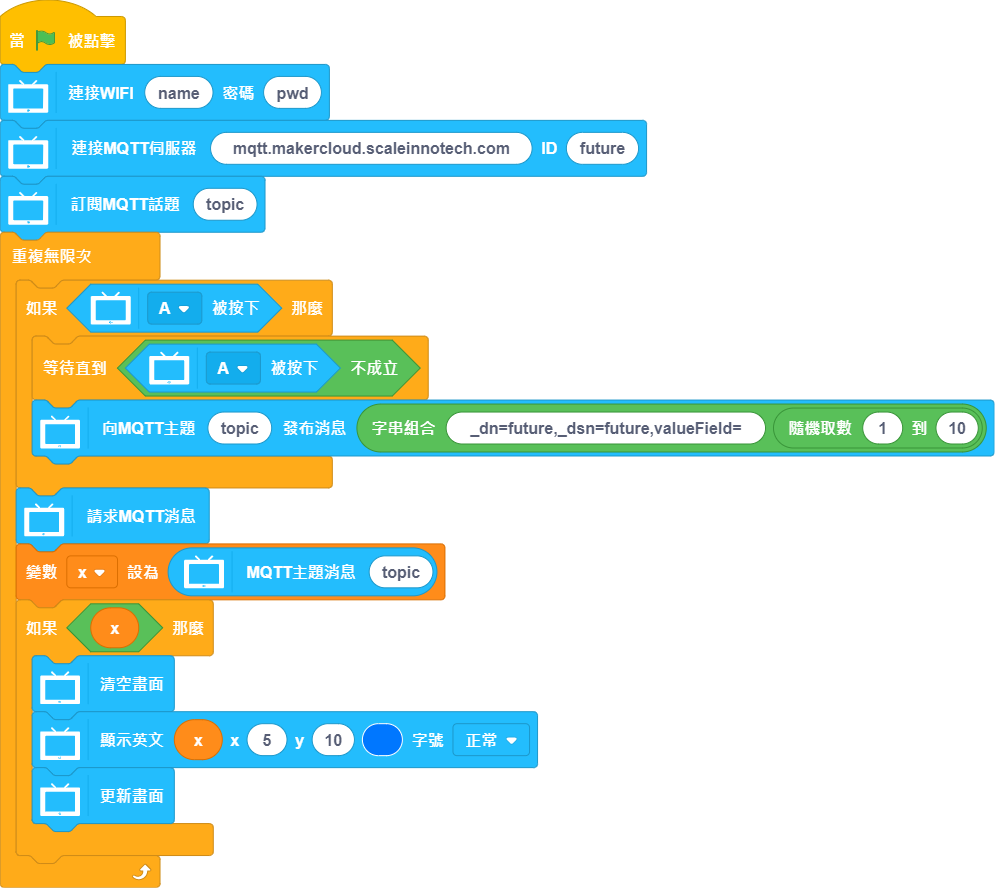

搭建出以下程式，讀取MakerCloud上的數據。

讀取的數據會顯示在屏幕上面。

![](https://kittenbothk.readthedocs.io/en/latest/_images/mc43.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/mc52.png)

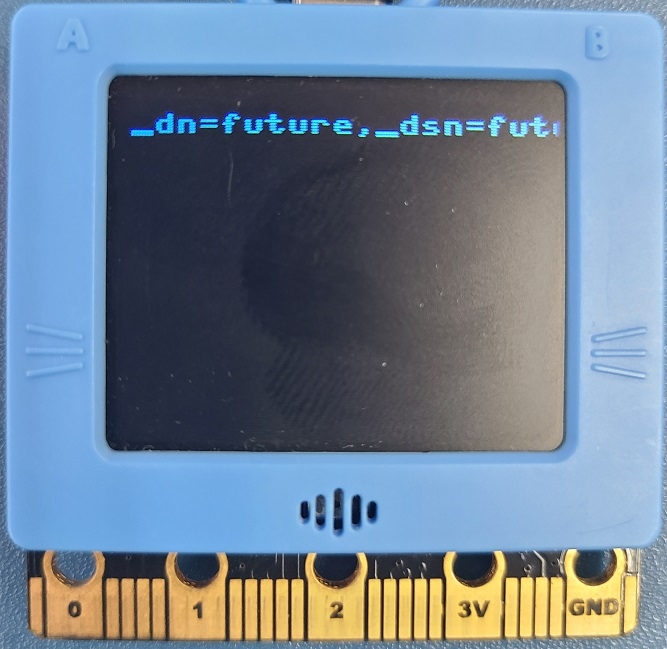

測試程式後你會發現顯示的數據會包含\_dn和\_dsn。

![](https://kittenbothk.readthedocs.io/en/latest/_images/mc6.jpg)

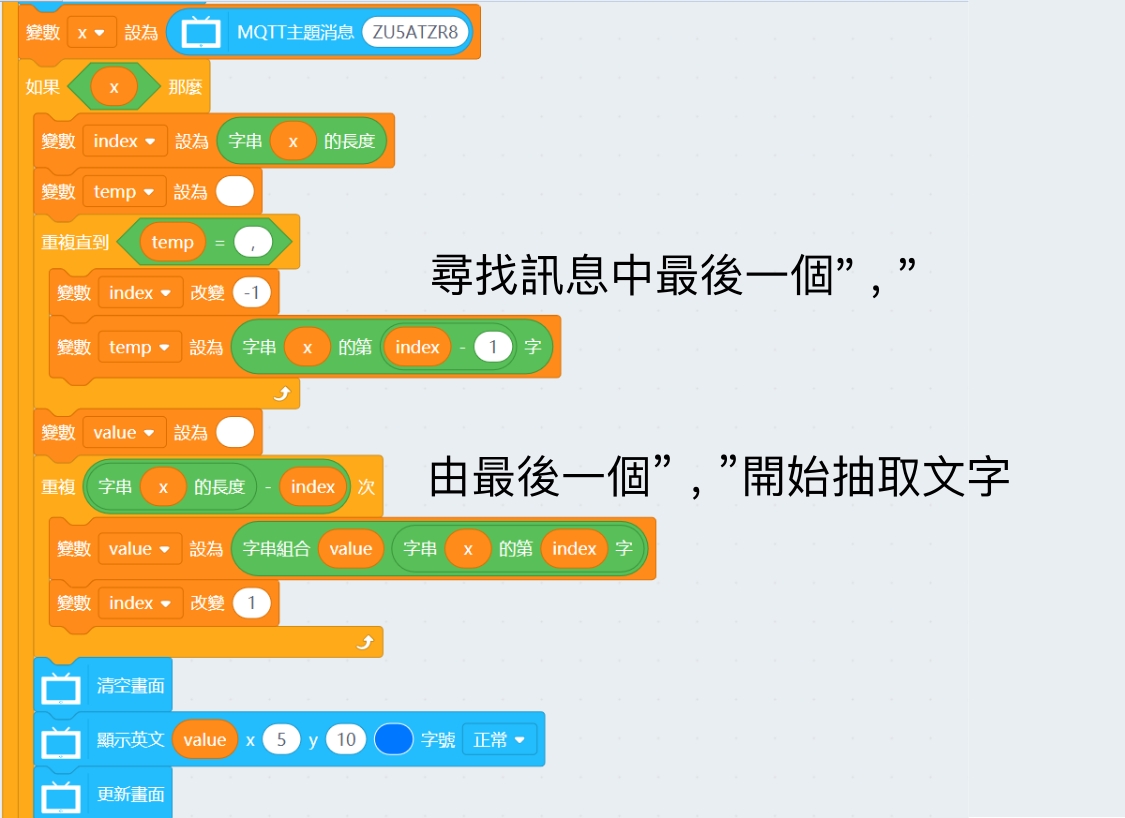

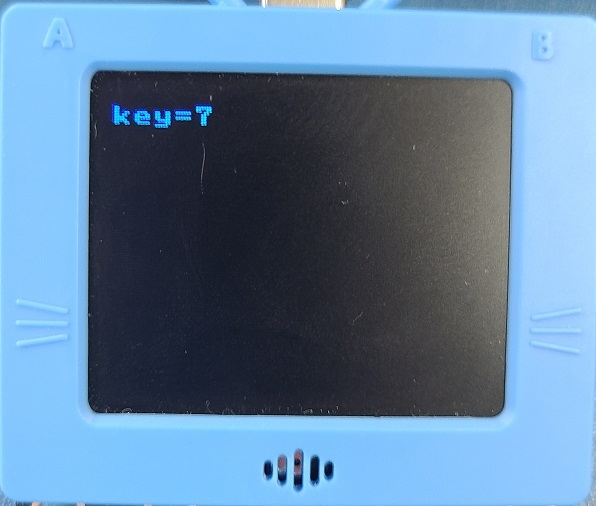

要解決這個問題，您可以參考以下程式，將訊息裏數據的部分單獨地抽取出來。

![](https://kittenbothk.readthedocs.io/en/latest/_images/mc72.png)

![](https://kittenbothk.readthedocs.io/en/latest/_images/mc9.jpg)

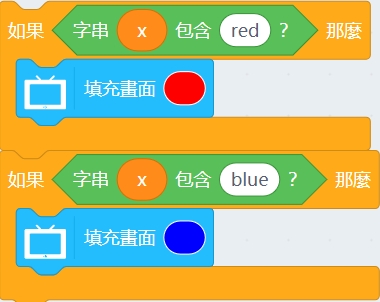

或者你可以使用包含積木來進行條件比較。

![](https://kittenbothk.readthedocs.io/en/latest/_images/mc102.png)


---
