# Robotbit EDU與Robotbit 2.2的分別

Robotbit EDU是Robotbit的新版本，在設計和功能上面均有分別。

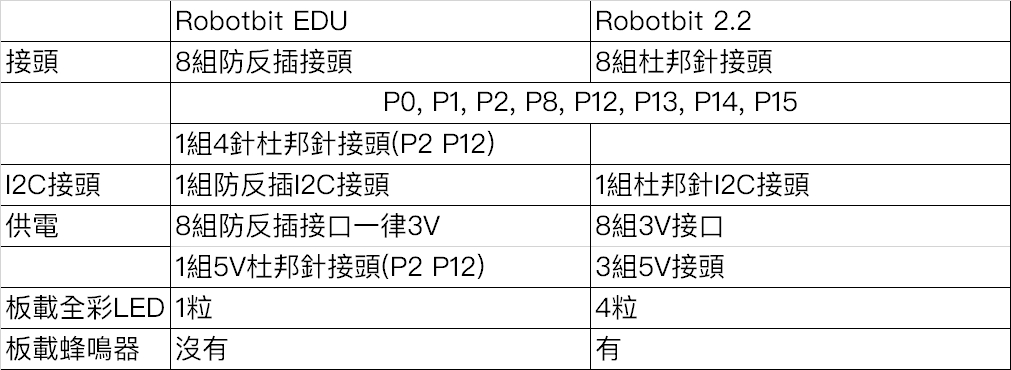

### 兩者分別一覽

![../../\_images/comparison1.png](https://kittenbothk.readthedocs.io/en/latest/_images/comparison1.png)

### 兩者分別詳解

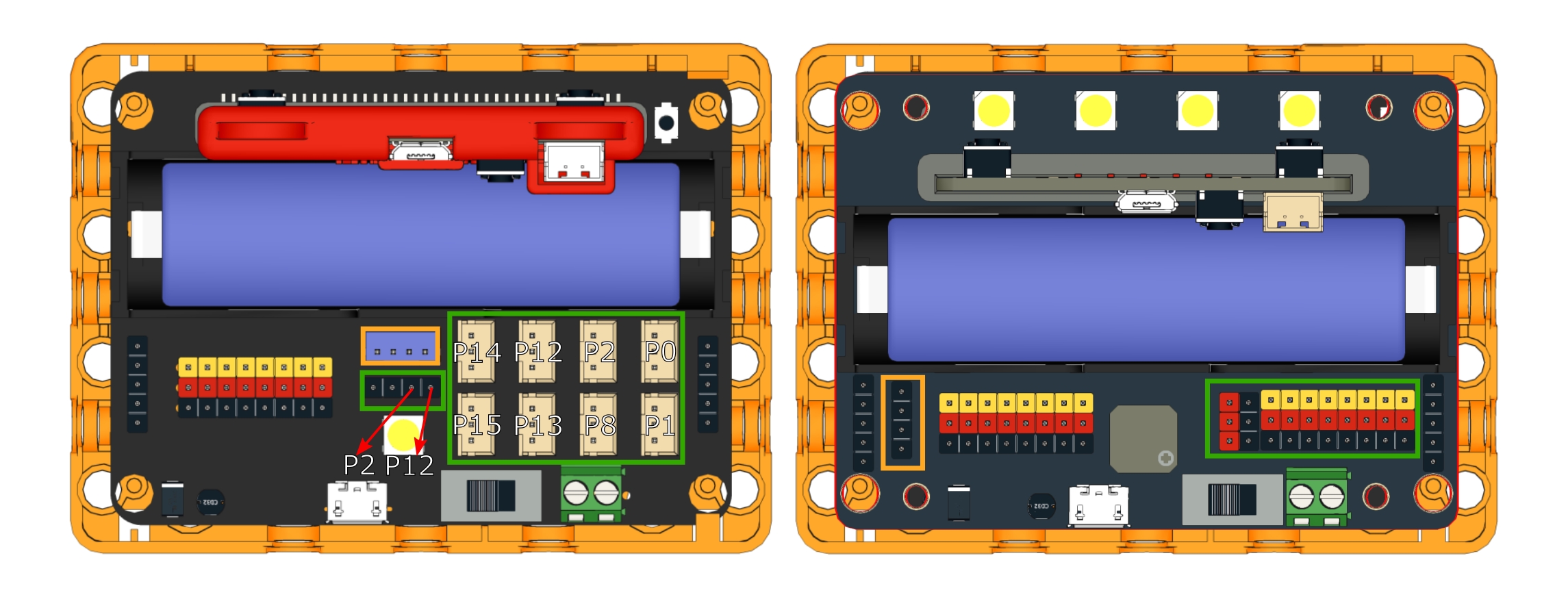

#### 分別1: 接頭

![../../\_images/versus1.png](https://kittenbothk.readthedocs.io/en/latest/_images/versus1.png)

綠色:IO接頭

橙色: I2C接頭

Robotbit EDU主要使用防反插接頭，令接線更簡單。

Robotbit 2.2主要使用杜邦針接頭，令接線更靈活。

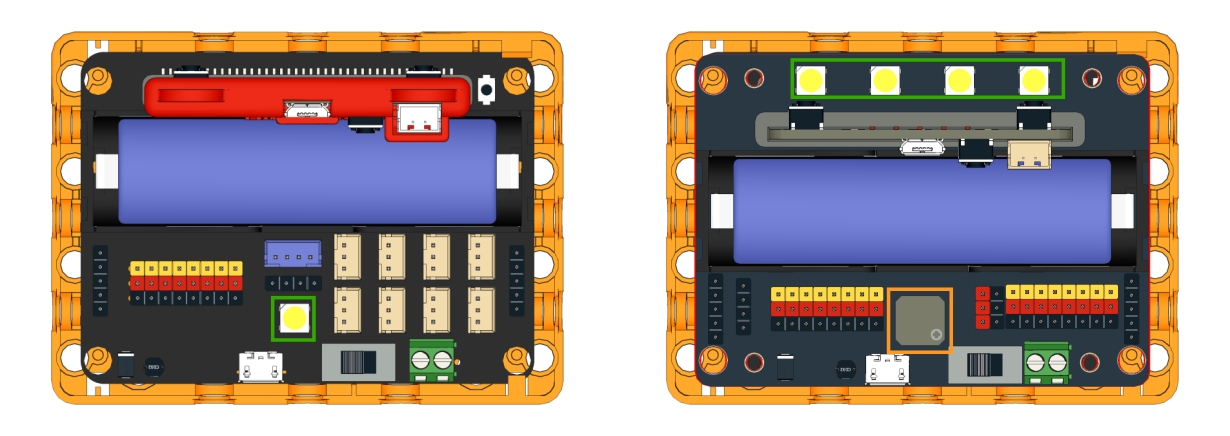

#### 分别2: 板載資源

![../../\_images/versus2.png](https://kittenbothk.readthedocs.io/en/latest/_images/versus2.png)

綠色: 全彩LED

橙色: 蜂鳴器

Robotbit EDU有1粒全彩LED。

Robotbit 2.2有4粒全彩LED和蜂鳴器。


---
