高速直流電機
高速直流電機
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2F130motor_1.png&width=768&dpr=4&quality=100&sign=e6fd26a8&sv=1)

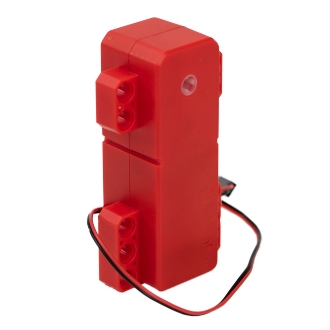

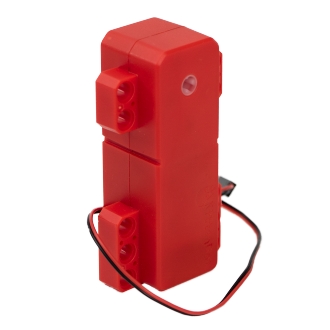

這是一款兼容樂高插孔的高速直流電機,它的轉速是9g電機的3倍。輸出軸為兩組樂高十字孔,主要用在驅動需求快速的機械,最適合製作競速類形的小車。
產品參數
工作電壓:3.3V~6V
額定電壓:4.8V
額定電流:200mA
堵轉電流:1800mA
最高轉速:200rpm
停止扭力:1000g
重量:44g
接口:紅黑線,防反插接口
產品特色:
採用十字沉孔作輸出軸
可以因使用情況自由插入不同長度的十字軸
轉速更高
轉速為GeekMotor 9G的三倍左右
使用碳刷電機
壽命長噪音小

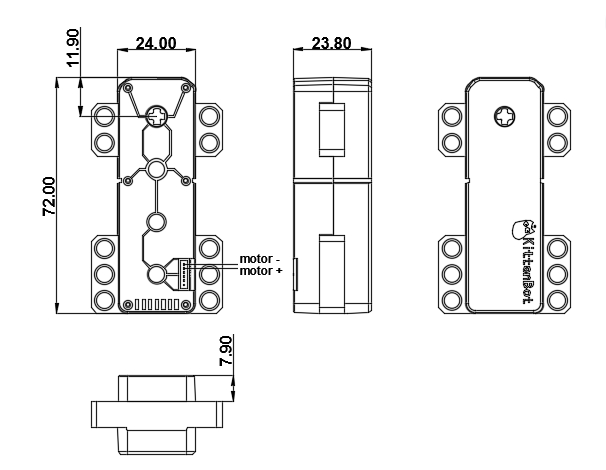

規格尺寸
樂高孔單位:
長度:10孔
闊度:5孔
高度:3孔
輸出軸:樂高十字軸
mm單位:
長度:72mm
闊度:39mm
高度:23.8mm
輸出軸:樂高十字軸
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2F130motor_2.png&width=768&dpr=4&quality=100&sign=91d373ff&sv=1)
接線方法
由於Robotbit的驅動能力最佳,所以本教程以Robobit作例子。當然你亦可以使用Armourbit。
Robotbit

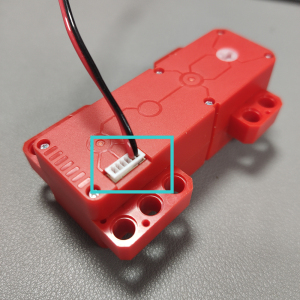

將防反插接口插上電機。
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2F130motor_3.jpeg&width=768&dpr=4&quality=100&sign=ce353833&sv=1)

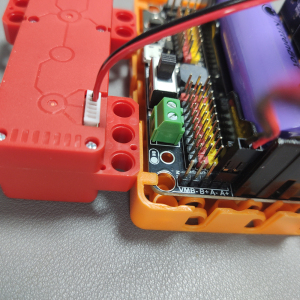

將電機的紅黑線連接至Robotbit的電機接口。
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2F130motor_4.jpeg&width=768&dpr=4&quality=100&sign=172dc40e&sv=1)
MakeCode編程教學
此模組可供Microbit和Meowbit使用。
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2Fmcbanner17.png&width=768&dpr=4&quality=100&sign=a0f7c6f1&sv=1)
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2Facbanner3.png&width=768&dpr=4&quality=100&sign=9e340fce&sv=1)
ArmourBit
加載Powerbrick插件:
在擴展頁直接搜尋Powerbrick (powerbrick已經過微軟認證,可以直接搜尋)
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2Fpowerbrick_search2.png&width=768&dpr=4&quality=100&sign=e57d5bbe&sv=1)
電機積木塊:
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2Fmotorblocks1.png&width=768&dpr=4&quality=100&sign=11037501&sv=1)
電機編程
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2Fmotor1.png&width=768&dpr=4&quality=100&sign=805bff6b&sv=1)
RobotBit

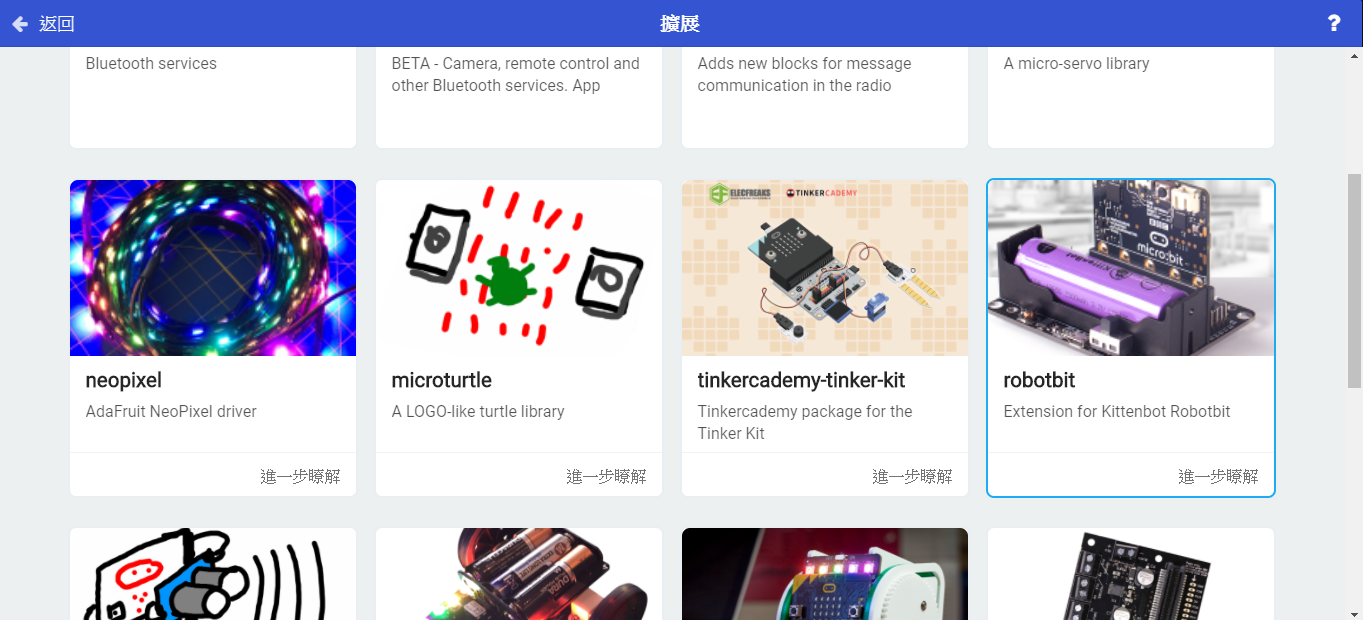

加載Robotbit插件:
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2FrobotbitExtension.png&width=768&dpr=4&quality=100&sign=7821984b&sv=1)
電機積木塊:
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2F2kmotorblocks_rb1.png&width=768&dpr=4&quality=100&sign=637eb669&sv=1)
電機編程
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2F2kmotorcode_rb1.png&width=768&dpr=4&quality=100&sign=8d22ab94&sv=1)
Meowbit:
加載robotbit插件:https://github.com/KittenBot/meow-robotbit
電機積木塊:
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2Fmotorblocks2.png&width=768&dpr=4&quality=100&sign=3811fba6&sv=1)
電機編程
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2F2kmotorcode_meow1.png&width=768&dpr=4&quality=100&sign=ac4d98bc&sv=1)
插件版本與更新
插件可能會不定時推出更新,改進功能。亦有時候我們可能需要轉用舊版插件才可使用某些功能。
詳情請參考: Makecode插件版本更換
KittenBlock編程教學
這教學使用Microbit作例子,每款擴展板/主控板的使用教學請參考相應頁面。
Armourbit
加載PowerBrick插件

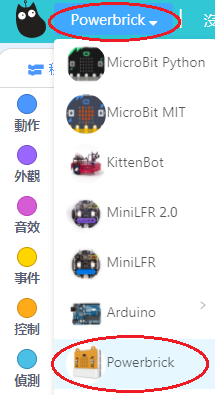

在左上角小貓logo旁邊的硬件欄選擇PowerBrick,加載Microbit與Powerbrick插件。
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2Faddextension3.png&width=768&dpr=4&quality=100&sign=564b9fe8&sv=1)
電機積木塊
![](https://sharinghub.kittenbot.hk/~gitbook/image?url=https%3A%2F%2Fkittenbothk.readthedocs.io%2Fen%2Flatest%2F_images%2Fkbmotorblocks_armourbit1.png&width=768&dpr=4&quality=100&sign=178c81f6&sv=1)
電機編程
Robotbit
加載Robotbit插件
在左上角小貓logo旁邊的硬件欄選擇Microbit,加載Microbit與Robotbit插件。
電機積木塊
電機編程
FAQ
1:為什麼我點擊積木塊沒有反應呢?
首先確保已經連接好Microbit,然後上載韌體再試一試。
